This class is a container for stratigraphic organizations described along a wellbore. More...

#include <StratigraphicOccurrenceInterpretation.h>

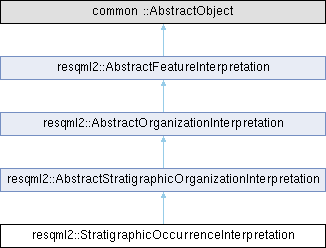

Inheritance diagram for resqml2::StratigraphicOccurrenceInterpretation:

Public Member Functions
virtual	~StratigraphicOccurrenceInterpretation ()=default

virtual void	setStratigraphicColumnRankInterpretation (StratigraphicColumnRankInterpretation *stratiColumnRankInterp)=0

StratigraphicColumnRankInterpretation *	getStratigraphicColumnRankInterpretation () const

virtual common::DataObjectReference	getStratigraphicColumnRankInterpretationDor () const =0

virtual std::string	getXmlTag () const final

Public Member Functions inherited from resqml2::AbstractStratigraphicOrganizationInterpretation
virtual	~AbstractStratigraphicOrganizationInterpretation ()=default

bool	isStratigraphic () const final

std::vector< AbstractGridRepresentation * >	getGridRepresentations () const

unsigned int	getGridRepresentationCount () const

AbstractGridRepresentation *	getGridRepresentation (unsigned int index) const

bool	isAssociatedToGridRepresentation (AbstractGridRepresentation *gridRep) const

Public Member Functions inherited from resqml2::AbstractOrganizationInterpretation
virtual	~AbstractOrganizationInterpretation ()=default

virtual bool	isStructural () const

virtual bool	isRockFluid () const

void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject)

void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject, AbstractFeatureInterpretation *partOf)

void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)

void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_resqml2_0_1::resqml20__ContactSide subjectQualifier, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)

Public Member Functions inherited from resqml2::AbstractFeatureInterpretation
virtual	~AbstractFeatureInterpretation ()=default

common::DataObjectReference	getInterpretedFeatureDor () const

void	setInterpretedFeature (AbstractFeature *feature)

AbstractFeature *	getInterpretedFeature () const

gsoap_resqml2_0_1::resqml20__Domain	initDomain (gsoap_resqml2_0_1::resqml20__Domain defaultDomain) const

gsoap_resqml2_0_1::resqml20__Domain	getDomain () const

std::vector< AbstractRepresentation * >	getRepresentationSet () const

uint64_t	getRepresentationCount () const noexcept

AbstractRepresentation *	getRepresentation (uint64_t index) const

std::vector< GridConnectionSetRepresentation * >	getGridConnectionSetRepresentationSet () const

Static Public Attributes
static const char *	XML_TAG

Detailed Description

This class is a container for stratigraphic organizations described along a wellbore.

Constructor & Destructor Documentation

◆ ~StratigraphicOccurrenceInterpretation()

virtual resqml2::StratigraphicOccurrenceInterpretation::~StratigraphicOccurrenceInterpretation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Member Function Documentation

◆ getStratigraphicColumnRankInterpretation()

StratigraphicColumnRankInterpretation * resqml2::StratigraphicOccurrenceInterpretation::getStratigraphicColumnRankInterpretation ( ) const

Gets the stratigraphic column rank interpretation this stratigraphic occurrence interpretation is an occurrence of.

Returns: nullptr if no stratigraphic column rank interpretation is associated to this stratigraphic occurrence interpretation, else the associated stratigraphic column rank interpretation.

◆ getStratigraphicColumnRankInterpretationDor()

virtual common::DataObjectReference resqml2::StratigraphicOccurrenceInterpretation::getStratigraphicColumnRankInterpretationDor ( ) const

pure virtual

Gets the data object reference of the stratigraphic column rank interpretation this stratigraphic occurrence interpretation is an occurrence of.

Returns: Empty data object reference if no stratigraphic column rank interpretation is associated to this stratigraphic occurrence interpretation, else the data object reference of the associated stratigraphic column rank interpretation.

◆ setStratigraphicColumnRankInterpretation()

virtual void resqml2::StratigraphicOccurrenceInterpretation::setStratigraphicColumnRankInterpretation ( StratigraphicColumnRankInterpretation * stratiColumnRankInterp )

pure virtual

Sets the stratigraphic column rank interpretation this stratigraphic occurrence interpretation is an occurrence of.

Exceptions

std::invalid_argument If stratiColumnRankInterp is nullptr.

Parameters

[in] stratiColumnRankInterp The stratigraphic column rank interpretation this stratigraphic occurrence interpretation is an occurrence of.

Member Data Documentation

◆ XML_TAG

const char* resqml2::StratigraphicOccurrenceInterpretation::XML_TAG

static

The standard XML tag without XML namespace for serializing this data object.

The documentation for this class was generated from the following file:

C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/StratigraphicOccurrenceInterpretation.h
