An abstract stratigraphic organization interpretation is the main class that defines the relationships between the stratigraphic units and provides the stratigraphic hierarchy of the earth. More...

#include <AbstractStratigraphicOrganizationInterpretation.h>

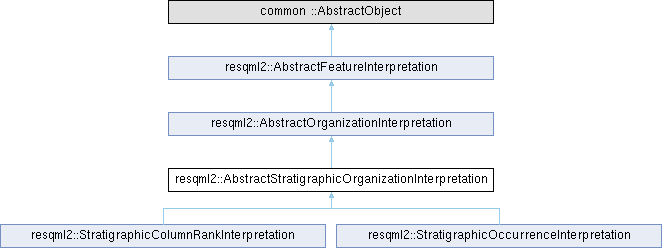

Inheritance diagram for resqml2::AbstractStratigraphicOrganizationInterpretation:

Public Member Functions
virtual	~AbstractStratigraphicOrganizationInterpretation ()=default

bool	isStratigraphic () const final

std::vector< AbstractGridRepresentation * >	getGridRepresentations () const

unsigned int	getGridRepresentationCount () const

AbstractGridRepresentation *	getGridRepresentation (unsigned int index) const

bool	isAssociatedToGridRepresentation (AbstractGridRepresentation *gridRep) const

Public Member Functions inherited from resqml2::AbstractOrganizationInterpretation
virtual	~AbstractOrganizationInterpretation ()=default

virtual bool	isStructural () const

virtual bool	isRockFluid () const

void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject)

void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject, AbstractFeatureInterpretation *partOf)

void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)

void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_resqml2_0_1::resqml20__ContactSide subjectQualifier, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)

Public Member Functions inherited from resqml2::AbstractFeatureInterpretation
virtual	~AbstractFeatureInterpretation ()=default

common::DataObjectReference	getInterpretedFeatureDor () const

void	setInterpretedFeature (AbstractFeature *feature)

AbstractFeature *	getInterpretedFeature () const

gsoap_resqml2_0_1::resqml20__Domain	initDomain (gsoap_resqml2_0_1::resqml20__Domain defaultDomain) const

gsoap_resqml2_0_1::resqml20__Domain	getDomain () const

std::vector< AbstractRepresentation * >	getRepresentationSet () const

uint64_t	getRepresentationCount () const noexcept

AbstractRepresentation *	getRepresentation (uint64_t index) const

std::vector< GridConnectionSetRepresentation * >	getGridConnectionSetRepresentationSet () const

virtual void	loadTargetRelationships () override

Detailed Description

An abstract stratigraphic organization interpretation is the main class that defines the relationships between the stratigraphic units and provides the stratigraphic hierarchy of the earth.

BUSINESS RULE: A stratigraphic organization must be in a ranked order from a lower rank to an upper rank. For example, it is possible to find previous unit containment relationships between several ranks.

Constructor & Destructor Documentation

◆ ~AbstractStratigraphicOrganizationInterpretation()

virtual resqml2::AbstractStratigraphicOrganizationInterpretation::~AbstractStratigraphicOrganizationInterpretation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Member Function Documentation

◆ getGridRepresentation()

AbstractGridRepresentation * resqml2::AbstractStratigraphicOrganizationInterpretation::getGridRepresentation ( unsigned int index ) const

Gets a grid representation associated to this stratigraphic organization interpretation by means of its index.

Exceptions

std::out_of_range If index is out of range.

Parameters

index The index of the grid representation to get in the array of grid representations of this stratigraphic organization interpretations.

Returns: The associated grid representation at index index.

◆ getGridRepresentationCount()

unsigned int resqml2::AbstractStratigraphicOrganizationInterpretation::getGridRepresentationCount ( ) const

Gets the count of grid representations associated to this stratigraphic organization interpretation.

Exceptions

std::range_error If the count of associated grid representations is strictly greater than unsigned int max.

Returns: The count of associated grid representations.

◆ getGridRepresentations()

std::vector< AbstractGridRepresentation * > resqml2::AbstractStratigraphicOrganizationInterpretation::getGridRepresentations ( ) const

Gets the grid representations associated to this stratigraphic organization interpretation.

Returns: A vector of pointers to all the grid representations associated to this stratigraphic organization interpretation.

◆ isAssociatedToGridRepresentation()

bool resqml2::AbstractStratigraphicOrganizationInterpretation::isAssociatedToGridRepresentation ( AbstractGridRepresentation * gridRep ) const

Checks whether a given grid representation is associated to this stratigraphic organization interpretation or not.

Parameters

[in] gridRep The grid representation fro which we want to check its association with this stratigraphic organization interpretation.

Returns: True if gridRep is associated to this stratigraphic organization interpretation or false if it is not.

◆ isStratigraphic()

bool resqml2::AbstractStratigraphicOrganizationInterpretation::isStratigraphic ( ) const

inlinefinalvirtual

Indicates if this instance is a structural one. Needed by SWIG wrappers.

Reimplemented from resqml2::AbstractOrganizationInterpretation.

The documentation for this class was generated from the following file:

C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/AbstractStratigraphicOrganizationInterpretation.h
