resqml2::AbstractOrganizationInterpretation Class Reference

This class defines the behaviour of all RESQML2 organizations. More...

#include <AbstractOrganizationInterpretation.h>

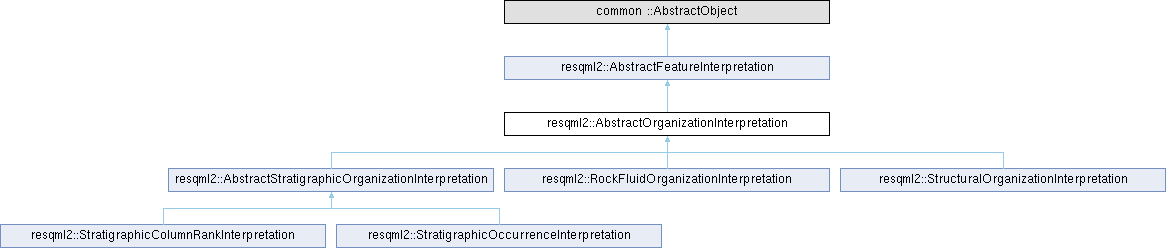

Inheritance diagram for resqml2::AbstractOrganizationInterpretation:

Public Member Functions
virtual	~AbstractOrganizationInterpretation ()=default
virtual bool	isStructural () const
virtual bool	isStratigraphic () const
virtual bool	isRockFluid () const
void	pushBackBinaryContact (AbstractFeatureInterpretation *subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation *directObject)
void	pushBackBinaryContact (AbstractFeatureInterpretation *subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation *directObject, AbstractFeatureInterpretation *partOf)
void	pushBackBinaryContact (AbstractFeatureInterpretation *subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation *directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)
void	pushBackBinaryContact (AbstractFeatureInterpretation *subject, gsoap_resqml2_0_1::resqml20__ContactSide subjectQualifier, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation *directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)
Public Member Functions inherited from resqml2::AbstractFeatureInterpretation
virtual	~AbstractFeatureInterpretation ()=default
common::DataObjectReference	getInterpretedFeatureDor () const
void	setInterpretedFeature (AbstractFeature *feature)
AbstractFeature *	getInterpretedFeature () const
gsoap_resqml2_0_1::resqml20__Domain	initDomain (gsoap_resqml2_0_1::resqml20__Domain defaultDomain) const
gsoap_resqml2_0_1::resqml20__Domain	getDomain () const
std::vector< AbstractRepresentation * >	getRepresentationSet () const
uint64_t	getRepresentationCount () const noexcept
AbstractRepresentation *	getRepresentation (uint64_t index) const
std::vector< GridConnectionSetRepresentation * >	getGridConnectionSetRepresentationSet () const
virtual void	loadTargetRelationships () override

Detailed Description

This class defines the behaviour of all RESQML2 organizations.

Constructor & Destructor Documentation

~AbstractOrganizationInterpretation()

virtual resqml2::AbstractOrganizationInterpretation::~AbstractOrganizationInterpretation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gsoap context.

Member Function Documentation

isRockFluid()

virtual bool resqml2::AbstractOrganizationInterpretation::isRockFluid ( ) const

inlinevirtual

Indicates if this instance is a structural one. Needed by SWIG wrappers.

Reimplemented in resqml2::RockFluidOrganizationInterpretation.

isStratigraphic()

virtual bool resqml2::AbstractOrganizationInterpretation::isStratigraphic ( ) const

inlinevirtual

Indicates if this instance is a structural one. Needed by SWIG wrappers.

Reimplemented in resqml2::AbstractStratigraphicOrganizationInterpretation.

isStructural()

virtual bool resqml2::AbstractOrganizationInterpretation::isStructural ( ) const

inlinevirtual

Indicates if this instance is a structural one. Needed by SWIG wrappers.

Reimplemented in resqml2::StructuralOrganizationInterpretation.

pushBackBinaryContact() [1/4]

void resqml2::AbstractOrganizationInterpretation::pushBackBinaryContact	(	AbstractFeatureInterpretation *	subject,
		gsoap_eml2_3::resqml22__ContactVerb	verb,
		AbstractFeatureInterpretation *	directObject )

Adds a binary contact to this organization interpretation by means of a simple sentence.

Exceptions

std::invalid_argument

If subject or directObject is nullptr.

Parameters

[in]	subject	The subject of the sentence that defines how the contact was constructed.
	verb	The verb of the sentence that defines how the contact was constructed.
[in]	directObject	The direct object of the sentence that defines how the contact was constructed.

pushBackBinaryContact() [2/4]

void resqml2::AbstractOrganizationInterpretation::pushBackBinaryContact	(	AbstractFeatureInterpretation *	subject,
		gsoap_eml2_3::resqml22__ContactVerb	verb,
		AbstractFeatureInterpretation *	directObject,
		AbstractFeatureInterpretation *	partOf )

Adds a binary contact to this organization interpretation by means of a simple sentence.

Exceptions

std::invalid_argument

If subject or directObject is nullptr.

Parameters

[in]	subject	The subject of the sentence that defines how the contact was constructed.
	verb	The verb of the sentence that defines how the contact was constructed.
[in]	directObject	The direct object of the sentence that defines how the contact was constructed.
[in]	partOf	indicates the interpertation this contact is part of

pushBackBinaryContact() [3/4]

void resqml2::AbstractOrganizationInterpretation::pushBackBinaryContact	(	AbstractFeatureInterpretation *	subject,
		gsoap_eml2_3::resqml22__ContactVerb	verb,
		AbstractFeatureInterpretation *	directObject,
		gsoap_resqml2_0_1::resqml20__ContactSide	directObjectQualifier )

Adds a binary contact to the organization interpretation by means of a sentence where the direct object can be qualified.

Exceptions

std::invalid_argument

If subject or directObject is nullptr.

Parameters

[in]	subject	The subject of the sentence that defines how the contact was constructed.
	verb	The verb of the sentence that defines how the contact was constructed.
[in]	directObject	The direct object of the sentence that defines how the contact was constructed.
	directObjectQualifier	The direct object qualifier defining its contact side (footwall, hanging wall, north, south, etc.).

pushBackBinaryContact() [4/4]

void resqml2::AbstractOrganizationInterpretation::pushBackBinaryContact	(	AbstractFeatureInterpretation *	subject,
		gsoap_resqml2_0_1::resqml20__ContactSide	subjectQualifier,
		gsoap_eml2_3::resqml22__ContactVerb	verb,
		AbstractFeatureInterpretation *	directObject,
		gsoap_resqml2_0_1::resqml20__ContactSide	directObjectQualifier )

Adds a binary contact to the organization interpretation by means of a sentence where both the subject and the direct object can be qualified.

Exceptions

std::invalid_argument

If subject or directObject is nullptr.

Parameters

[in]	subject	The subject of the sentence that defines how the contact was constructed.
	subjectQualifier	The subject qualifier defining its contact side (footwall, hanging wall, north, south, etc.).
	verb	The verb of the sentence that defines how the contact was constructed.
[in]	directObject	The direct object of the sentence that defines how the contact was constructed.
	directObjectQualifier	The direct object qualifier defining its contact side (footwall, hanging wall, north, south, etc.).

---

The documentation for this class was generated from the following file:

• C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/AbstractOrganizationInterpretation.h
