resqml2::AbstractFeatureInterpretation Class Reference

Proxy class for an abstract feature interpretation. More...

#include <AbstractFeatureInterpretation.h>

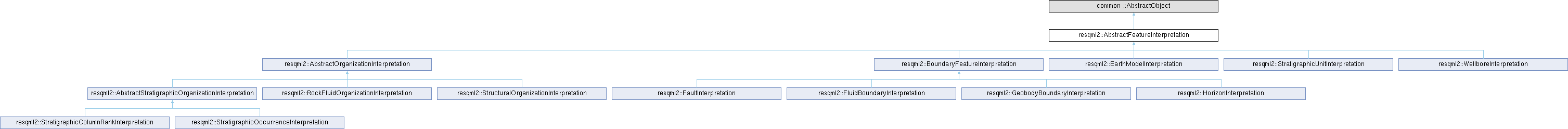

Inheritance diagram for resqml2::AbstractFeatureInterpretation:

Public Member Functions
virtual	~AbstractFeatureInterpretation ()=default
common::DataObjectReference	getInterpretedFeatureDor () const
void	setInterpretedFeature (AbstractFeature *feature)
AbstractFeature *	getInterpretedFeature () const
gsoap_resqml2_0_1::resqml20__Domain	initDomain (gsoap_resqml2_0_1::resqml20__Domain defaultDomain) const
gsoap_resqml2_0_1::resqml20__Domain	getDomain () const
std::vector< AbstractRepresentation * >	getRepresentationSet () const
uint64_t	getRepresentationCount () const noexcept
AbstractRepresentation *	getRepresentation (uint64_t index) const
std::vector< GridConnectionSetRepresentation * >	getGridConnectionSetRepresentationSet () const
virtual void	loadTargetRelationships () override

Detailed Description

Proxy class for an abstract feature interpretation.

Constructor & Destructor Documentation

~AbstractFeatureInterpretation()

virtual resqml2::AbstractFeatureInterpretation::~AbstractFeatureInterpretation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gsoap context.

Member Function Documentation

getDomain()

gsoap_resqml2_0_1::resqml20__Domain resqml2::AbstractFeatureInterpretation::getDomain

(

)

const

Gets the domain of this interpretation.

Returns

The domain of this interpretation.

getGridConnectionSetRepresentationSet()

std::vector< GridConnectionSetRepresentation * > resqml2::AbstractFeatureInterpretation::getGridConnectionSetRepresentationSet

(

)

const

Get all the grid connection set representations which reference this interpretation.

Returns

A vector of pointers to all the grid connection set representations which reference this interpretation.

getInterpretedFeature()

AbstractFeature * resqml2::AbstractFeatureInterpretation::getInterpretedFeature

(

)

const

Gets the feature this instance interprets

Returns

A pointer to the interpreted feature.

getInterpretedFeatureDor()

common::DataObjectReference resqml2::AbstractFeatureInterpretation::getInterpretedFeatureDor

(

)

const

Gets the interpreted feature data object reference.

Returns

Empty data object reference if no interpreted feature is associated to this interpretation. Otherwise return the data objet reference of the associated interpreted feature.

getRepresentation()

AbstractRepresentation * resqml2::AbstractFeatureInterpretation::getRepresentation ( uint64_t index ) const

inline

Gets a particular representation of this interpretation according to its position in the representations ordering.

Exceptions

std::out_of_range

If index is out of the range of the representation set.

Parameters

index

Zero-based index of the representation we look for.

Returns

A pointer to the representation at index.

getRepresentationCount()

uint64_t resqml2::AbstractFeatureInterpretation::getRepresentationCount ( ) const

inlinenoexcept

Get the representation count of this interpretation.

Exceptions

std::range_error

If the representation count is strictly greater than unsigned int max.

Returns

The representation count.

getRepresentationSet()

std::vector< AbstractRepresentation * > resqml2::AbstractFeatureInterpretation::getRepresentationSet

(

)

const

Gets all the representations of this interpretation.

Returns

A vector of all the representations associated to this interpretation.

initDomain()

gsoap_resqml2_0_1::resqml20__Domain resqml2::AbstractFeatureInterpretation::initDomain

(

gsoap_resqml2_0_1::resqml20__Domain

defaultDomain

)

const

Initializes the domain of the interpretation by looking at the local CRS domain of its representations.

Parameters

defaultDomain

The default domain to set when no representation is associated to this interpretation.

Returns

The domain that have been set to this interpretation (either deduced from its representation or defaultDomain).

loadTargetRelationships()

virtual void resqml2::AbstractFeatureInterpretation::loadTargetRelationships ( )

overridevirtual

Loads target relationships

setInterpretedFeature()

void resqml2::AbstractFeatureInterpretation::setInterpretedFeature

(

AbstractFeature *

feature

)

Sets the feature which is interpreted by the current instance.

Exceptions

std::invalid_argument

If feature is null.

Parameters

[in]

feature

The feature to interpret.

---

The documentation for this class was generated from the following file:

• C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/AbstractFeatureInterpretation.h
