Proxy class for a wellbore frame representation. A wellbore frame representation is a representation of a wellbore that is organized along a wellbore trajectory by its MD values. More...

#include <WellboreFrameRepresentation.h>

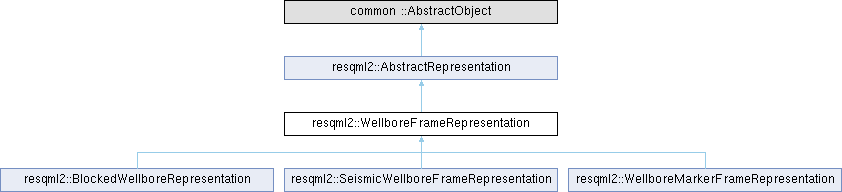

Inheritance diagram for resqml2::WellboreFrameRepresentation:

Public Member Functions
	~WellboreFrameRepresentation ()=default

void	setMdValues (double const mdValues, uint64_t mdValueCount, eml2 ::AbstractHdfProxy proxy=nullptr)

void	setMdValues (double firstMdValue, double incrementMdValue, unsigned int mdValueCount)

bool	areMdValuesRegularlySpaced () const

double	getMdConstantIncrementValue () const

double	getMdFirstValue () const

unsigned int	getMdValuesCount () const

uint64_t	getXyzPointCountOfPatch (unsigned int patchIndex) const override

void	getXyzPointsOfPatch (unsigned int patchIndex, double *xyzPoints) const override

common::AbstractObject::numericalDatatypeEnum	getMdHdfDatatype () const

void	getMdAsDoubleValues (double *values) const

void	getMdAsFloatValues (float *values) const

common::DataObjectReference	getWellboreTrajectoryDor () const

class WellboreTrajectoryRepresentation *	getWellboreTrajectory () const

common::DataObjectReference	getLocalCrsDor (unsigned int patchIndex) const override

common::DataObjectReference	getHdfProxyDor () const final
	Gets the data object reference of the HDF proxy which is used for storing the numerical values of this representation (i.e. its geometry).

uint64_t	getPatchCount () const final

Public Member Functions inherited from resqml2::AbstractRepresentation
virtual	~AbstractRepresentation ()=default

class AbstractLocal3dCrs *	getLocalCrs (unsigned int patchIndex) const

void	setTimeIndex (uint64_t timeIndex, eml2 ::TimeSeries *timeSeries)

uint64_t	getTimeIndex () const
	Gets the time index of this representation in the associated TimeSeries. Be sure to first check that a TimeSeries is associated this representation by calling getTimeSeriesDor or getTimeSeries;.

eml2::TimeSeries *	getTimeSeries () const

common::DataObjectReference	getTimeSeriesDor () const
	Gets the data object reference of the TimeSeries containing the time of this representation at a particular index. For now, this method only look for a TimeSeries at the first patch containing a point geometry.

std::vector< class AbstractProperty * >	getPropertySet () const

void	setInterpretation (class AbstractFeatureInterpretation *interp)

class AbstractFeatureInterpretation *	getInterpretation () const

common::DataObjectReference	getInterpretationDor () const

uint64_t	getXyzPointCountOfAllPatches () const

void	getXyzPointsOfPatchInGlobalCrs (unsigned int patchIndex, double *xyzPoints) const
	Gets all the xyz points of a particular patch of this representation. xyz points are given in the global CRS.

void	getXyzPointsOfAllPatches (double *xyzPoints) const
	Gets all the xyz points of all patches of this representation. xyz points are given in the local CRS.

bool	isInSingleLocalCrs () const

bool	isInSingleGlobalCrs () const

void	getXyzPointsOfAllPatchesInGlobalCrs (double *xyzPoints) const

AbstractRepresentation *	getSeismicSupportOfPatch (const unsigned int &patchIndex) const

std::set< AbstractRepresentation * >	getAllSeismicSupport () const

void	pushBackIntoRepresentationSet (class RepresentationSetRepresentation *repSet)

void	addSeismic3dCoordinatesToPatch (unsigned int patchIndex, double inlines, double crosslines, uint64_t pointCount, resqml2 ::AbstractRepresentation seismicSupport, eml2 ::AbstractHdfProxy proxy)

void	addSeismic3dCoordinatesToPatch (unsigned int patchIndex, double startInline, double incrInline, unsigned int countInline, double startCrossline, double incrCrossline, unsigned int countCrossline, resqml2 ::AbstractRepresentation *seismicSupport)

void	addSeismic2dCoordinatesToPatch (unsigned int patchIndex, double lineAbscissa, resqml2 ::AbstractRepresentation seismicSupport, eml2 ::AbstractHdfProxy *proxy)

void	getSeismicLineAbscissaOfPointsOfPatch (unsigned int patchIndex, double *values) const

void	getInlinesOfPointsOfPatch (unsigned int patchIndex, double *values) const

void	getCrosslinesOfPointsOfPatch (unsigned int patchIndex, double *values) const

Additional Inherited Members
Static Public Attributes inherited from resqml2::AbstractRepresentation
static constexpr char const *	XML_TAG = "AbstractRepresentation"

Detailed Description

Proxy class for a wellbore frame representation. A wellbore frame representation is a representation of a wellbore that is organized along a wellbore trajectory by its MD values.

RESQML uses MD values to associate properties on points and to organize association of properties on intervals between MD points.

Constructor & Destructor Documentation

◆ ~WellboreFrameRepresentation()

resqml2::WellboreFrameRepresentation::~WellboreFrameRepresentation ( )

default

Destructor does nothing since the memory is managed by the gSOAP context.

Member Function Documentation

◆ areMdValuesRegularlySpaced()

bool resqml2::WellboreFrameRepresentation::areMdValuesRegularlySpaced ( ) const

Indicates either the MDs are regularly spaced or not (useful for optimization). Does not check the regularity if the writer has used a generic array to store regular MDs.

Exceptions

std::logic_error If the underlying gSOAP instance is not a RESQML2.0 one.

Returns: True if MD values are regularly spaced, false if not.

◆ getHdfProxyDor()

common::DataObjectReference resqml2::WellboreFrameRepresentation::getHdfProxyDor ( ) const

finalvirtual

Gets the data object reference of the HDF proxy which is used for storing the numerical values of this representation (i.e. its geometry).

Exceptions

std::logic_error	If the underlying gSOAP instance is not a RESQML v2.0 or RESQML v2.0 one.
std::logic_error	If this representation is partial.

Returns: The data object reference of the HDF proxy used for storing the geometry, or empty data object reference if it fails.

Implements resqml2::AbstractRepresentation.

◆ getLocalCrsDor()

common::DataObjectReference resqml2::WellboreFrameRepresentation::getLocalCrsDor ( unsigned int patchIndex ) const

overridevirtual

Gets the data object reference of the local 3d CRS associated to a given patch of this representation. This local CRS is where the point ordinals are given.

Exceptions

std::out_of_range If patchIndex is out of range.

Parameters

patchIndex Zero-based index of the patch for which we look for the local CRS.

Returns: Empty data object reference if it fails, else the data object reference of the local CRS associated to the patchIndex patch.

Reimplemented from resqml2::AbstractRepresentation.

◆ getMdAsDoubleValues()

void resqml2::WellboreFrameRepresentation::getMdAsDoubleValues ( double * values ) const

Gets all the MD values of this instance which are supposed to be double ones.

Exceptions

std::logic_error	If the underlying gSOAP instance is not a RESQML2.0 one.
std::logic_error	If the MD values are neither stored in a HDF5 double array nor in a double lattice array.
std::invalid_argument	If the MD values are stored in a HDF5 double array and the HDF proxy is missing.

Parameters

[out] values A buffer to receive the MD values ordered from top to bottom of the wellbore trajectory. It must be preallocated with size of getMdValuesCount().

◆ getMdAsFloatValues()

void resqml2::WellboreFrameRepresentation::getMdAsFloatValues ( float * values ) const

Gets all the MD values of this instance which are supposed to be float ones.

Exceptions

std::logic_error	If the underlying gSOAP instance is not a RESQML2.0 one.
std::logic_error	If the MD values are neither stored in a HDF5 double array nor in a double lattice array.
std::invalid_argument	If the MD values are stored in a HDF5 double array and the HDF proxy is missing.

Parameters

[out] values A buffer to receive the MD values ordered from top to bottom of the wellbore trajectory. It must be preallocated with size of getMdValuesCount().

◆ getMdConstantIncrementValue()

double resqml2::WellboreFrameRepresentation::getMdConstantIncrementValue ( ) const

Indicates the increment value between two MDs in case of regularly spaced MDs. Please check the regularity of MDs with areMdValuesRegularlySpaced() before using this method.

Exceptions

std::logic_error	If the underlying gSOAP instance is not a RESQML2.0 one.
std::invalid_argument	If the MD values are not regularly spaced.

Returns: The MD constant increment value.

◆ getMdFirstValue()

double resqml2::WellboreFrameRepresentation::getMdFirstValue ( ) const

Returns the first MD value of this wellbore frame representation.

Exceptions

std::logic_error	If the underlying gSOAP instance is not a RESQML2.0 one.
std::logic_error	If the MD values are neither stored in a HDF5 double array nor in a double lattice array.
std::invalid_argument	If the MD values are stored in a HDF5 double array and the HDF proxy is missing.

Returns: The first MD value.

◆ getMdHdfDatatype()

common::AbstractObject::numericalDatatypeEnum resqml2::WellboreFrameRepresentation::getMdHdfDatatype ( ) const

Gets the MD datatype in the HDF dataset.

Exceptions

std::logic_error	If the underlying gSOAP instance is not a RESQML2.0 one.
std::invalid_argument	If the MD values are stored in a HDF5 double array and the HDF proxy is missing.

Returns: The MD datatype in the HDF dataset if MD values are actually stored in a HDF dataset. Returns DOUBLE if MD values are stored as a regular discretization along the wellbore trajectory.

◆ getMdValuesCount()

unsigned int resqml2::WellboreFrameRepresentation::getMdValuesCount ( ) const

Gets the number of MD values in this wellbore frame representation.

Exceptions

std::logic_error If the underlying gSOAP instance is not a RESQML2.0 one.

Returns: The MD values count.

◆ getPatchCount()

uint64_t resqml2::WellboreFrameRepresentation::getPatchCount ( ) const

inlinefinalvirtual

Gets the patch count.

Returns: The patch count.

Implements resqml2::AbstractRepresentation.

◆ getWellboreTrajectory()

class WellboreTrajectoryRepresentation * resqml2::WellboreFrameRepresentation::getWellboreTrajectory ( ) const

Gets the associated RESQML wellbore trajectory.

Exceptions

std::logic_error If the underlying gSOAP instance is not a RESQML2.0 one.

Returns: The associated RESQML wellbore trajectory.

◆ getWellboreTrajectoryDor()

common::DataObjectReference resqml2::WellboreFrameRepresentation::getWellboreTrajectoryDor ( ) const

Gets the data object reference of the associated RESQML wellbore trajectory.

Exceptions

std::logic_error If the underlying gSOAP instance is not a RESQML2.0 one.

Returns: The data object reference of the associated RESQML wellbore trajectory.

◆ getXyzPointCountOfPatch()

uint64_t resqml2::WellboreFrameRepresentation::getXyzPointCountOfPatch ( unsigned int patchIndex ) const

overridevirtual

Get the xyz point count in a given patch.

Implements resqml2::AbstractRepresentation.

◆ getXyzPointsOfPatch()

void resqml2::WellboreFrameRepresentation::getXyzPointsOfPatch	(	unsigned int	patchIndex,
		double *	xyzPoints ) const

overridevirtual

Use linear interpolation between 2 trajectory stations.

Implements resqml2::AbstractRepresentation.

◆ setMdValues() [1/2]

void resqml2::WellboreFrameRepresentation::setMdValues	(	double const *	mdValues,
		uint64_t	mdValueCount,
		eml2 ::AbstractHdfProxy *	proxy = nullptr )

Sets the measured depth (MD) values of this wellbore frame representation as a 1d array of explicit values.

Exceptions

std::logic_error	If the underlying gSOAP instance is not a RESQML2.0 one.
std::invalid_argument	If `proxy` is `nullptr` and no default HDF proxy is defined in the repository.

Parameters

	mdValues	All the MD values to set from top to bottom of the wellbore trajectory. Size if `mdValueCount`.
	mdValueCount	The MD values count.
[in,out]	proxy	(Optional) The HDF proxy where to write the MD values. It must be already opened for writing and won't be closed in this method. If `nullptr`, then a default HDF proxy must be defined in the repository.

◆ setMdValues() [2/2]

void resqml2::WellboreFrameRepresentation::setMdValues	(	double	firstMdValue,
		double	incrementMdValue,
		unsigned int	mdValueCount )

Sets the measured depth (MD) values of this wellbore frame representation as a regular discretization along the wellbore trajectory.

Exceptions

std::logic_error If the underlying gSOAP instance is not a RESQML2.0 one.

Parameters

firstMdValue	The first MD value.
incrementMdValue	The increment value between two MDs.
mdValueCount	The count of MD values in this wellbore frame representation.

The documentation for this class was generated from the following file:

C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/WellboreFrameRepresentation.h
