Proxy class for an abstract property. More...

#include <AbstractProperty.h>

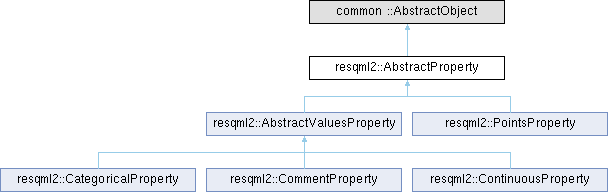

Inheritance diagram for resqml2::AbstractProperty:

Public Member Functions
virtual	~AbstractProperty ()=default

void	setRepresentation (AbstractRepresentation *rep)

common::DataObjectReference	getRepresentationDor () const

AbstractRepresentation *	getRepresentation () const

unsigned int	getElementCountPerValue () const

gsoap_eml2_3::eml23__IndexableElement	getAttachmentKind () const

virtual uint64_t	getPatchCount () const =0

virtual common::AbstractObject::numericalDatatypeEnum	getValuesHdfDatatype () const =0

uint64_t	getValuesCountOfPatch (unsigned int patchIndex) const

virtual uint64_t	getValuesCountOfDimensionOfPatch (uint64_t dimIndex, uint64_t patchIndex) const =0

virtual uint64_t	getDimensionsCountOfPatch (uint64_t patchIndex) const =0

std::vector< resqml2_0_1 ::PropertySet * >	getPropertySets () const

uint64_t	getPropertySetCount () const

resqml2_0_1::PropertySet *	getPropertySet (uint64_t index) const

void	setLocalCrs (class AbstractLocal3dCrs *crs)

class AbstractLocal3dCrs *	getLocalCrs () const

common::DataObjectReference	getLocalCrsDor () const

bool	hasRealizationIndices () const

std::vector< unsigned int >	getRealizationIndices () const

void	setRealizationIndices (int64_t startRealizationIndex, int64_t countRealizationIndices)

void	setRealizationIndices (const std::vector< unsigned int > &realizationIndices, eml2 ::AbstractHdfProxy *hdfProxy=nullptr)
	Sets the realization indices of this property.

void	setTimeSeries (eml2 ::TimeSeries *ts)

void	setSingleTimestamp (time_t timestamp, LONG64 yearOffset=0)

time_t	getSingleTimestamp () const

eml2::TimeSeries *	getTimeSeries () const

common::DataObjectReference	getTimeSeriesDor () const

bool	useInterval () const

bool	isAssociatedToOneStandardEnergisticsPropertyKind () const

std::string	getPropertyKindDescription () const

std::string	getPropertyKindAsString () const

std::string	getPropertyKindParentAsString () const

void	setPropertyKind (eml2 ::PropertyKind *propKind)

common::DataObjectReference	getPropertyKindDor () const

eml2::PropertyKind *	getPropertyKind () const

virtual bool	validatePropertyKindAssociation (eml2 ::PropertyKind *pk)=0

virtual bool	validatePropertyKindAssociation (gsoap_resqml2_0_1::resqml20__ResqmlPropertyKind pk)=0

bool	validate ()

Detailed Description

Proxy class for an abstract property.

Constructor & Destructor Documentation

◆ ~AbstractProperty()

virtual resqml2::AbstractProperty::~AbstractProperty ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context

Member Function Documentation

◆ getAttachmentKind()

gsoap_eml2_3::eml23__IndexableElement resqml2::AbstractProperty::getAttachmentKind ( ) const

Gets the kind of elements on which the property values are attached to

Returns: The kind of elements on which the property values are attached to.

◆ getDimensionsCountOfPatch()

virtual uint64_t resqml2::AbstractProperty::getDimensionsCountOfPatch ( uint64_t patchIndex ) const

pure virtual

Gets the count of dimensions of the underlying HDF5 dataset of a given patch of this property.

Exceptions

std::range_error If patchIndex is strictly greater than patch count.

Parameters

patchIndex The index of the patch we want to count the dimensions from.

Returns: The number of values, 0 otherwise.

Implemented in resqml2::AbstractValuesProperty, and resqml2::PointsProperty.

◆ getElementCountPerValue()

unsigned int resqml2::AbstractProperty::getElementCountPerValue ( ) const

Gets the count of elements per property value. If the property is a scalar one then it should be one. If it is a vectorial one, then it should be more than one. It is not possible to have some tensor property values (more dimensions than a vector)

Returns: The element count per value.

◆ getLocalCrs()

class AbstractLocal3dCrs * resqml2::AbstractProperty::getLocalCrs ( ) const

Gets the local CRS which is associated to this property.

Returns: The local CRS which is associated to the current property if exists, null if not (usually for a property which is not CRS related).

◆ getLocalCrsDor()

common::DataObjectReference resqml2::AbstractProperty::getLocalCrsDor ( ) const

Gets the data object reference of the local CRS which is associated to this property

Returns: Empty data object reference if no local CRS is associated to this property. Otherwise returns the data object reference of the associated local CRS.

◆ getPatchCount()

virtual uint64_t resqml2::AbstractProperty::getPatchCount ( ) const

pure virtual

Gets the number of patches in this values property. It should be the same count as the patch count of the associated representation.

Exceptions

std::out_of_range If the patch count is strictly greater than unsigned int max value.

Returns: The patch count.

Implemented in resqml2::AbstractValuesProperty.

◆ getPropertyKind()

eml2::PropertyKind * resqml2::AbstractProperty::getPropertyKind ( ) const

Gets the local property kind which is associated to this instance

Exceptions

std::invalid_argument If the property kind of this property is not a local one.

Returns: A pointer to the property kind.

◆ getPropertyKindAsString()

std::string resqml2::AbstractProperty::getPropertyKindAsString ( ) const

Gets the title of the property kind of this property

Returns: The property kind title.

◆ getPropertyKindDescription()

std::string resqml2::AbstractProperty::getPropertyKindDescription ( ) const

Gets the description of the property kind of this property

Exceptions

std::invalid_argument If the property kind is a standard Energistics one and the property kind mapping file is not loaded.

Returns: The property kind description.

◆ getPropertyKindDor()

common::DataObjectReference resqml2::AbstractProperty::getPropertyKindDor ( ) const

Gets the data object reference of the property kind associated to this property

Exceptions

std::invalid_argument If the property kind of this property is not a local one.

Returns: Empty data object reference if no property kind is associated to this property. Otherwise return the data object reference of the associated local property kind.

◆ getPropertyKindParentAsString()

std::string resqml2::AbstractProperty::getPropertyKindParentAsString ( ) const

Get the title of the parent property kind of this property

Exceptions

std::invalid_argument If the property kind is a standard Energistics one and the property kind mapping file is not loaded.

Returns: The parent property kind title.

◆ getPropertySet()

resqml2_0_1::PropertySet * resqml2::AbstractProperty::getPropertySet ( uint64_t index ) const

Gets a given property set taken from all property sets which contain this property

Exceptions

std::out_of_range If index is out of range.

Parameters

index Zero-based index of the property set we look for.

Returns: The property set at index.

◆ getPropertySetCount()

uint64_t resqml2::AbstractProperty::getPropertySetCount ( ) const

Gets the count of property sets which contain this property

Exceptions

std::range_error If the count of property sets is strictly greater than unsigned int max.

Returns: The count of property sets which contain this property.

◆ getPropertySets()

std::vector< resqml2_0_1 ::PropertySet * > resqml2::AbstractProperty::getPropertySets ( ) const

Gets all property sets which contain this property

Returns: A vector of all property sets which contain this property.

◆ getRealizationIndices()

std::vector< unsigned int > resqml2::AbstractProperty::getRealizationIndices ( ) const

Gets the realization index of this property. Realization index is used if the property is the result of a multi-realization process. You should have checked before that this property actually has a realization index. Remark : v2.0.1 is constrained to have a maximum of one realisation index

Exceptions

std::invalid_argument If this property has actually no realization index.

Returns: The realization index.

◆ getRepresentation()

AbstractRepresentation * resqml2::AbstractProperty::getRepresentation ( ) const

Gets the representation which is associated to the current property. That is to say the one which supports this instance values, also called supporting representation

Returns: The representation which is associated to the current property.

◆ getRepresentationDor()

common::DataObjectReference resqml2::AbstractProperty::getRepresentationDor ( ) const

Gets the data object reference of the representation which is associated to the current property

Returns: Empty data object reference if no representation is associated to this property. Otherwise returns the data object reference of the associated representation. Null should not occured since each property must be associated to a representation.

◆ getSingleTimestamp()

time_t resqml2::AbstractProperty::getSingleTimestamp ( ) const

Get a single associated timestamp for this property.

Returns: -1 if there is not a single timestamp related to this property meaning that no timestamp is present or more than one (i.e. a whole time series)

◆ getTimeSeries()

eml2::TimeSeries * resqml2::AbstractProperty::getTimeSeries ( ) const

Gets the time series which is associated to this property

Returns: Null pointer if no time series is associated to this property. Otherwise returns the associated time series.

◆ getTimeSeriesDor()

common::DataObjectReference resqml2::AbstractProperty::getTimeSeriesDor ( ) const

Gets the data object reference of the time series associated to this property

Returns: Empty data object reference if no time series is associated to this property. Otherwise returns the data object reference of the associated time series.

◆ getValuesCountOfDimensionOfPatch()

virtual uint64_t resqml2::AbstractProperty::getValuesCountOfDimensionOfPatch	(	uint64_t	dimIndex,
		uint64_t	patchIndex ) const

pure virtual

Gets the count of values on a specific dimension of the underlying HDF5 dataset of a given patch of this property.

Exceptions

std::out_of_range	If `dimIndex` is strictly greater than dimension count.
std::range_error	If `patchIndex` is strictly greater than patch count.

Parameters

dimIndex	The index of the dimension we want to count the values from.
patchIndex	The index of the patch we want to count the values from.

Returns: The count of values in the dimIndex dimension of patchIndex patch.

Implemented in resqml2::AbstractValuesProperty, and resqml2::PointsProperty.

◆ getValuesCountOfPatch()

uint64_t resqml2::AbstractProperty::getValuesCountOfPatch ( unsigned int patchIndex ) const

Gets the count of all values contained into the underlying HDF5 dataset of a given patch of this property.

Exceptions

std::range_error If patchIndex is strictly greater than patch count.

Parameters

patchIndex The index of the patch we want to count the values from.

Returns: The count of values of the patchIndex patch.

◆ getValuesHdfDatatype()

virtual common::AbstractObject::numericalDatatypeEnum resqml2::AbstractProperty::getValuesHdfDatatype ( ) const

pure virtual

Get the values data type in the HDF dataset

Returns: The data type of the values if successful, else UNKNOWN.

Implemented in resqml2::AbstractValuesProperty, and resqml2::PointsProperty.

◆ hasRealizationIndices()

bool resqml2::AbstractProperty::hasRealizationIndices ( ) const

Checks if this property has at least one realization index. Realization index is used if the property is the result of a multi-realization process. Remark : v2.0.1 is constrained to have a maximum of one realisation index

Returns: True if the property has at least one realization index, false if not.

◆ isAssociatedToOneStandardEnergisticsPropertyKind()

bool resqml2::AbstractProperty::isAssociatedToOneStandardEnergisticsPropertyKind ( ) const

Indicates if the property kind attached to this property is either from the standard catalog of Energistics or from a local property kind

Returns: True if associated to one standard Energistics property kind, false if not.

◆ setLocalCrs()

void resqml2::AbstractProperty::setLocalCrs ( class AbstractLocal3dCrs * crs )

Sets the local CRS which is associated to the current property. You should not set any CRS if your property is not CRS related

Exceptions

std::invalid_argument If crs is null.

Parameters

[in] crs The local CRS to associate with the current property.

◆ setPropertyKind()

void resqml2::AbstractProperty::setPropertyKind ( eml2 ::PropertyKind * propKind )

Sets the property kind of this property to a local one

Exceptions

std::invalid_argument If propKind is null.

Parameters

[in] propKind The local property kind to set to this property.

◆ setRealizationIndices() [1/2]

void resqml2::AbstractProperty::setRealizationIndices	(	const std::vector< unsigned int > &	realizationIndices,
		eml2 ::AbstractHdfProxy *	hdfProxy = nullptr )

Sets the realization indices of this property.

Exceptions

std::invalid_argument	If `realizationIndices` is empty.
std::invalid_argument	If the `realizationIndices` size is strictly greater than 1 in a RESQML 2.0.1 context.
std::invalid_argument	If, in a RESQML 2.2 context, `hdfProxy == nullptr` and no default HDF proxy is defined in the repository.
std::logic_error	If no supported gSOAP proxy is available.

Parameters

	realizationIndices	The realization indices to set to this property. Remark : v2.0.1 is constrained to have a maximum of one realisation index
[in,out]	hdfProxy	(Optional) The HDF proxy where to store `realizationIndices` values. If `nullptr` (default), then the repository default HDF proxy will be used.

◆ setRealizationIndices() [2/2]

void resqml2::AbstractProperty::setRealizationIndices	(	int64_t	startRealizationIndex,
		int64_t	countRealizationIndices )

Sets the realization indices of this property

Parameters

startRealizationIndex	The first realization index to set to this property.
countRealizationIndices	The count of realization indices to set to this property.

◆ setRepresentation()

void resqml2::AbstractProperty::setRepresentation ( AbstractRepresentation * rep )

Sets the representation which is associated to the current property

Exceptions

std::invalid_argument If rep is null.

Parameters

[in] rep The representation to associate to the current property.

◆ setSingleTimestamp()

void resqml2::AbstractProperty::setSingleTimestamp	(	time_t	timestamp,
		LONG64	yearOffset = 0 )

Set a single associated timestamp for this property. Must be used with and after setTimeSeries.

Exceptions

invalid_argument Regarding RESQML2.0.1, this method cannot be called if setTimeSeries has not been called before.

Parameters

[in]	timestamp	The single timestamps to associate to this property
[in]	yearOffset	Indicates that the dateTime attribute must be translated according to this value.

◆ setTimeSeries()

void resqml2::AbstractProperty::setTimeSeries ( eml2 ::TimeSeries * ts )

Sets the time series associated to the current property

Exceptions

invalid_argument If ts is null or if the current property has no time indices.

Parameters

[in] ts The time series to associate to this property

◆ useInterval()

bool resqml2::AbstractProperty::useInterval ( ) const

Check if the values are given at each time index or between each time index.

◆ validate()

bool resqml2::AbstractProperty::validate ( )

Checks if the associated property kind is allowed for this property.

Returns: True if it is allowed, false if it is not.

◆ validatePropertyKindAssociation() [1/2]

virtual bool resqml2::AbstractProperty::validatePropertyKindAssociation ( eml2 ::PropertyKind * pk )

pure virtual

Checks if it is allowed to associate a given property kind to this property.

Parameters

[in] pk The local property kind to check.

Returns: True if it is allowed, false if it is not.

Implemented in resqml2::PointsProperty.

◆ validatePropertyKindAssociation() [2/2]

virtual bool resqml2::AbstractProperty::validatePropertyKindAssociation ( gsoap_resqml2_0_1::resqml20__ResqmlPropertyKind pk )

pure virtual

Checks if it is allowed to associate a given standard Energistics property kind to this property.

Parameters

pk	The standard Energistics property kind to check.

Returns: True if it is allowed, false if it is not.

Implemented in resqml2::PointsProperty.

The documentation for this class was generated from the following file:

C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/AbstractProperty.h

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ ~AbstractProperty()

Member Function Documentation

◆ getAttachmentKind()

◆ getDimensionsCountOfPatch()

◆ getElementCountPerValue()

◆ getLocalCrs()

◆ getLocalCrsDor()

◆ getPatchCount()

◆ getPropertyKind()

◆ getPropertyKindAsString()

◆ getPropertyKindDescription()

◆ getPropertyKindDor()

◆ getPropertyKindParentAsString()

◆ getPropertySet()

◆ getPropertySetCount()

◆ getPropertySets()

◆ getRealizationIndices()

◆ getRepresentation()

◆ getRepresentationDor()

◆ getSingleTimestamp()

◆ getTimeSeries()

◆ getTimeSeriesDor()

◆ getValuesCountOfDimensionOfPatch()

◆ getValuesCountOfPatch()

◆ getValuesHdfDatatype()

◆ hasRealizationIndices()

◆ isAssociatedToOneStandardEnergisticsPropertyKind()

◆ setLocalCrs()

◆ setPropertyKind()

◆ setRealizationIndices() [1/2]

◆ setRealizationIndices() [2/2]

◆ setRepresentation()

◆ setSingleTimestamp()

◆ setTimeSeries()

◆ useInterval()

◆ validate()

◆ validatePropertyKindAssociation() [1/2]

◆ validatePropertyKindAssociation() [2/2]
