resqml2::IjkGridNoGeometryRepresentation Class Reference

This class is dedicated to IJK grids with undefined IjkGridGeometry. There are two main use cases. A first one is block-centered grid, where no geometry is attached to nodes but a property should spatialize cells centers. A second one is LGRs (local refinement grids), where the refined geometry is given thanks to refinement parameters. More...

#include <IjkGridNoGeometryRepresentation.h>

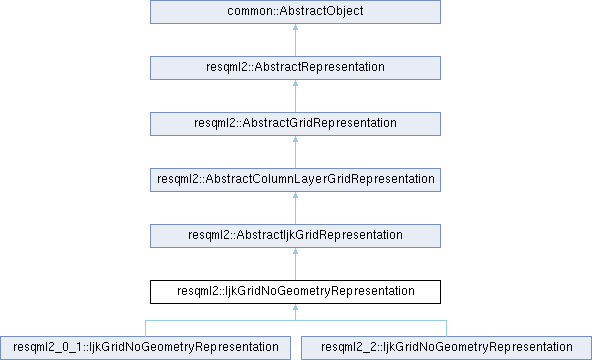

Inheritance diagram for resqml2::IjkGridNoGeometryRepresentation:

Public Member Functions
virtual	~IjkGridNoGeometryRepresentation ()=default
uint64_t	getXyzPointCountOfPatch (unsigned int patchIndex) const final
void	getXyzPointsOfPatch (unsigned int patchIndex, double *xyzPoints) const final
geometryKind	getGeometryKind () const final
Public Member Functions inherited from resqml2::AbstractIjkGridRepresentation
	AbstractIjkGridRepresentation (common::DataObjectRepository *repo, const std::string &guid, const std::string &title, unsigned int iCount, unsigned int jCount, unsigned int kCount, bool *kGaps=nullptr, eml2::AbstractHdfProxy *proxy=nullptr)
	AbstractIjkGridRepresentation (resqml2::AbstractFeatureInterpretation *interp, const std::string &guid, const std::string &title, unsigned int iCount, unsigned int jCount, unsigned int kCount, bool *kGaps=nullptr, eml2::AbstractHdfProxy *proxy=nullptr)
	AbstractIjkGridRepresentation (gsoap_resqml2_0_1::eml20__DataObjectReference *partialObject, bool withTruncatedPillars=false)
virtual	~AbstractIjkGridRepresentation ()
unsigned int	getICellCount () const
void	setICellCount (unsigned int iCount)
unsigned int	getJCellCount () const
void	setJCellCount (unsigned int jCount)
	Sets the count of cells in the J direction.
uint64_t	getCellCount () const final
unsigned int	getColumnCount () const
unsigned int	getPillarCount () const
uint64_t	getKGapsCount () const
void	getKGaps (bool *kGaps) const
uint64_t	getFaceCount () const
unsigned int	getIPillarFromGlobalIndex (unsigned int globalIndex) const
unsigned int	getJPillarFromGlobalIndex (unsigned int globalIndex) const
unsigned int	getGlobalIndexPillarFromIjIndex (unsigned int iPillar, unsigned int jPillar) const
unsigned int	getIColumnFromGlobalIndex (unsigned int globalIndex) const
unsigned int	getJColumnFromGlobalIndex (unsigned int globalIndex) const
unsigned int	getGlobalIndexColumnFromIjIndex (unsigned int iColumn, unsigned int jColumn) const
unsigned int	getGlobalIndexCellFromIjkIndex (unsigned int iCell, unsigned int jCell, unsigned int kCell) const
bool	isRightHanded () const
void	getPillarsOfSplitCoordinateLines (unsigned int *pillarIndices, bool reverseIAxis=false, bool reverseJAxis=false) const
void	getColumnsOfSplitCoordinateLines (unsigned int *columnIndices, bool reverseIAxis=false, bool reverseJAxis=false) const
void	getColumnCountOfSplitCoordinateLines (unsigned int *columnIndexCountPerSplitCoordinateLine) const
uint64_t	getSplitCoordinateLineCount () const
uint64_t	getBlockSplitCoordinateLineCount () const
uint64_t	getSplitNodeCount () const
void	getPillarGeometryIsDefined (bool *pillarGeometryIsDefined, bool reverseIAxis=false, bool reverseJAxis=false) const
bool	hasCellGeometryIsDefinedFlags () const
void	getCellGeometryIsDefinedFlags (bool *cellGeometryIsDefinedFlags, bool reverseIAxis=false, bool reverseJAxis=false, bool reverseKAxis=false) const
void	setCellGeometryIsDefinedFlags (uint8_t *cellGeometryIsDefinedFlags, eml2::AbstractHdfProxy *proxy=nullptr)
void	setAllCellGeometryFlagsToDefined ()
void	loadSplitInformation ()
void	loadBlockInformation (unsigned int iInterfaceStart, unsigned int iInterfaceEnd, unsigned int jInterfaceStart, unsigned int jInterfaceEnd, unsigned int kInterfaceStart, unsigned int kInterfaceEnd)
void	unloadSplitInformation ()
bool	isColumnEdgeSplitted (unsigned int iColumn, unsigned int jColumn, unsigned int edge) const
	Checks either a given column edge is splitted or not. This method requires that you have already loaded the split information.
uint64_t	getXyzPointIndexFromCellCorner (unsigned int iCell, unsigned int jCell, unsigned int kCell, unsigned int corner) const
	Gets the XYZ point index in the HDF dataset from the corner of a cell. This method requires that you have already loaded the split information.
void	getXyzPointOfBlockFromCellCorner (unsigned int iCell, unsigned int jCell, unsigned int kCell, unsigned int corner, const double *xyzPoints, double &x, double &y, double &z) const
	Gets the x, y and z values of the corner of a cell of a given block. This method requires that you have already both loaded the block information and get the geometry of the block thanks to getXyzPointsOfBlock().
uint64_t	getXyzPointCountOfKInterface () const
uint64_t	getXyzPointCountOfBlock () const
void	getXyzPointsOfKInterface (unsigned int kInterface, double *xyzPoints)
virtual void	getXyzPointsOfKInterfaceSequence (unsigned int kInterfaceStart, unsigned int kInterfaceEnd, double *xyzPoints)
	Gets all the XYZ points of a particular sequence of K interfaces. XYZ points are given in the local CRS.
virtual void	getXyzPointsOfBlock (double *xyzPoints)
	Gets all the XYZ points of the current block. XYZ points are given in the local CRS. Block information must be loaded.
virtual bool	isNodeGeometryCompressed () const
gsoap_resqml2_0_1::resqml20__KDirection	getKDirection () const override
virtual common::DataObjectReference	getHdfProxyDor () const override
	Gets the data object reference of the HDF proxy which is used for storing the numerical values of this representation (i.e. its geometry).
std::string	getXmlTag () const final
uint64_t	getPatchCount () const override
virtual std::string	getXmlNamespace () const override
Public Member Functions inherited from resqml2::AbstractColumnLayerGridRepresentation
virtual	~AbstractColumnLayerGridRepresentation ()=default
uint64_t	getKCellCount () const
void	setKCellCount (uint64_t kCount)
void	setIntervalAssociationWithStratigraphicOrganizationInterpretation (int64_t const *stratiUnitIndices, int64_t nullValue, resqml2::AbstractStratigraphicOrganizationInterpretation *stratiOrgInterp, eml2::AbstractHdfProxy *hdfProxy=nullptr)
common::DataObjectReference	getStratigraphicOrganizationInterpretationDor () const final
bool	hasIntervalStratigraphicUnitIndices () const
int64_t	getIntervalStratigraphicUnitIndices (int64_t *stratiUnitIndices)
gsoap_resqml2_0_1::resqml20__PillarShape	getMostComplexPillarGeometry () const
Public Member Functions inherited from resqml2::AbstractGridRepresentation
virtual	~AbstractGridRepresentation ()=default
std::vector< class GridConnectionSetRepresentation * >	getGridConnectionSetRepresentationSet () const
uint64_t	getGridConnectionSetRepresentationCount () const
class GridConnectionSetRepresentation *	getGridConnectionSetRepresentation (uint64_t index) const
AbstractGridRepresentation *	getParentGrid () const
common::DataObjectReference	getParentGridDor () const
std::vector< resqml2::AbstractGridRepresentation * >	getChildGridSet () const
uint64_t	getChildGridCount () const
AbstractGridRepresentation *	getChildGrid (uint64_t index) const
void	setParentWindow (uint64_t *cellIndices, uint64_t cellIndexCount, class UnstructuredGridRepresentation *parentGrid, eml2::AbstractHdfProxy *proxy=nullptr)
void	setParentWindow (unsigned int *columnIndices, uint64_t columnIndexCount, unsigned int kLayerIndexRegridStart, unsigned int *childCellCountPerInterval, unsigned int *parentCellCountPerInterval, uint64_t intervalCount, class AbstractColumnLayerGridRepresentation *parentGrid, eml2::AbstractHdfProxy *proxy=nullptr, double *childCellWeights=nullptr)
void	setParentWindow (unsigned int iCellIndexRegridStart, unsigned int *childCellCountPerIInterval, unsigned int *parentCellCountPerIInterval, uint64_t iIntervalCount, unsigned int jCellIndexRegridStart, unsigned int *childCellCountPerJInterval, unsigned int *parentCellCountPerJInterval, uint64_t jIntervalCount, unsigned int kCellIndexRegridStart, unsigned int *childCellCountPerKInterval, unsigned int *parentCellCountPerKInterval, uint64_t kIntervalCount, class AbstractIjkGridRepresentation *parentGrid, eml2::AbstractHdfProxy *proxy=nullptr, double *iChildCellWeights=nullptr, double *jChildCellWeights=nullptr, double *kChildCellWeights=nullptr)
void	setParentWindow (unsigned int iCellIndexRegridStart, unsigned int constantChildCellCountPerIInterval, unsigned int constantParentCellCountPerIInterval, uint64_t iIntervalCount, unsigned int jCellIndexRegridStart, unsigned int constantChildCellCountPerJInterval, unsigned int constantParentCellCountPerJInterval, uint64_t jIntervalCount, unsigned int kCellIndexRegridStart, unsigned int constantChildCellCountPerKInterval, unsigned int constantParentCellCountPerKInterval, uint64_t kIntervalCount, class AbstractIjkGridRepresentation *parentGrid, eml2::AbstractHdfProxy *proxy=nullptr, double *iChildCellWeights=nullptr, double *jChildCellWeights=nullptr, double *kChildCellWeights=nullptr)
	Indicates that this grid takes place into another IJK parent grid. This method assumes that the count of cells per regrid interval is constant in both child and parent grids.
void	setParentWindow (unsigned int iCellIndexRegridStart, unsigned int iChildCellCount, unsigned int iParentCellCount, unsigned int jCellIndexRegridStart, unsigned int jChildCellCount, unsigned int jParentCellCount, unsigned int kCellIndexRegridStart, unsigned int kChildCellCount, unsigned int kParentCellCount, class AbstractIjkGridRepresentation *parentGrid, eml2::AbstractHdfProxy *proxy=nullptr, double *iChildCellWeights=nullptr, double *jChildCellWeights=nullptr, double *kChildCellWeights=nullptr)
void	setForcedNonRegridedParentCell (uint64_t *cellIndices, uint64_t cellIndexCount)
void	setCellOverlap (uint64_t parentChildCellPairCount, uint64_t *parentChildCellPair, const std::string &volumeUom, double *overlapVolumes=nullptr)
uint64_t	getParentCellIndexCount () const
void	getParentCellIndices (uint64_t *parentCellIndices) const
uint64_t	getParentColumnIndexCount () const
void	getParentColumnIndices (uint64_t *parentColumnIndices) const
uint64_t	getRegridStartIndexOnParentGrid (char dimension) const
uint64_t	getRegridIntervalCount (char dimension) const
bool	isRegridCellCountPerIntervalConstant (char dimension, bool childVsParentCellCount) const
uint64_t	getRegridConstantCellCountPerInterval (char dimension, bool childVsParentCellCount) const
void	getRegridCellCountPerInterval (char dimension, uint64_t *childCellCountPerInterval, bool childVsParentCellCount) const
bool	hasRegridChildCellWeights (char dimension) const
void	getRegridChildCellWeights (char dimension, double *childCellWeights) const
bool	hasForcedNonRegridedParentCell () const
void	setCellAssociationWithStratigraphicOrganizationInterpretation (int64_t *stratiUnitIndices, int64_t nullValue, class AbstractStratigraphicOrganizationInterpretation *stratiOrgInterp)
class AbstractStratigraphicOrganizationInterpretation *	getStratigraphicOrganizationInterpretation () const
bool	hasCellStratigraphicUnitIndices () const
int64_t	getCellStratigraphicUnitIndices (int64_t *stratiUnitIndices)
void	setCellAssociationWithRockFluidOrganizationInterpretation (int64_t *rockFluidUnitIndices, int64_t nullValue, class RockFluidOrganizationInterpretation *rockFluidOrgInterp)
class RockFluidOrganizationInterpretation *	getRockFluidOrganizationInterpretation () const
virtual common::DataObjectReference	getRockFluidOrganizationInterpretationDor () const
bool	hasCellFluidPhaseUnitIndices () const
int64_t	getCellFluidPhaseUnitIndices (int64_t *rockfluidUnitIndices)
bool	isTruncated () const
uint64_t	getTruncatedFaceCount () const
void	getNodeIndicesOfTruncatedFaces (uint64_t *nodeIndices) const
void	getCumulativeNodeCountPerTruncatedFace (uint64_t *nodeCountPerFace) const
void	getNodeCountPerTruncatedFace (uint64_t *nodeCountPerFace) const
uint64_t	getTruncatedCellCount () const
void	getTruncatedCellIndices (uint64_t *cellIndices) const
void	getTruncatedFaceIndicesOfTruncatedCells (uint64_t *faceIndices) const
void	getCumulativeTruncatedFaceCountPerTruncatedCell (uint64_t *cumulativeFaceCountPerCell) const
void	getTruncatedFaceCountPerTruncatedCell (uint64_t *faceCountPerCell) const
void	getNonTruncatedFaceIndicesOfTruncatedCells (uint64_t *faceIndices) const
void	getCumulativeNonTruncatedFaceCountPerTruncatedCell (uint64_t *cumulativeFaceCountPerCell) const
void	getNonTruncatedFaceCountPerTruncatedCell (uint64_t *faceCountPerCell) const
void	getTruncatedFaceIsRightHanded (uint8_t *cellFaceIsRightHanded) const
void	loadTargetRelationships () override
Public Member Functions inherited from resqml2::AbstractRepresentation
virtual	~AbstractRepresentation ()=default
eml2::AbstractLocal3dCrs *	getLocalCrs (uint64_t patchIndex) const
virtual common::DataObjectReference	getLocalCrsDor (uint64_t patchIndex) const
void	setTimeIndex (uint64_t timeIndex, eml2::TimeSeries *timeSeries)
uint64_t	getTimeIndex () const
	Gets the time index of this representation in the associated TimeSeries. Be sure to first check that a TimeSeries is associated this representation by calling getTimeSeriesDor or getTimeSeries;.
eml2::TimeSeries *	getTimeSeries () const
common::DataObjectReference	getTimeSeriesDor () const
	Gets the data object reference of the TimeSeries containing the time of this representation at a particular index. For now, this method only look for a TimeSeries at the first patch containing a point geometry.
std::vector< class AbstractProperty * >	getPropertySet () const
void	setInterpretation (class AbstractFeatureInterpretation *interp)
class AbstractFeatureInterpretation *	getInterpretation () const
common::DataObjectReference	getInterpretationDor () const
uint64_t	getXyzPointCountOfAllPatches () const
void	getXyzPointsOfPatchInGlobalCrs (unsigned int patchIndex, double *xyzPoints) const
	Gets all the xyz points of a particular patch of this representation. xyz points are given in the global CRS.
void	getXyzPointsOfAllPatches (double *xyzPoints) const
	Gets all the xyz points of all patches of this representation. xyz points are given in the local CRS.
bool	isInSingleLocalCrs () const
bool	isInSingleGlobalCrs () const
void	getXyzPointsOfAllPatchesInGlobalCrs (double *xyzPoints) const
AbstractRepresentation *	getSeismicSupportOfPatch (const unsigned int &patchIndex) const
std::set< AbstractRepresentation * >	getAllSeismicSupport () const
void	pushBackIntoRepresentationSet (class RepresentationSetRepresentation *repSet)
void	addSeismic3dCoordinatesToPatch (unsigned int patchIndex, double *inlines, double *crosslines, uint64_t pointCount, resqml2::AbstractRepresentation *seismicSupport, eml2::AbstractHdfProxy *proxy)
void	addSeismic3dCoordinatesToPatch (unsigned int patchIndex, double startInline, double incrInline, unsigned int countInline, double startCrossline, double incrCrossline, unsigned int countCrossline, resqml2::AbstractRepresentation *seismicSupport)
void	addSeismic2dCoordinatesToPatch (unsigned int patchIndex, double *lineAbscissa, resqml2::AbstractRepresentation *seismicSupport, eml2::AbstractHdfProxy *proxy)
void	getSeismicLineAbscissaOfPointsOfPatch (unsigned int patchIndex, double *values) const
void	getInlinesOfPointsOfPatch (unsigned int patchIndex, double *values) const
void	getCrosslinesOfPointsOfPatch (unsigned int patchIndex, double *values) const
Public Member Functions inherited from common::AbstractObject
bool	isPartial () const
virtual bool	isTopLevelElement () const
std::string	getUuid () const
std::string	getTitle () const
std::string	getEditor () const
time_t	getCreation () const
tm	getCreationAsTimeStructure () const
std::string	getOriginator () const
std::string	getDescription () const
time_t	getLastUpdate () const
tm	getLastUpdateAsTimeStructure () const
std::string	getFormat () const
std::string	getDescriptiveKeywords () const
std::string	getVersion () const
void	setTitle (const std::string &title)
void	setEditor (const std::string &editor)
void	setCreation (time_t creation)
void	setCreation (const tm &creation)
void	setOriginator (const std::string &originator)
void	setDescription (const std::string &description)
void	setLastUpdate (time_t lastUpdate)
void	setLastUpdate (const tm &lastUpdate)
void	setDescriptiveKeywords (const std::string &descriptiveKeywords)
void	setVersion (const std::string &version)
void	setMetadata (const std::string &title, const std::string &editor, time_t creation, const std::string &originator, const std::string &description, time_t lastUpdate, const std::string &descriptiveKeywords)
void	serializeIntoStream (std::ostream *stream)
gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *	getEml20GsoapProxy () const
void	setGsoapProxy (gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *gsoapProxy)
gsoap_eml2_3::eml23__AbstractObject *	getEml23GsoapProxy () const
void	setGsoapProxy (gsoap_eml2_3::eml23__AbstractObject *gsoapProxy)
soap *	getGsoapContext () const
int	getGsoapType () const
gsoap_resqml2_0_1::eml20__DataObjectReference *	newResqmlReference () const
gsoap_eml2_3::eml23__DataObjectReference *	newEml23Reference () const
gsoap_resqml2_0_1::resqml20__ContactElementReference *	newContactElementReference2_0_1 () const
gsoap_eml2_3::resqml22__ContactElement *	newContactElementReference2_2 () const
common::DataObjectRepository *	getRepository () const
virtual std::string	getXmlNamespaceVersion () const
virtual std::string	getContentType () const
virtual std::string	getQualifiedType () const
virtual std::string	getPartNameInEpcDocument () const
std::string	serializeIntoString ()
void	addAlias (const std::string &authority, const std::string &title)
uint64_t	getAliasCount () const
std::string	getAliasAuthorityAtIndex (uint64_t index) const
std::string	getAliasTitleAtIndex (uint64_t index) const
std::vector< eml2::Activity * >	getActivitySet () const
uint64_t	getActivityCount () const
eml2::Activity *	getActivity (uint64_t index) const
void	pushBackExtraMetadata (const std::string &key, const std::string &value)
std::unordered_map< std::string, std::string >	getExtraMetadataSet () const
std::vector< std::string >	getExtraMetadata (const std::string &key) const
uint64_t	getExtraMetadataCount () const
std::string	getExtraMetadataKeyAtIndex (uint64_t index) const
std::string	getExtraMetadataStringValueAtIndex (uint64_t index) const
std::string	buildEtp12Uri () const
void	setUriSource (const std::string &uriSource)
const std::string &	getUriSource () const
std::string	getEpcSourceFolder () const
void	changeToPartialObject ()

Additional Inherited Members
Public Types inherited from resqml2::AbstractIjkGridRepresentation
enum class	geometryKind {   UNKNOWN = 0 , EXPLICIT = 1 , PARAMETRIC = 2 , LATTICE = 3 ,   NO_GEOMETRY = 4 }
Public Types inherited from common::AbstractObject
enum class	numericalDatatypeEnum {   UNKNOWN = 0 , DOUBLE = 1 , FLOAT = 2 , INT64 = 3 ,   UINT64 = 4 , INT32 = 5 , UINT32 = 6 , INT16 = 7 ,   UINT16 = 8 , INT8 = 9 , UINT8 = 10 }
Static Public Member Functions inherited from common::AbstractObject
static void	setFormat (const std::string &vendor, const std::string &applicationName, const std::string &applicationVersionNumber)
Static Public Attributes inherited from resqml2::AbstractIjkGridRepresentation
static constexpr char const *	XML_TAG = "IjkGridRepresentation"
static constexpr char const *	XML_TAG_TRUNCATED = "TruncatedIjkGridRepresentation"
Static Public Attributes inherited from resqml2::AbstractGridRepresentation
static constexpr char const *	XML_TAG = "AbstractGridRepresentation"
Static Public Attributes inherited from resqml2::AbstractRepresentation
static constexpr char const *	XML_TAG = "AbstractRepresentation"

Detailed Description

This class is dedicated to IJK grids with undefined IjkGridGeometry. There are two main use cases. A first one is block-centered grid, where no geometry is attached to nodes but a property should spatialize cells centers. A second one is LGRs (local refinement grids), where the refined geometry is given thanks to refinement parameters.

Constructor & Destructor Documentation

~IjkGridNoGeometryRepresentation()

virtual resqml2::IjkGridNoGeometryRepresentation::~IjkGridNoGeometryRepresentation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Reimplemented in resqml2_0_1::IjkGridNoGeometryRepresentation, and resqml2_2::IjkGridNoGeometryRepresentation.

Member Function Documentation

getGeometryKind()

geometryKind resqml2::IjkGridNoGeometryRepresentation::getGeometryKind ( ) const

finalvirtual

Gets the geometry kind of this IJK grid.

Returns

The geometry kind of this IJK grid.

Reimplemented from resqml2::AbstractIjkGridRepresentation.

getXyzPointCountOfPatch()

uint64_t resqml2::IjkGridNoGeometryRepresentation::getXyzPointCountOfPatch ( unsigned int patchIndex ) const

finalvirtual

Get the XYZ point count in a given patch of this grid.

Exceptions

std::out_of_range	If patchIndex >= 1 (IJK grids only carry 1 patch).
std::logic_error	If getting the XYZ points of this grid is not yet supported.

Parameters

patchIndex

Zero-based index of the patch from which we look for the XYZ points.

Returns

The XYZ point count of the patch.

Reimplemented from resqml2::AbstractIjkGridRepresentation.

getXyzPointsOfPatch()

void resqml2::IjkGridNoGeometryRepresentation::getXyzPointsOfPatch ( unsigned int patchIndex, double * xyzPoints ) const

finalvirtual

Please do not use: not implemented yet. Please use parent window information or geometrical property information.

Exceptions

std::_out_of_range

If patchIndex >= 1 (IJK grids only carry 1 patch).

Reimplemented from resqml2::AbstractIjkGridRepresentation.

---

The documentation for this class was generated from the following file:

• C:/Users/phili/dev/fesapi/fesapi-2.13.0.0/src/resqml2/IjkGridNoGeometryRepresentation.h
