This class describes the organization of geological reservoir, i.e., of an interconnected network of porous and permeable rock units, containing an accumulation of economic fluids, such as oil and gas. A reservoir is normally enveloped by rock and fluid barriers and contains a single natural pressure system. More...

#include <RockFluidOrganizationInterpretation.h>

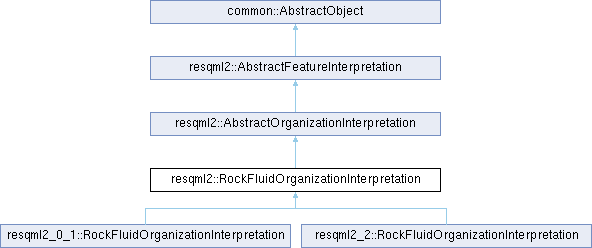

Inheritance diagram for resqml2::RockFluidOrganizationInterpretation:

Public Member Functions
virtual	~RockFluidOrganizationInterpretation ()=default
bool	isRockFluid () const final
std::vector< AbstractGridRepresentation * >	getGridRepresentationSet () const
uint64_t	getGridRepresentationCount () const
AbstractGridRepresentation *	getGridRepresentation (uint64_t index) const
bool	isAssociatedToGridRepresentation (AbstractGridRepresentation *gridRep) const
virtual void	pushBackRockFluidUnitInterpretation (class RockFluidUnitInterpretation *rockFluidUnitInterpretation)=0
virtual uint64_t	getRockFluidUnitInterpCount () const =0
virtual common::DataObjectReference	getRockFluidUnitInterpretationDor (uint64_t index) const =0
class RockFluidUnitInterpretation *	getRockFluidUnitInterpretation (uint64_t index) const
Public Member Functions inherited from resqml2::AbstractOrganizationInterpretation
virtual	~AbstractOrganizationInterpretation ()=default
virtual bool	isStructural () const
virtual bool	isStratigraphic () const
void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject)
void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject, AbstractFeatureInterpretation *partOf)
void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)
void	pushBackBinaryContact (AbstractFeatureInterpretation subject, gsoap_resqml2_0_1::resqml20__ContactSide subjectQualifier, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)
Public Member Functions inherited from resqml2::AbstractFeatureInterpretation
virtual	~AbstractFeatureInterpretation ()=default
common::DataObjectReference	getInterpretedFeatureDor () const
void	setInterpretedFeature (AbstractFeature *feature)
AbstractFeature *	getInterpretedFeature () const
gsoap_resqml2_0_1::resqml20__Domain	initDomain (gsoap_resqml2_0_1::resqml20__Domain defaultDomain) const
gsoap_resqml2_0_1::resqml20__Domain	getDomain () const
std::vector< AbstractRepresentation * >	getRepresentationSet () const
uint64_t	getRepresentationCount () const noexcept
AbstractRepresentation *	getRepresentation (uint64_t index) const
std::vector< GridConnectionSetRepresentation * >	getGridConnectionSetRepresentationSet () const
Public Member Functions inherited from common::AbstractObject
bool	isPartial () const
virtual bool	isTopLevelElement () const
std::string	getUuid () const
std::string	getTitle () const
std::string	getEditor () const
time_t	getCreation () const
tm	getCreationAsTimeStructure () const
std::string	getOriginator () const
std::string	getDescription () const
time_t	getLastUpdate () const
tm	getLastUpdateAsTimeStructure () const
std::string	getFormat () const
std::string	getDescriptiveKeywords () const
std::string	getVersion () const
void	setTitle (const std::string &title)
void	setEditor (const std::string &editor)
void	setCreation (time_t creation)
void	setCreation (const tm &creation)
void	setOriginator (const std::string &originator)
void	setDescription (const std::string &description)
void	setLastUpdate (time_t lastUpdate)
void	setLastUpdate (const tm &lastUpdate)
void	setDescriptiveKeywords (const std::string &descriptiveKeywords)
void	setVersion (const std::string &version)
void	setMetadata (const std::string &title, const std::string &editor, time_t creation, const std::string &originator, const std::string &description, time_t lastUpdate, const std::string &descriptiveKeywords)
void	serializeIntoStream (std::ostream *stream)
gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *	getEml20GsoapProxy () const
void	setGsoapProxy (gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *gsoapProxy)
gsoap_eml2_3::eml23__AbstractObject *	getEml23GsoapProxy () const
void	setGsoapProxy (gsoap_eml2_3::eml23__AbstractObject *gsoapProxy)
soap *	getGsoapContext () const
int	getGsoapType () const
gsoap_resqml2_0_1::eml20__DataObjectReference *	newResqmlReference () const
gsoap_eml2_3::eml23__DataObjectReference *	newEml23Reference () const
gsoap_resqml2_0_1::resqml20__ContactElementReference *	newContactElementReference2_0_1 () const
gsoap_eml2_3::resqml22__ContactElement *	newContactElementReference2_2 () const
common::DataObjectRepository *	getRepository () const
virtual std::string	getXmlNamespace () const =0
virtual std::string	getXmlTag () const =0
virtual std::string	getXmlNamespaceVersion () const
virtual std::string	getContentType () const
virtual std::string	getQualifiedType () const
virtual std::string	getPartNameInEpcDocument () const
std::string	serializeIntoString ()
void	addAlias (const std::string &authority, const std::string &title)
uint64_t	getAliasCount () const
std::string	getAliasAuthorityAtIndex (uint64_t index) const
std::string	getAliasTitleAtIndex (uint64_t index) const
std::vector< eml2::Activity * >	getActivitySet () const
uint64_t	getActivityCount () const
eml2::Activity *	getActivity (uint64_t index) const
void	pushBackExtraMetadata (const std::string &key, const std::string &value)
std::unordered_map< std::string, std::string >	getExtraMetadataSet () const
std::vector< std::string >	getExtraMetadata (const std::string &key) const
uint64_t	getExtraMetadataCount () const
std::string	getExtraMetadataKeyAtIndex (uint64_t index) const
std::string	getExtraMetadataStringValueAtIndex (uint64_t index) const
std::string	buildEtp12Uri () const
void	setUriSource (const std::string &uriSource)
const std::string &	getUriSource () const
std::string	getEpcSourceFolder () const
void	changeToPartialObject ()

Additional Inherited Members
Public Types inherited from common::AbstractObject
enum class	numericalDatatypeEnum { UNKNOWN = 0 , DOUBLE = 1 , FLOAT = 2 , INT64 = 3 , UINT64 = 4 , INT32 = 5 , UINT32 = 6 , INT16 = 7 , UINT16 = 8 , INT8 = 9 , UINT8 = 10 }
Static Public Member Functions inherited from common::AbstractObject
static void	setFormat (const std::string &vendor, const std::string &applicationName, const std::string &applicationVersionNumber)

Detailed Description

This class describes the organization of geological reservoir, i.e., of an interconnected network of porous and permeable rock units, containing an accumulation of economic fluids, such as oil and gas. A reservoir is normally enveloped by rock and fluid barriers and contains a single natural pressure system.

Constructor & Destructor Documentation

◆ ~RockFluidOrganizationInterpretation()

virtual resqml2::RockFluidOrganizationInterpretation::~RockFluidOrganizationInterpretation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Reimplemented in resqml2_0_1::RockFluidOrganizationInterpretation, and resqml2_2::RockFluidOrganizationInterpretation.

Member Function Documentation

◆ getGridRepresentation()

AbstractGridRepresentation * resqml2::RockFluidOrganizationInterpretation::getGridRepresentation ( uint64_t index ) const

Gets a grid representation associated to this rock fluid organization by means of its index.

Exceptions

std::out_of_range If index >= getGridRepresentationCount().

Parameters

index Zero-based index of the grid representation to get in the array of grid representations of this rock fluid organization.

Returns: The associated grid representation at position index.

◆ getGridRepresentationCount()

uint64_t resqml2::RockFluidOrganizationInterpretation::getGridRepresentationCount ( ) const

Gets the count of grid representations associated to this rock fluid organization.

Exceptions

std::range_error If the count of associated grid representations is strictly greater than unsigned int max.

Returns: The count of grid representations associated to this rock fluid organization.

◆ getGridRepresentationSet()

std::vector< AbstractGridRepresentation * > resqml2::RockFluidOrganizationInterpretation::getGridRepresentationSet ( ) const

Gets the set of grid representations associated to this rock fluid organization.

Returns: A vector of pointers to the grid representations associated to this rock fluid organization.

◆ getRockFluidUnitInterpCount()

virtual uint64_t resqml2::RockFluidOrganizationInterpretation::getRockFluidUnitInterpCount ( ) const

pure virtual

Gets the count of rock fluid unit interpretations of this rock fluid organization.

Returns: The count of rock fluid unit interpretations of this rock fluid organization.

Implemented in resqml2_0_1::RockFluidOrganizationInterpretation, and resqml2_2::RockFluidOrganizationInterpretation.

◆ getRockFluidUnitInterpretation()

class RockFluidUnitInterpretation * resqml2::RockFluidOrganizationInterpretation::getRockFluidUnitInterpretation ( uint64_t index ) const

Gets a rock fluid unit interpretation of this rock fluid organization by means of its index.

Exceptions

std::out_of_range If index >= getRockFluidUnitInterpCount().

Parameters

index Zero-based index of the rock fluid unit interpretation we look for.

Returns: The rock fluid unit interpretation at position index.

◆ getRockFluidUnitInterpretationDor()

virtual common::DataObjectReference resqml2::RockFluidOrganizationInterpretation::getRockFluidUnitInterpretationDor ( uint64_t index ) const

pure virtual

Gets the DOR of a rock fluid unit interpretation of this rock fluid organization by means of its index.

Exceptions

std::out_of_range If index >= getRockFluidUnitInterpCount().

Parameters

index Zero-based index of the rock fluid unit interpretation for which we look for the DOR.

Returns: The DOR of the rock fluid unit interpretation at position index.

Implemented in resqml2_0_1::RockFluidOrganizationInterpretation, and resqml2_2::RockFluidOrganizationInterpretation.

◆ isAssociatedToGridRepresentation()

bool resqml2::RockFluidOrganizationInterpretation::isAssociatedToGridRepresentation ( AbstractGridRepresentation * gridRep ) const

Checks whether a given grid representation is associated to this rock fluid organization.

Parameters

[in] gridRep The grid representation for which we want to know if it is associated to this rock fluid organization.

Returns: True if gridRep is associated to this rock fluid organization, false if not.

◆ isRockFluid()

bool resqml2::RockFluidOrganizationInterpretation::isRockFluid ( ) const

inlinefinalvirtual

Indicates if this instance is a structural one. Needed by SWIG wrappers.

Reimplemented from resqml2::AbstractOrganizationInterpretation.

◆ pushBackRockFluidUnitInterpretation()

virtual void resqml2::RockFluidOrganizationInterpretation::pushBackRockFluidUnitInterpretation ( class RockFluidUnitInterpretation * rockFluidUnitInterpretation )

pure virtual

Pushes back a rock fluid unit interpretation in this rock fluid organization.

Exceptions

std::invalid_argument If rockFluidUnitInterpretation == nullptr.

Parameters

[in] rockFluidUnitInterpretation The rock fluid unit interpretation to push back.

Implemented in resqml2_0_1::RockFluidOrganizationInterpretation, and resqml2_2::RockFluidOrganizationInterpretation.

The documentation for this class was generated from the following file:

C:/Users/phili/dev/fesapi/fesapi-2.13.0.0/src/resqml2/RockFluidOrganizationInterpretation.h
