Proxy class for an abstract local 3D coordinate reference system (CRS). More...

#include <AbstractLocal3dCrs.h>

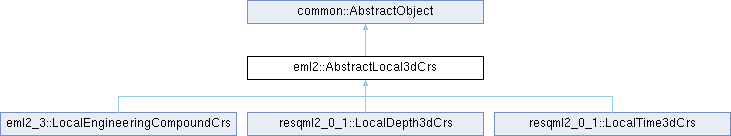

Inheritance diagram for eml2::AbstractLocal3dCrs:

Public Member Functions
virtual	~AbstractLocal3dCrs ()=default
double	getOriginOrdinal1 () const
double	getOriginOrdinal2 () const
double	getOriginDepthOrElevation () const
double	getArealRotation () const
bool	isDepthOriented () const
bool	isProjectedCrsDefinedWithEpsg () const
bool	isProjectedCrsDefinedWithWkt () const
virtual bool	isProjectedCrsUnknown () const
std::string	getProjectedCrsUnknownReason () const
std::string	getProjectedCrsWkt () const
uint64_t	getProjectedCrsEpsgCode () const
bool	isVerticalCrsDefinedWithEpsg () const
bool	isVerticalCrsDefinedWithWkt () const
bool	isVerticalCrsUnknown () const
std::string	getVerticalCrsUnknownReason () const
std::string	getVerticalCrsWkt () const
uint64_t	getVerticalCrsEpsgCode () const
gsoap_resqml2_0_1::eml20__PlaneAngleUom	getArealRotationUom () const
gsoap_resqml2_0_1::eml20__LengthUom	getProjectedCrsUnit () const
std::string	getProjectedCrsUnitAsString () const
gsoap_resqml2_0_1::eml20__LengthUom	getVerticalCrsUnit () const
std::string	getVerticalCrsUnitAsString () const
virtual bool	isATimeCrs () const =0
virtual gsoap_resqml2_0_1::eml20__TimeUom	getTimeUom () const =0
std::string	getTimeUomAsString () const
gsoap_eml2_3::eml23__AxisOrder2d	getAxisOrder () const
void	setAxisOrder (gsoap_eml2_3::eml23__AxisOrder2d axisOrder) const
void	convertXyzPointsToGlobalCrs (double *xyzPoints, uint64_t xyzPointCount, bool withoutTranslation=false) const
Public Member Functions inherited from common::AbstractObject
bool	isPartial () const
virtual bool	isTopLevelElement () const
std::string	getUuid () const
std::string	getTitle () const
std::string	getEditor () const
time_t	getCreation () const
tm	getCreationAsTimeStructure () const
std::string	getOriginator () const
std::string	getDescription () const
time_t	getLastUpdate () const
tm	getLastUpdateAsTimeStructure () const
std::string	getFormat () const
std::string	getDescriptiveKeywords () const
std::string	getVersion () const
void	setTitle (const std::string &title)
void	setEditor (const std::string &editor)
void	setCreation (time_t creation)
void	setCreation (const tm &creation)
void	setOriginator (const std::string &originator)
void	setDescription (const std::string &description)
void	setLastUpdate (time_t lastUpdate)
void	setLastUpdate (const tm &lastUpdate)
void	setDescriptiveKeywords (const std::string &descriptiveKeywords)
void	setVersion (const std::string &version)
void	setMetadata (const std::string &title, const std::string &editor, time_t creation, const std::string &originator, const std::string &description, time_t lastUpdate, const std::string &descriptiveKeywords)
void	serializeIntoStream (std::ostream *stream)
gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *	getEml20GsoapProxy () const
void	setGsoapProxy (gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *gsoapProxy)
gsoap_eml2_3::eml23__AbstractObject *	getEml23GsoapProxy () const
void	setGsoapProxy (gsoap_eml2_3::eml23__AbstractObject *gsoapProxy)
soap *	getGsoapContext () const
int	getGsoapType () const
gsoap_resqml2_0_1::eml20__DataObjectReference *	newResqmlReference () const
gsoap_eml2_3::eml23__DataObjectReference *	newEml23Reference () const
gsoap_resqml2_0_1::resqml20__ContactElementReference *	newContactElementReference2_0_1 () const
gsoap_eml2_3::resqml22__ContactElement *	newContactElementReference2_2 () const
common::DataObjectRepository *	getRepository () const
virtual std::string	getXmlNamespace () const =0
virtual std::string	getXmlTag () const =0
virtual std::string	getXmlNamespaceVersion () const
virtual std::string	getContentType () const
virtual std::string	getQualifiedType () const
virtual std::string	getPartNameInEpcDocument () const
std::string	serializeIntoString ()
void	addAlias (const std::string &authority, const std::string &title)
uint64_t	getAliasCount () const
std::string	getAliasAuthorityAtIndex (uint64_t index) const
std::string	getAliasTitleAtIndex (uint64_t index) const
std::vector< eml2::Activity * >	getActivitySet () const
uint64_t	getActivityCount () const
eml2::Activity *	getActivity (uint64_t index) const
void	pushBackExtraMetadata (const std::string &key, const std::string &value)
std::unordered_map< std::string, std::string >	getExtraMetadataSet () const
std::vector< std::string >	getExtraMetadata (const std::string &key) const
uint64_t	getExtraMetadataCount () const
std::string	getExtraMetadataKeyAtIndex (uint64_t index) const
std::string	getExtraMetadataStringValueAtIndex (uint64_t index) const
std::string	buildEtp12Uri () const
void	setUriSource (const std::string &uriSource)
const std::string &	getUriSource () const
std::string	getEpcSourceFolder () const
void	changeToPartialObject ()
virtual void	loadTargetRelationships ()=0

Additional Inherited Members
Public Types inherited from common::AbstractObject
enum class	numericalDatatypeEnum { UNKNOWN = 0 , DOUBLE = 1 , FLOAT = 2 , INT64 = 3 , UINT64 = 4 , INT32 = 5 , UINT32 = 6 , INT16 = 7 , UINT16 = 8 , INT8 = 9 , UINT8 = 10 }
Static Public Member Functions inherited from common::AbstractObject
static void	setFormat (const std::string &vendor, const std::string &applicationName, const std::string &applicationVersionNumber)

Detailed Description

Proxy class for an abstract local 3D coordinate reference system (CRS).

Constructor & Destructor Documentation

◆ ~AbstractLocal3dCrs()

virtual eml2::AbstractLocal3dCrs::~AbstractLocal3dCrs ( )

virtualdefault

Destructor does nothing since the memory is manged by the gsoap context.

Member Function Documentation

◆ convertXyzPointsToGlobalCrs()

void eml2::AbstractLocal3dCrs::convertXyzPointsToGlobalCrs	(	double *	xyzPoints,
		uint64_t	xyzPointCount,
		bool	withoutTranslation = false ) const

Convert some xyz points from local to global CRS.

Parameters

[in,out]	xyzPoints	An array of xyz points. The i-th point is defined by (x, y, z) = (xyzPoints[i], xyzPoints[i+1], xyzPoints[i+2]).
	xyzPointCount	The number of xyz points. Must be equal to the size of `xyzPoints` divided by 3.
	withoutTranslation	(Optional) True to only compute the rotation (no translation is computed). Default value if false.

◆ getArealRotation()

double eml2::AbstractLocal3dCrs::getArealRotation ( ) const

Get the rotation in radians of the local Y axis relative to the global projected Y axis which is 90 degrees counter-clockwise from the other global axis. A positive value indicates a clockwise rotation from the global axis. A negative value indicates a counterclockwise rotation form the global axis.

Returns: The areal rotation.

◆ getArealRotationUom()

gsoap_resqml2_0_1::eml20__PlaneAngleUom eml2::AbstractLocal3dCrs::getArealRotationUom ( ) const

Gets the areal rotation unit of measure.

Returns: The areal rotation unit of measure.

◆ getAxisOrder()

gsoap_eml2_3::eml23__AxisOrder2d eml2::AbstractLocal3dCrs::getAxisOrder ( ) const

Gets the axis order of the projected CRS.

Returns: The axis order of the projected CRS.

◆ getOriginDepthOrElevation()

double eml2::AbstractLocal3dCrs::getOriginDepthOrElevation ( ) const

Get the depth or elevation origin of this local CRS. This is Z offset of the origin of the local vertical axis relative to the vertical CRS origin. According to CRS type (depth or time) it corresponds to the depth or time datum. If this local CRS is a time CRS, this value defines the seismic reference datum. The unit of measure is defined by the unit of measure for the vertical CRS

Returns: The origin depth or elevation.

◆ getOriginOrdinal1()

double eml2::AbstractLocal3dCrs::getOriginOrdinal1 ( ) const

Gets the first origin ordinal of this local CRS. This is the X location of the origin of the local areal axes relative to the projected CRS origin. The unit of measure is defined by the unit of measure for the projected 2d CRS.

Returns: The first origin ordinal of this local CRS.

◆ getOriginOrdinal2()

double eml2::AbstractLocal3dCrs::getOriginOrdinal2 ( ) const

Gets the second origin ordinal of this local CRS. This is the Y location of the origin of the local areal axes relative to the projected CRS origin. The unit of measure is defined by the unit of measure for the projected 2d CRS.

Returns: The second origin ordinal of this local CRS.

◆ getProjectedCrsEpsgCode()

uint64_t eml2::AbstractLocal3dCrs::getProjectedCrsEpsgCode ( ) const

Gets the EPSG code of the projected CRS

Exceptions

std::invalid_argument If the associated projected CRS is not an EPSG one.

Returns: The projected CRS EPSG code.

◆ getProjectedCrsUnit()

gsoap_resqml2_0_1::eml20__LengthUom eml2::AbstractLocal3dCrs::getProjectedCrsUnit ( ) const

Gets the projected CRS unit of measure.

Returns: The projected CRS unit unit of measure.

◆ getProjectedCrsUnitAsString()

std::string eml2::AbstractLocal3dCrs::getProjectedCrsUnitAsString ( ) const

Gets the projected CRS unit of measure as a string

Returns: The projected CRS unit of measure as string.

◆ getProjectedCrsUnknownReason()

std::string eml2::AbstractLocal3dCrs::getProjectedCrsUnknownReason ( ) const

Gets the reason why the projected CRS is unknown.

Exceptions

std::invalid_argument If the associated projected CRS is not unknown.

Returns: The projected CRS unknown reason.

◆ getProjectedCrsWkt()

std::string eml2::AbstractLocal3dCrs::getProjectedCrsWkt ( ) const

Gets the WKT of the projected CRS

Exceptions

std::invalid_argument If the associated projected CRS is not a WKT one.

Returns: The projected CRS WKT.

◆ getTimeUom()

virtual gsoap_resqml2_0_1::eml20__TimeUom eml2::AbstractLocal3dCrs::getTimeUom ( ) const

pure virtual

Gets the unit of measure of the third axis of this local CRS if it is a time CRS. Otherwise throw an exception (if isATimeCrs() returns false)

Returns: The time unit of measure of the third axis.

Implemented in eml2_3::LocalEngineeringCompoundCrs, resqml2_0_1::LocalDepth3dCrs, and resqml2_0_1::LocalTime3dCrs.

◆ getTimeUomAsString()

std::string eml2::AbstractLocal3dCrs::getTimeUomAsString ( ) const

Gets the unit of measure as a sting of the third axis of this local CRS if it is a time CRS. Otherwise throw an exception (if isATimeCrs() returns false)

Returns: The time unit of measure of the third axis.

◆ getVerticalCrsEpsgCode()

uint64_t eml2::AbstractLocal3dCrs::getVerticalCrsEpsgCode ( ) const

Gets the EPSG code of the vertical CRS

Exceptions

std::invalid_argument If the associated projected CRS is not an EPSG one.

Returns: The vertical CRS EPSG code.

◆ getVerticalCrsUnit()

gsoap_resqml2_0_1::eml20__LengthUom eml2::AbstractLocal3dCrs::getVerticalCrsUnit ( ) const

Gets the vertical CRS unit of measure.

Returns: The vertical CRS unit of measure.

◆ getVerticalCrsUnitAsString()

std::string eml2::AbstractLocal3dCrs::getVerticalCrsUnitAsString ( ) const

Gets the vertical CRS unit of measure as a string

Returns: The vertical CRS unit of measure as string.

◆ getVerticalCrsUnknownReason()

std::string eml2::AbstractLocal3dCrs::getVerticalCrsUnknownReason ( ) const

Gets the reason why the vertical CRS is unknown.

Exceptions

std::invalid_argument If the associated vertical CRS is not unknown.

Returns: The vertical CRS unknown reason.

◆ getVerticalCrsWkt()

std::string eml2::AbstractLocal3dCrs::getVerticalCrsWkt ( ) const

Gets the WKT of the vertical CRS

Exceptions

std::invalid_argument If the associated projected CRS is not a WKT one.

Returns: The vertical CRS WKT.

◆ isATimeCrs()

virtual bool eml2::AbstractLocal3dCrs::isATimeCrs ( ) const

pure virtual

Check if the third axis of this local 3d CRS is in timeor not.

Returns: True if this local 3d CRS is a time one. False if it is a depth/elevation one.

Implemented in eml2_3::LocalEngineeringCompoundCrs, resqml2_0_1::LocalDepth3dCrs, and resqml2_0_1::LocalTime3dCrs.

◆ isDepthOriented()

bool eml2::AbstractLocal3dCrs::isDepthOriented ( ) const

Indicates that Z values correspond to depth values and are increasing downward, as opposite to elevation values increasing upward. When the vertical CRS is known, it must correspond to the axis orientation of the vertical CRS.

Returns: True if Z values are depth oriented, false if not.

◆ isProjectedCrsDefinedWithEpsg()

bool eml2::AbstractLocal3dCrs::isProjectedCrsDefinedWithEpsg ( ) const

Indicates either the associated projected CRS is identified by means of an EPSG code or not.

Returns: True if the projected CRS is defined with an EPSG code, false if not.

◆ isProjectedCrsDefinedWithWkt()

bool eml2::AbstractLocal3dCrs::isProjectedCrsDefinedWithWkt ( ) const

Indicates either the associated projected CRS is given in a WKT format or not.

Returns: True if the projected CRS is given in a WKT format, false if not.

◆ isProjectedCrsUnknown()

virtual bool eml2::AbstractLocal3dCrs::isProjectedCrsUnknown ( ) const

virtual

Indicates either the associated projected CRS is unknown or not.

Returns: True if projected CRS is unknown, false if not.

◆ isVerticalCrsDefinedWithEpsg()

bool eml2::AbstractLocal3dCrs::isVerticalCrsDefinedWithEpsg ( ) const

Indicates either the associated vertical CRS is identified by means of EPSG or not.

Returns: True if the vertical CRS is defined with an EPSG code, false if not.

◆ isVerticalCrsDefinedWithWkt()

bool eml2::AbstractLocal3dCrs::isVerticalCrsDefinedWithWkt ( ) const

Indicates either the associated vertical CRS is given in a WKT format or not.

Returns: True if the vertical CRS is given in a WKT format, false if not.

◆ isVerticalCrsUnknown()

bool eml2::AbstractLocal3dCrs::isVerticalCrsUnknown ( ) const

Indicates either the associated vertical CRS is unknown or not.

Returns: True if vertical CRS is unknown, false if not.

◆ setAxisOrder()

void eml2::AbstractLocal3dCrs::setAxisOrder ( gsoap_eml2_3::eml23__AxisOrder2d axisOrder ) const

Sets the axis order of the projected CRS. It defines the coordinate system axis order of the global projected CRS when the projected CRS is an unknown CRS, else it must correspond to the axis order of the projected CRS.

Parameters

axisOrder The axis order to set.

The documentation for this class was generated from the following file:

C:/Users/phili/dev/fesapi/fesapi-2.13.0.0/src/eml2/AbstractLocal3dCrs.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~AbstractLocal3dCrs()

Member Function Documentation

◆ convertXyzPointsToGlobalCrs()

◆ getArealRotation()

◆ getArealRotationUom()

◆ getAxisOrder()

◆ getOriginDepthOrElevation()

◆ getOriginOrdinal1()

◆ getOriginOrdinal2()

◆ getProjectedCrsEpsgCode()

◆ getProjectedCrsUnit()

◆ getProjectedCrsUnitAsString()

◆ getProjectedCrsUnknownReason()

◆ getProjectedCrsWkt()

◆ getTimeUom()

◆ getTimeUomAsString()

◆ getVerticalCrsEpsgCode()

◆ getVerticalCrsUnit()

◆ getVerticalCrsUnitAsString()

◆ getVerticalCrsUnknownReason()

◆ getVerticalCrsWkt()

◆ isATimeCrs()

◆ isDepthOriented()

◆ isProjectedCrsDefinedWithEpsg()

◆ isProjectedCrsDefinedWithWkt()

◆ isProjectedCrsUnknown()

◆ isVerticalCrsDefinedWithEpsg()

◆ isVerticalCrsDefinedWithWkt()

◆ isVerticalCrsUnknown()

◆ setAxisOrder()
