A non sealed surface framework representation is collection of contact representations parts, which are a list of contact patches with no identity. This collection of contact representations is completed by a set of representations gathered at the representation set representation level. More...

#include <NonSealedSurfaceFrameworkRepresentation.h>

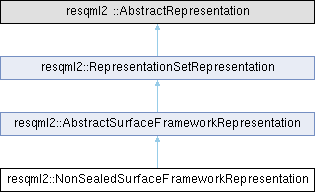

Inheritance diagram for resqml2::NonSealedSurfaceFrameworkRepresentation:

Public Member Functions
virtual	~NonSealedSurfaceFrameworkRepresentation ()=default

virtual void	pushBackNonSealedContactRepresentation (unsigned int pointCount, double const points, eml2 ::AbstractHdfProxy proxy=nullptr, resqml2 ::AbstractLocal3dCrs *localCrs=nullptr)=0

virtual unsigned int	getContactCount () const override=0

virtual std::string	getXmlTag () const final

Public Member Functions inherited from resqml2::AbstractSurfaceFrameworkRepresentation
virtual	~AbstractSurfaceFrameworkRepresentation ()=default

void	pushBackContactIdentity (gsoap_resqml2_0_1::resqml20__IdentityKind kind, uint64_t contactCount, int const contactIndices, eml2 ::AbstractHdfProxy proxy)

void	pushBackContactIdentity (gsoap_resqml2_0_1::resqml20__IdentityKind kind, uint64_t contactCount, int const contactIndices, unsigned int identicalNodesCount, int const identicalNodesIndexes, eml2 ::AbstractHdfProxy *proxy)

unsigned int	getContactIdentityCount () const

gsoap_resqml2_0_1::resqml20__IdentityKind	getContactIdentityKind (unsigned int ciIndex) const

unsigned int	getContactCountInContactIdentity (unsigned int ciIndex) const

void	getContactIndices (unsigned int ciIndex, unsigned int *contactRepIndices) const

bool	areAllContactNodesIdentical (unsigned int ciIndex) const

unsigned int	getIdenticalContactNodeCount (unsigned int ciIndex) const

void	getIdenticalContactNodeIndices (unsigned int ciIndex, unsigned int *nodeIndices) const

Public Member Functions inherited from resqml2::RepresentationSetRepresentation
virtual	~RepresentationSetRepresentation ()=default

common::DataObjectReference	getHdfProxyDor () const final

uint64_t	getXyzPointCountOfPatch (unsigned int patchIndex) const override

void	getXyzPointsOfPatch (unsigned int patchIndex, double *xyzPoints) const override

uint64_t	getPatchCount () const override

bool	isHomogeneous () const

uint64_t	getRepresentationCount () const

resqml2::AbstractRepresentation *	getRepresentation (uint64_t index) const

common::DataObjectReference	getRepresentationDor (uint64_t index) const

void	pushBack (resqml2 ::AbstractRepresentation *rep)

virtual void	loadTargetRelationships () override

Static Public Attributes
static constexpr char const *	XML_TAG = "NonSealedSurfaceFrameworkRepresentation"

Static Public Attributes inherited from resqml2::RepresentationSetRepresentation
static const char *	XML_TAG

Detailed Description

A non sealed surface framework representation is collection of contact representations parts, which are a list of contact patches with no identity. This collection of contact representations is completed by a set of representations gathered at the representation set representation level.

Constructor & Destructor Documentation

◆ ~NonSealedSurfaceFrameworkRepresentation()

virtual resqml2::NonSealedSurfaceFrameworkRepresentation::~NonSealedSurfaceFrameworkRepresentation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Member Function Documentation

◆ getContactCount()

virtual unsigned int resqml2::NonSealedSurfaceFrameworkRepresentation::getContactCount ( ) const

overridepure virtual

Gets the count of contacts in this framework.

Exceptions

std::range_error If the count of contacts is strictly greater than unsigned int max.

Returns: The count of contacts in this framework.

Implements resqml2::AbstractSurfaceFrameworkRepresentation.

◆ getXmlTag()

virtual std::string resqml2::NonSealedSurfaceFrameworkRepresentation::getXmlTag ( ) const

inlinefinalvirtual

Reimplemented from resqml2::RepresentationSetRepresentation.

◆ pushBackNonSealedContactRepresentation()

virtual void resqml2::NonSealedSurfaceFrameworkRepresentation::pushBackNonSealedContactRepresentation	(	unsigned int	pointCount,
		double const *	points,
		eml2 ::AbstractHdfProxy *	proxy = nullptr,
		resqml2 ::AbstractLocal3dCrs *	localCrs = nullptr )

pure virtual

Pushes back a contact representation in this structural framework

Exceptions

std::invalid_argument	If `pointCount` is `0`.
std::invalid_argument	If `points` is `nullptr`.
std::invalid_argument	If `proxy` is `nullptr` and no default HDF proxy is defined in the repository.
std::invalid_argument	If `localCrs` is `nullptr` and no default local 3d CRS is defined in the repository.

Parameters

	pointCount	The number of points in the contact representation.
[in]	points	The `(x, y, z)` points of the contact representation. Count is `pointCount * 3` and for each contact point `(x, y, z) = (points[2i], points[2i+1], points[2i+2])`.
[in,out]	proxy	(Optional) The HDF proxy where the numerical values (contact points coordinates) are stored. If `nullptr` (default), then the default HDF proxy of the repository will be used.
[in,out]	localCrs	(Optional) The local 3d CRS on which the geometry of the contact representation is based on. If `nullptr` (default), then the default local 3d CRS of the repository will be used.

Member Data Documentation

◆ XML_TAG

constexpr char const* resqml2::NonSealedSurfaceFrameworkRepresentation::XML_TAG = "NonSealedSurfaceFrameworkRepresentation"

staticconstexpr

The standard XML tag without XML namespace for serializing this data object.

The documentation for this class was generated from the following file:

C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/NonSealedSurfaceFrameworkRepresentation.h
