Parent class for a sealed or non-sealed surface framework representation. Each one instantiates a representation set representation. The difference between the sealed and non- sealed frameworks is that, in the non-sealed case, we do not have all of the contacts, or we have all of the contacts but they are not all sealed. More...

#include <AbstractSurfaceFrameworkRepresentation.h>

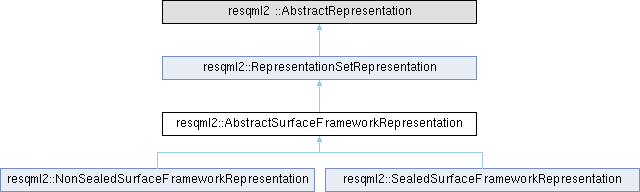

Inheritance diagram for resqml2::AbstractSurfaceFrameworkRepresentation:

Public Member Functions
virtual	~AbstractSurfaceFrameworkRepresentation ()=default

void	pushBackContactIdentity (gsoap_resqml2_0_1::resqml20__IdentityKind kind, uint64_t contactCount, int const contactIndices, eml2 ::AbstractHdfProxy proxy)

void	pushBackContactIdentity (gsoap_resqml2_0_1::resqml20__IdentityKind kind, uint64_t contactCount, int const contactIndices, unsigned int identicalNodesCount, int const identicalNodesIndexes, eml2 ::AbstractHdfProxy *proxy)

virtual unsigned int	getContactCount () const =0

unsigned int	getContactIdentityCount () const

gsoap_resqml2_0_1::resqml20__IdentityKind	getContactIdentityKind (unsigned int ciIndex) const

unsigned int	getContactCountInContactIdentity (unsigned int ciIndex) const

void	getContactIndices (unsigned int ciIndex, unsigned int *contactRepIndices) const

bool	areAllContactNodesIdentical (unsigned int ciIndex) const

unsigned int	getIdenticalContactNodeCount (unsigned int ciIndex) const

void	getIdenticalContactNodeIndices (unsigned int ciIndex, unsigned int *nodeIndices) const

Public Member Functions inherited from resqml2::RepresentationSetRepresentation
virtual	~RepresentationSetRepresentation ()=default

common::DataObjectReference	getHdfProxyDor () const final

uint64_t	getXyzPointCountOfPatch (unsigned int patchIndex) const override

void	getXyzPointsOfPatch (unsigned int patchIndex, double *xyzPoints) const override

uint64_t	getPatchCount () const override

bool	isHomogeneous () const

uint64_t	getRepresentationCount () const

resqml2::AbstractRepresentation *	getRepresentation (uint64_t index) const

common::DataObjectReference	getRepresentationDor (uint64_t index) const

void	pushBack (resqml2 ::AbstractRepresentation *rep)

virtual std::string	getXmlTag () const override

virtual void	loadTargetRelationships () override

Additional Inherited Members
Static Public Attributes inherited from resqml2::RepresentationSetRepresentation
static const char *	XML_TAG

Detailed Description

Parent class for a sealed or non-sealed surface framework representation. Each one instantiates a representation set representation. The difference between the sealed and non- sealed frameworks is that, in the non-sealed case, we do not have all of the contacts, or we have all of the contacts but they are not all sealed.

Constructor & Destructor Documentation

◆ ~AbstractSurfaceFrameworkRepresentation()

virtual resqml2::AbstractSurfaceFrameworkRepresentation::~AbstractSurfaceFrameworkRepresentation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Member Function Documentation

◆ areAllContactNodesIdentical()

bool resqml2::AbstractSurfaceFrameworkRepresentation::areAllContactNodesIdentical ( unsigned int ciIndex ) const

Checks if all nodes of contacts are identical in a particular contact identity.

Exceptions

std::out_of_range	If `ciIndex` is out of range.
std::logic_error	If the RESQML version is unknown.

Parameters

ciIndex Zero-based index of the contact identity in the contact identity list.

Returns: True if all nodes of contacts are identical else false.

◆ getContactCount()

virtual unsigned int resqml2::AbstractSurfaceFrameworkRepresentation::getContactCount ( ) const

pure virtual

Gets the count of contacts in this framework.

Exceptions

std::range_error If the count of contacts is strictly greater than unsigned int max.

Returns: The count of contacts in this framework.

Implemented in resqml2::NonSealedSurfaceFrameworkRepresentation, and resqml2::SealedSurfaceFrameworkRepresentation.

◆ getContactCountInContactIdentity()

unsigned int resqml2::AbstractSurfaceFrameworkRepresentation::getContactCountInContactIdentity ( unsigned int ciIndex ) const

Gets the count of contacts of a particular contact identity.

Exceptions

std::out_of_range	If `ciIndex` is out of range.
std::range_error	If the count of contacts is strictly greater than unsigned int max.
std::logic_error	If the RESQML version is unknown.

Parameters

ciIndex Zero-based index of the contact identity in the contact identity list.

Returns: The count of contacts of the contact identity at position ciIndex.

◆ getContactIdentityCount()

unsigned int resqml2::AbstractSurfaceFrameworkRepresentation::getContactIdentityCount ( ) const

Gets the count of contact identities in this framework.

Exceptions

std::range_error If the count of contacts identities is strictly greater than unsigned int max.

Returns: The count of contact identities in this framework.

◆ getContactIdentityKind()

gsoap_resqml2_0_1::resqml20__IdentityKind resqml2::AbstractSurfaceFrameworkRepresentation::getContactIdentityKind ( unsigned int ciIndex ) const

Gets the kind of a contact identity located at a particular index.

Exceptions

std::out_of_range	If `ciIndex` is out of range.
std::logic_error	If the RESQML version is unknown.

Parameters

ciIndex Zero-based index of the contact identity in the contact identity list.

Returns: The kind of the contact identity at position ciIndex in the contact identity list.

◆ getContactIndices()

void resqml2::AbstractSurfaceFrameworkRepresentation::getContactIndices	(	unsigned int	ciIndex,
		unsigned int *	contactRepIndices ) const

Gets the contact indices of a particular contact identity. The returned indices are in the interval [0..getContactCount()[.

Exceptions

std::out_of_range	If `ciIndex` is out of range.
std::logic_error	If the RESQML version is unknown.

Parameters

	ciIndex	Zero-based index of the contact identity in the contact identity list.
[out]	contactRepIndices	An array to receive contact indices. It must be preallocated with getContactCountInContactIdentity(). It won't be deleted by fesapi.

◆ getIdenticalContactNodeCount()

unsigned int resqml2::AbstractSurfaceFrameworkRepresentation::getIdenticalContactNodeCount ( unsigned int ciIndex ) const

Gets the count of all identical nodes of a particular contact identity.

Exceptions

std::invalid_argument	If all nodes are identical (see areAllContactNodesIdentical()).
std::out_of_range	If `ciIndex` is out of range.
std::logic_error	If the RESQML version is unknown.
std::range_error	If the count of identical nodes is strictly greater than `unsigned int` max.

Parameters

ciIndex Zero-based index of the contact identity in the contact identity list.

Returns: The count of identical nodes of a particular contact identity.

◆ getIdenticalContactNodeIndices()

void resqml2::AbstractSurfaceFrameworkRepresentation::getIdenticalContactNodeIndices	(	unsigned int	ciIndex,
		unsigned int *	nodeIndices ) const

Gets the indices of all identical nodes of a particular contact identity.

Exceptions

std::invalid_argument	If if all nodes are identical (see areAllContactRepNodesIdenticalInContactIdentity()).
std::out_of_range	If `ciIndex` is out of range.
std::logic_error	If the RESQML version is unknown.

Parameters

	ciIndex	ciIndex Zero-based index of the contact identity in the contact identity list.
[out]	nodeIndices	An array to receive the identical nodes indices. It must be preallocated with a count of getIdenticalContactNodeCount(). It won't be deleted by fesapi.

◆ pushBackContactIdentity() [1/2]

void resqml2::AbstractSurfaceFrameworkRepresentation::pushBackContactIdentity	(	gsoap_resqml2_0_1::resqml20__IdentityKind	kind,
		uint64_t	contactCount,
		int const *	contactIndices,
		eml2 ::AbstractHdfProxy *	proxy )

Pushes back a contact identity in this structural framework with implicit identical nodes.

Exceptions

std::invalid_argument	If `proxy` is `nullptr` and no default HDF proxy is defined into the data object repository.
std::logic_error	If the RESQML version is unknown.

Parameters

	kind	The identity kind (colocation, previous colocation, equivalence or previous equivalence).
	contactCount	The number of sealed contact representations involved within the identity.
	contactIndices	The indices of the sealed contact representations involved within the identity. Count is `contactCount`.
[in,out]	proxy	The HDF proxy where to write the `contactIndices` values. If `nullptr`, then a default HDF proxy must be defined in the repository.

◆ pushBackContactIdentity() [2/2]

void resqml2::AbstractSurfaceFrameworkRepresentation::pushBackContactIdentity	(	gsoap_resqml2_0_1::resqml20__IdentityKind	kind,
		uint64_t	contactCount,
		int const *	contactIndices,
		unsigned int	identicalNodesCount,
		int const *	identicalNodesIndexes,
		eml2 ::AbstractHdfProxy *	proxy )

Push back a contact identity in this structural framework.

Exceptions

std::invalid_argument	If `proxy` is `nullptr` and no default HDF proxy is defined into the data object repository.
std::logic_error	If the RESQML version is unknown.

Parameters

	kind	The identity kind (colocation, previous colocation, equivalence or previous equivalence).
	contactCount	The number of sealed contact representations involved within the identity.
	contactIndices	The indices of the sealed contact representations involved within the identity. Count is `contactCount`.
	identicalNodesCount	The number of identical nodes.
	identicalNodesIndexes	Indicates which nodes (identified by their common index in all contact representations) of the contact representations are identical. Count is `identicalNodesCount`.
[in,out]	proxy	The HDF proxy where to write the `contactIndices` and `identicalNodesIndexes` values. Id f `nullptr`, then a default HDF proxy must be defined in the repository.

The documentation for this class was generated from the following file:

C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/AbstractSurfaceFrameworkRepresentation.h
