Fesapi 2.9.0.1
This project provides C++ classes which allow an easy access in import and export to the Energistics standards.
Loading...
Searching...
No Matches
Public Member Functions | Static Public Attributes | List of all members
resqml2::BoundaryFeatureInterpretation Class Reference

A boundary feature interpretation. This is the main class for data describing an opinion of a surface feature between two volumes. More...

#include <BoundaryFeatureInterpretation.h>

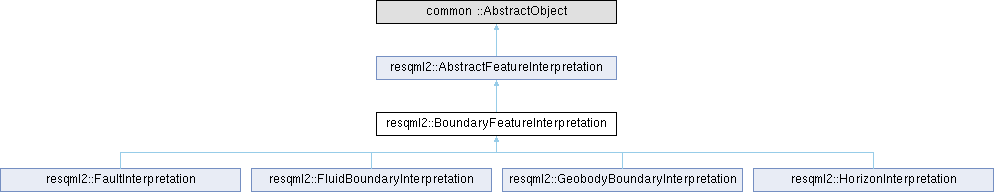

Inheritance diagram for resqml2::BoundaryFeatureInterpretation:
resqml2::AbstractFeatureInterpretation resqml2::FaultInterpretation resqml2::FluidBoundaryInterpretation resqml2::GeobodyBoundaryInterpretation resqml2::HorizonInterpretation

Public Member Functions

virtual ~BoundaryFeatureInterpretation ()=default

virtual std::string getXmlTag () const override

- Public Member Functions inherited from resqml2::AbstractFeatureInterpretation
virtual ~AbstractFeatureInterpretation ()=default

common::DataObjectReference getInterpretedFeatureDor () const

void setInterpretedFeature (AbstractFeature *feature)

AbstractFeature * getInterpretedFeature () const

gsoap_resqml2_0_1::resqml20__Domain initDomain (gsoap_resqml2_0_1::resqml20__Domain defaultDomain) const

gsoap_resqml2_0_1::resqml20__Domain getDomain () const

std::vector< AbstractRepresentation * > getRepresentationSet () const

uint64_t getRepresentationCount () const noexcept

AbstractRepresentation * getRepresentation (uint64_t index) const

std::vector< GridConnectionSetRepresentation * > getGridConnectionSetRepresentationSet () const

virtual void loadTargetRelationships () override


Static Public Attributes

static constexpr char const * XML_TAG = "BoundaryFeatureInterpretation"


Detailed Description

A boundary feature interpretation. This is the main class for data describing an opinion of a surface feature between two volumes.

BUSINESS RULE: The data-object reference (of type "interprets") must reference only a boundary feature.

Constructor & Destructor Documentation

◆ ~BoundaryFeatureInterpretation()

virtual resqml2::BoundaryFeatureInterpretation::~BoundaryFeatureInterpretation ( )
virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Member Data Documentation

◆ XML_TAG

constexpr char const* resqml2::BoundaryFeatureInterpretation::XML_TAG = "BoundaryFeatureInterpretation"
staticconstexpr

The standard XML tag without XML namespace for serializing this data object.

The documentation for this class was generated from the following file:
