A non sealed surface framework representation is collection of contact representations parts, which are a list of contact patches with no identity. This collection of contact representations is completed by a set of representations gathered at the representation set representation level. More...

#include <NonSealedSurfaceFrameworkRepresentation.h>

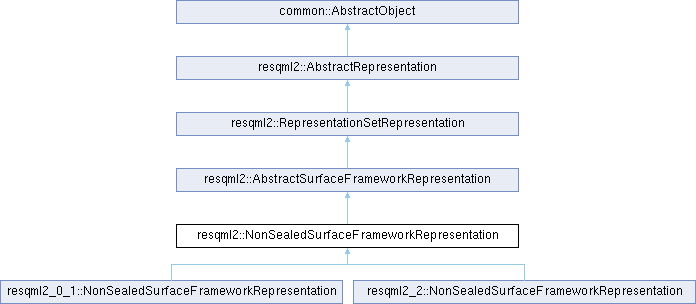

Inheritance diagram for resqml2::NonSealedSurfaceFrameworkRepresentation:

Public Member Functions
virtual	~NonSealedSurfaceFrameworkRepresentation ()=default
virtual void	pushBackNonSealedContactRepresentation (unsigned int pointCount, double const points, eml2::AbstractHdfProxy proxy=nullptr, eml2::AbstractLocal3dCrs *localCrs=nullptr)=0
virtual unsigned int	getContactCount () const override=0
virtual std::string	getXmlTag () const final
Public Member Functions inherited from resqml2::AbstractSurfaceFrameworkRepresentation
virtual	~AbstractSurfaceFrameworkRepresentation ()=default
void	pushBackContactIdentity (gsoap_resqml2_0_1::resqml20__IdentityKind kind, uint64_t contactCount, int const contactIndices, eml2::AbstractHdfProxy proxy)
void	pushBackContactIdentity (gsoap_resqml2_0_1::resqml20__IdentityKind kind, uint64_t contactCount, int const contactIndices, unsigned int identicalNodesCount, int const identicalNodesIndexes, eml2::AbstractHdfProxy *proxy)
unsigned int	getContactIdentityCount () const
gsoap_resqml2_0_1::resqml20__IdentityKind	getContactIdentityKind (unsigned int ciIndex) const
unsigned int	getContactCountInContactIdentity (unsigned int ciIndex) const
void	getContactIndices (unsigned int ciIndex, unsigned int *contactRepIndices) const
bool	areAllContactNodesIdentical (unsigned int ciIndex) const
unsigned int	getIdenticalContactNodeCount (unsigned int ciIndex) const
void	getIdenticalContactNodeIndices (unsigned int ciIndex, unsigned int *nodeIndices) const
Public Member Functions inherited from resqml2::RepresentationSetRepresentation
virtual	~RepresentationSetRepresentation ()=default
common::DataObjectReference	getHdfProxyDor () const final
uint64_t	getXyzPointCountOfPatch (unsigned int patchIndex) const override
void	getXyzPointsOfPatch (unsigned int patchIndex, double *xyzPoints) const override
uint64_t	getPatchCount () const override
bool	isHomogeneous () const
uint64_t	getRepresentationCount () const
resqml2::AbstractRepresentation *	getRepresentation (uint64_t index) const
common::DataObjectReference	getRepresentationDor (uint64_t index) const
void	pushBack (resqml2::AbstractRepresentation *rep)
virtual void	loadTargetRelationships () override
Public Member Functions inherited from resqml2::AbstractRepresentation
virtual	~AbstractRepresentation ()=default
eml2::AbstractLocal3dCrs *	getLocalCrs (uint64_t patchIndex) const
virtual common::DataObjectReference	getLocalCrsDor (uint64_t patchIndex) const
void	setTimeIndex (uint64_t timeIndex, eml2::TimeSeries *timeSeries)
uint64_t	getTimeIndex () const
	Gets the time index of this representation in the associated TimeSeries. Be sure to first check that a TimeSeries is associated this representation by calling getTimeSeriesDor or getTimeSeries;.
eml2::TimeSeries *	getTimeSeries () const
common::DataObjectReference	getTimeSeriesDor () const
	Gets the data object reference of the TimeSeries containing the time of this representation at a particular index. For now, this method only look for a TimeSeries at the first patch containing a point geometry.
std::vector< class AbstractProperty * >	getPropertySet () const
void	setInterpretation (class AbstractFeatureInterpretation *interp)
class AbstractFeatureInterpretation *	getInterpretation () const
common::DataObjectReference	getInterpretationDor () const
uint64_t	getXyzPointCountOfAllPatches () const
void	getXyzPointsOfPatchInGlobalCrs (unsigned int patchIndex, double *xyzPoints) const
	Gets all the xyz points of a particular patch of this representation. xyz points are given in the global CRS.
void	getXyzPointsOfAllPatches (double *xyzPoints) const
	Gets all the xyz points of all patches of this representation. xyz points are given in the local CRS.
bool	isInSingleLocalCrs () const
bool	isInSingleGlobalCrs () const
void	getXyzPointsOfAllPatchesInGlobalCrs (double *xyzPoints) const
AbstractRepresentation *	getSeismicSupportOfPatch (const unsigned int &patchIndex) const
std::set< AbstractRepresentation * >	getAllSeismicSupport () const
void	pushBackIntoRepresentationSet (class RepresentationSetRepresentation *repSet)
void	addSeismic3dCoordinatesToPatch (unsigned int patchIndex, double inlines, double crosslines, uint64_t pointCount, resqml2::AbstractRepresentation seismicSupport, eml2::AbstractHdfProxy proxy)
void	addSeismic3dCoordinatesToPatch (unsigned int patchIndex, double startInline, double incrInline, unsigned int countInline, double startCrossline, double incrCrossline, unsigned int countCrossline, resqml2::AbstractRepresentation *seismicSupport)
void	addSeismic2dCoordinatesToPatch (unsigned int patchIndex, double lineAbscissa, resqml2::AbstractRepresentation seismicSupport, eml2::AbstractHdfProxy *proxy)
void	getSeismicLineAbscissaOfPointsOfPatch (unsigned int patchIndex, double *values) const
void	getInlinesOfPointsOfPatch (unsigned int patchIndex, double *values) const
void	getCrosslinesOfPointsOfPatch (unsigned int patchIndex, double *values) const
Public Member Functions inherited from common::AbstractObject
bool	isPartial () const
virtual bool	isTopLevelElement () const
std::string	getUuid () const
std::string	getTitle () const
std::string	getEditor () const
time_t	getCreation () const
tm	getCreationAsTimeStructure () const
std::string	getOriginator () const
std::string	getDescription () const
time_t	getLastUpdate () const
tm	getLastUpdateAsTimeStructure () const
std::string	getFormat () const
std::string	getDescriptiveKeywords () const
std::string	getVersion () const
void	setTitle (const std::string &title)
void	setEditor (const std::string &editor)
void	setCreation (time_t creation)
void	setCreation (const tm &creation)
void	setOriginator (const std::string &originator)
void	setDescription (const std::string &description)
void	setLastUpdate (time_t lastUpdate)
void	setLastUpdate (const tm &lastUpdate)
void	setDescriptiveKeywords (const std::string &descriptiveKeywords)
void	setVersion (const std::string &version)
void	setMetadata (const std::string &title, const std::string &editor, time_t creation, const std::string &originator, const std::string &description, time_t lastUpdate, const std::string &descriptiveKeywords)
void	serializeIntoStream (std::ostream *stream)
gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *	getEml20GsoapProxy () const
void	setGsoapProxy (gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *gsoapProxy)
gsoap_eml2_3::eml23__AbstractObject *	getEml23GsoapProxy () const
void	setGsoapProxy (gsoap_eml2_3::eml23__AbstractObject *gsoapProxy)
soap *	getGsoapContext () const
int	getGsoapType () const
gsoap_resqml2_0_1::eml20__DataObjectReference *	newResqmlReference () const
gsoap_eml2_3::eml23__DataObjectReference *	newEml23Reference () const
gsoap_resqml2_0_1::resqml20__ContactElementReference *	newContactElementReference2_0_1 () const
gsoap_eml2_3::resqml22__ContactElement *	newContactElementReference2_2 () const
common::DataObjectRepository *	getRepository () const
virtual std::string	getXmlNamespace () const =0
virtual std::string	getXmlNamespaceVersion () const
virtual std::string	getContentType () const
virtual std::string	getQualifiedType () const
virtual std::string	getPartNameInEpcDocument () const
std::string	serializeIntoString ()
void	addAlias (const std::string &authority, const std::string &title)
uint64_t	getAliasCount () const
std::string	getAliasAuthorityAtIndex (uint64_t index) const
std::string	getAliasTitleAtIndex (uint64_t index) const
std::vector< eml2::Activity * >	getActivitySet () const
uint64_t	getActivityCount () const
eml2::Activity *	getActivity (uint64_t index) const
void	pushBackExtraMetadata (const std::string &key, const std::string &value)
std::unordered_map< std::string, std::string >	getExtraMetadataSet () const
std::vector< std::string >	getExtraMetadata (const std::string &key) const
uint64_t	getExtraMetadataCount () const
std::string	getExtraMetadataKeyAtIndex (uint64_t index) const
std::string	getExtraMetadataStringValueAtIndex (uint64_t index) const
std::string	buildEtp12Uri () const
void	setUriSource (const std::string &uriSource)
const std::string &	getUriSource () const
std::string	getEpcSourceFolder () const
void	changeToPartialObject ()

Static Public Attributes
static constexpr char const *	XML_TAG = "NonSealedSurfaceFrameworkRepresentation"
Static Public Attributes inherited from resqml2::RepresentationSetRepresentation
static const char *	XML_TAG
Static Public Attributes inherited from resqml2::AbstractRepresentation
static constexpr char const *	XML_TAG = "AbstractRepresentation"

Additional Inherited Members
Public Types inherited from common::AbstractObject
enum class	numericalDatatypeEnum { UNKNOWN = 0 , DOUBLE = 1 , FLOAT = 2 , INT64 = 3 , UINT64 = 4 , INT32 = 5 , UINT32 = 6 , INT16 = 7 , UINT16 = 8 , INT8 = 9 , UINT8 = 10 }
Static Public Member Functions inherited from common::AbstractObject
static void	setFormat (const std::string &vendor, const std::string &applicationName, const std::string &applicationVersionNumber)

Detailed Description

A non sealed surface framework representation is collection of contact representations parts, which are a list of contact patches with no identity. This collection of contact representations is completed by a set of representations gathered at the representation set representation level.

Constructor & Destructor Documentation

◆ ~NonSealedSurfaceFrameworkRepresentation()

virtual resqml2::NonSealedSurfaceFrameworkRepresentation::~NonSealedSurfaceFrameworkRepresentation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Reimplemented in resqml2_0_1::NonSealedSurfaceFrameworkRepresentation, and resqml2_2::NonSealedSurfaceFrameworkRepresentation.

Member Function Documentation

◆ getContactCount()

virtual unsigned int resqml2::NonSealedSurfaceFrameworkRepresentation::getContactCount ( ) const

overridepure virtual

Gets the count of contacts in this framework.

Exceptions

std::range_error If the count of contacts is strictly greater than unsigned int max.

Returns: The count of contacts in this framework.

Implements resqml2::AbstractSurfaceFrameworkRepresentation.

Implemented in resqml2_0_1::NonSealedSurfaceFrameworkRepresentation, and resqml2_2::NonSealedSurfaceFrameworkRepresentation.

◆ getXmlTag()

virtual std::string resqml2::NonSealedSurfaceFrameworkRepresentation::getXmlTag ( ) const

inlinefinalvirtual

Gets the standard XML tag without XML namespace for serializing this data object.

Returns: The XML tag.

Reimplemented from resqml2::RepresentationSetRepresentation.

◆ pushBackNonSealedContactRepresentation()

virtual void resqml2::NonSealedSurfaceFrameworkRepresentation::pushBackNonSealedContactRepresentation	(	unsigned int	pointCount,
		double const *	points,
		eml2::AbstractHdfProxy *	proxy = nullptr,
		eml2::AbstractLocal3dCrs *	localCrs = nullptr )

pure virtual

Pushes back a contact representation in this structural framework

Exceptions

std::invalid_argument	If `pointCount` is `0`.
std::invalid_argument	If `points` is `nullptr`.
std::invalid_argument	If `proxy` is `nullptr` and no default HDF proxy is defined in the repository.
std::invalid_argument	If `localCrs` is `nullptr` and no default local 3d CRS is defined in the repository.

Parameters

	pointCount	The number of points in the contact representation.
[in]	points	The (x, y, z) points of the contact representation. Count is pointCount * 3 and for each contact point (x, y, z) = (points[2i], points[2i+1], points[2i+2]).
[in,out]	proxy	(Optional) The HDF proxy where the numerical values (contact points coordinates) are stored. If `nullptr` (default), then the default HDF proxy of the repository will be used.
[in,out]	localCrs	(Optional) The local 3d CRS on which the geometry of the contact representation is based on. If `nullptr` (default), then the default local 3d CRS of the repository will be used.

Implemented in resqml2_0_1::NonSealedSurfaceFrameworkRepresentation, and resqml2_2::NonSealedSurfaceFrameworkRepresentation.

Member Data Documentation

◆ XML_TAG

char const* resqml2::NonSealedSurfaceFrameworkRepresentation::XML_TAG = "NonSealedSurfaceFrameworkRepresentation"

staticconstexpr

The standard XML tag without XML namespace for serializing this data object.

The documentation for this class was generated from the following file:

C:/Users/phili/dev/fesapi/fesapi-2.13.0.0/src/resqml2/NonSealedSurfaceFrameworkRepresentation.h
