witsml2_1::Log Class Reference

#include <Log.h>

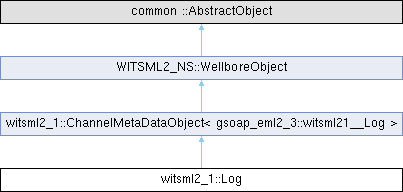

Inheritance diagram for witsml2_1::Log:

Public Member Functions
	Log (gsoap_resqml2_0_1::eml20__DataObjectReference *partialObject)
	Log (WITSML2_NS::Wellbore *witsmlWellbore, const std::string &guid, const std::string &title, bool isActive)
	Constructor.
	Log (gsoap_eml2_3::witsml21__Log *fromGsoap)
	~Log ()=default
void	pushBackChannelSet (class ChannelSet *channelSet)
std::vector< class ChannelSet * >	getChannelSets () const
virtual std::string	getXmlTag () const
void	loadTargetRelationships () final
std::string	getXmlNamespace () const final
Public Member Functions inherited from witsml2_1::ChannelMetaDataObject< gsoap_eml2_3::witsml21__Log >
	ChannelMetaDataObject (gsoap_resqml2_0_1::eml20__DataObjectReference *partialObject)
	ChannelMetaDataObject ()
	ChannelMetaDataObject (gsoap_eml2_3::eml23__AbstractObject *fromGsoap)
virtual	~ChannelMetaDataObject ()=default
common::DataObjectReference	getWellboreDor () const final
	Gets wellbore dor.
void	setWellbore (WITSML2_NS::Wellbore *witsmlWellbore) final
Public Member Functions inherited from WITSML2_NS::WellboreObject
virtual	~WellboreObject ()=default
Wellbore *	getWellbore () const

Static Public Attributes
static const char *	XML_TAG
static constexpr char const *	XML_NS = "witsml21"

Detailed Description

Primarily a container for one or more channel sets (ChannelSet).

Constructor & Destructor Documentation

Log() [1/3]

witsml2_1::Log::Log ( gsoap_resqml2_0_1::eml20__DataObjectReference * partialObject )

inline

Constructor for partial transfer

Parameters

[in,out]

partialObject

If non-null, the partial object.

Log() [2/3]

witsml2_1::Log::Log	(	WITSML2_NS::Wellbore *	witsmlWellbore,
		const std::string &	guid,
		const std::string &	title,
		bool	isActive )

Constructor.

Exceptions

std::invalid_argument

If witsmlWellbore == nullptr.

Parameters

[in]	witsmlWellbore	If non-null, the witsml wellbore.
	guid	Unique identifier.
	title	The title.
	isActive	True if is active, false if not.

Log() [3/3]

witsml2_1::Log::Log ( gsoap_eml2_3::witsml21__Log * fromGsoap )

inline

Creates an instance of this class by wrapping a gsoap instance.

Parameters

[in,out]

fromGsoap

If non-null, from gsoap.

~Log()

witsml2_1::Log::~Log ( )

default

Destructor does nothing since the memory is managed by the gsoap context.

Member Function Documentation

getChannelSets()

std::vector< class ChannelSet * > witsml2_1::Log::getChannelSets

(

)

const

Gets channel sets

Returns

Null if it fails, else the channel sets.

getXmlNamespace()

std::string witsml2_1::Log::getXmlNamespace ( ) const

inlinefinal

Get the standard XML namespace for serializing this data object.

getXmlTag()

virtual std::string witsml2_1::Log::getXmlTag ( ) const

inlinevirtual

Get the standard XML tag without XML namespace for serializing this data object.

Returns

The XML tag.

loadTargetRelationships()

void witsml2_1::Log::loadTargetRelationships ( )

finalvirtual

Loads target relationships

Reimplemented from WITSML2_NS::WellboreObject.

pushBackChannelSet()

void witsml2_1::Log::pushBackChannelSet

(

class ChannelSet *

channelSet

)

Pushes a back channel set

Parameters

[in,out]

channelSet

If non-null, set the channel belongs to.

Member Data Documentation

XML_NS

constexpr char const* witsml2_1::Log::XML_NS = "witsml21"

staticconstexpr

The standard XML namespace for serializing this data object.

XML_TAG

const char* witsml2_1::Log::XML_TAG

static

The standard XML tag without XML namespace for serializing this data object.

Returns

The XML tag.

---

The documentation for this class was generated from the following file:

• C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/witsml2_1/Log.h
