Proxy class for an abstract IJK grid representation. This class is semantically abstract. Technically speaking, it is not an abstract because it can be used in case of partial transfer where we don't know the geometry of the IJK grid. More...

#include <AbstractIjkGridRepresentation.h>

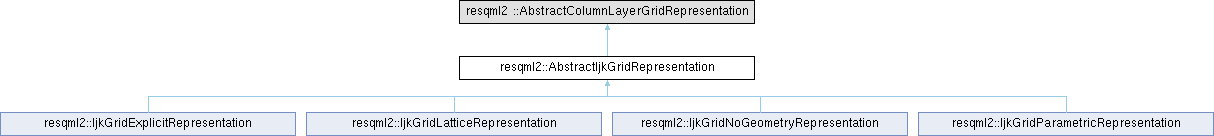

Inheritance diagram for resqml2::AbstractIjkGridRepresentation:

Public Types
enum class	geometryKind { UNKNOWN = 0 , EXPLICIT = 1 , PARAMETRIC = 2 , LATTICE = 3 , NO_GEOMETRY = 4 }

Public Member Functions
	AbstractIjkGridRepresentation (common ::DataObjectRepository repo, const std::string &guid, const std::string &title, unsigned int iCount, unsigned int jCount, unsigned int kCount, bool kGaps=nullptr, eml2 ::AbstractHdfProxy *proxy=nullptr)

	AbstractIjkGridRepresentation (resqml2 ::AbstractFeatureInterpretation interp, const std::string &guid, const std::string &title, unsigned int iCount, unsigned int jCount, unsigned int kCount, bool kGaps=nullptr, eml2 ::AbstractHdfProxy *proxy=nullptr)

	AbstractIjkGridRepresentation (gsoap_resqml2_0_1::eml20__DataObjectReference *partialObject, bool withTruncatedPillars=false)

virtual	~AbstractIjkGridRepresentation ()

unsigned int	getICellCount () const

void	setICellCount (unsigned int iCount)

unsigned int	getJCellCount () const

void	setJCellCount (unsigned int jCount)
	Sets the count of cells in the J direction.

uint64_t	getCellCount () const final

unsigned int	getColumnCount () const

unsigned int	getPillarCount () const

uint64_t	getKGapsCount () const

void	getKGaps (bool *kGaps) const

uint64_t	getFaceCount () const

unsigned int	getIPillarFromGlobalIndex (unsigned int globalIndex) const

unsigned int	getJPillarFromGlobalIndex (unsigned int globalIndex) const

unsigned int	getGlobalIndexPillarFromIjIndex (unsigned int iPillar, unsigned int jPillar) const

unsigned int	getIColumnFromGlobalIndex (unsigned int globalIndex) const

unsigned int	getJColumnFromGlobalIndex (unsigned int globalIndex) const

unsigned int	getGlobalIndexColumnFromIjIndex (unsigned int iColumn, unsigned int jColumn) const

unsigned int	getGlobalIndexCellFromIjkIndex (unsigned int iCell, unsigned int jCell, unsigned int kCell) const

bool	isRightHanded () const

void	getPillarsOfSplitCoordinateLines (unsigned int *pillarIndices, bool reverseIAxis=false, bool reverseJAxis=false) const

void	getColumnsOfSplitCoordinateLines (unsigned int *columnIndices, bool reverseIAxis=false, bool reverseJAxis=false) const

void	getColumnCountOfSplitCoordinateLines (unsigned int *columnIndexCountPerSplitCoordinateLine) const

uint64_t	getSplitCoordinateLineCount () const

uint64_t	getBlockSplitCoordinateLineCount () const

uint64_t	getSplitNodeCount () const

void	getPillarGeometryIsDefined (bool *pillarGeometryIsDefined, bool reverseIAxis=false, bool reverseJAxis=false) const

bool	hasCellGeometryIsDefinedFlags () const

void	getCellGeometryIsDefinedFlags (bool *cellGeometryIsDefinedFlags, bool reverseIAxis=false, bool reverseJAxis=false, bool reverseKAxis=false) const

void	setCellGeometryIsDefinedFlags (uint8_t cellGeometryIsDefinedFlags, eml2 ::AbstractHdfProxy proxy=nullptr)

void	setAllCellGeometryFlagsToDefined ()

void	loadSplitInformation ()

void	loadBlockInformation (unsigned int iInterfaceStart, unsigned int iInterfaceEnd, unsigned int jInterfaceStart, unsigned int jInterfaceEnd, unsigned int kInterfaceStart, unsigned int kInterfaceEnd)

void	unloadSplitInformation ()

bool	isColumnEdgeSplitted (unsigned int iColumn, unsigned int jColumn, unsigned int edge) const
	Checks either a given column edge is splitted or not. This method requires that you have already loaded the split information.

uint64_t	getXyzPointIndexFromCellCorner (unsigned int iCell, unsigned int jCell, unsigned int kCell, unsigned int corner) const
	Gets the XYZ point index in the HDF dataset from the corner of a cell. This method requires that you have already loaded the split information.

void	getXyzPointOfBlockFromCellCorner (unsigned int iCell, unsigned int jCell, unsigned int kCell, unsigned int corner, const double *xyzPoints, double &x, double &y, double &z) const
	Gets the x, y and z values of the corner of a cell of a given block. This method requires that you have already both loaded the block information and get the geometry of the block thanks to getXyzPointsOfBlock().

uint64_t	getXyzPointCountOfKInterface () const

uint64_t	getXyzPointCountOfBlock () const

void	getXyzPointsOfKInterface (unsigned int kInterface, double *xyzPoints)

virtual void	getXyzPointsOfKInterfaceSequence (unsigned int kInterfaceStart, unsigned int kInterfaceEnd, double *xyzPoints)
	Gets all the XYZ points of a particular sequence of K interfaces. XYZ points are given in the local CRS.

virtual void	getXyzPointsOfBlock (double *xyzPoints)
	Gets all the XYZ points of the current block. XYZ points are given in the local CRS. Block information must be loaded.

virtual bool	isNodeGeometryCompressed () const

gsoap_resqml2_0_1::resqml20__KDirection	getKDirection () const override

virtual geometryKind	getGeometryKind () const

virtual common::DataObjectReference	getHdfProxyDor () const override

virtual uint64_t	getXyzPointCountOfPatch (unsigned int patchIndex) const override

virtual void	getXyzPointsOfPatch (unsigned int patchIndex, double *xyzPoints) const override
	Gets all the xyz points of a particular patch of this representation. xyz points are given in the local CRS.

std::string	getXmlTag () const final

uint64_t	getPatchCount () const override

virtual std::string	getXmlNamespace () const override

Static Public Attributes
static constexpr char const *	XML_TAG = "IjkGridRepresentation"

static constexpr char const *	XML_TAG_TRUNCATED = "TruncatedIjkGridRepresentation"

Detailed Description

Proxy class for an abstract IJK grid representation. This class is semantically abstract. Technically speaking, it is not an abstract because it can be used in case of partial transfer where we don't know the geometry of the IJK grid.

Member Enumeration Documentation

◆ geometryKind

enum class resqml2::AbstractIjkGridRepresentation::geometryKind

strong

Values that represent geometry kinds.

Constructor & Destructor Documentation

◆ AbstractIjkGridRepresentation() [1/3]

resqml2::AbstractIjkGridRepresentation::AbstractIjkGridRepresentation	(	common ::DataObjectRepository *	repo,
		const std::string &	guid,
		const std::string &	title,
		unsigned int	iCount,
		unsigned int	jCount,
		unsigned int	kCount,
		bool *	kGaps = nullptr,
		eml2 ::AbstractHdfProxy *	proxy = nullptr )

Constructor of an IJK grid representation without link to an interpretation.

Exceptions

std::invalid_argument If repo is nullptr.

Parameters

[in,out]	repo	A repository which will manage the memory of this instance. It cannot be null.
	guid	The guid to set to the ijk grid with no geometry representation. If empty then a new guid will be generated.
	title	The title to set to the ijk grid with no geometry representation. If empty then "unknown" title will be set.
	iCount	Count of cells in the i-direction in the grid.
	jCount	Count of cells in the j-direction in the grid.
	kCount	Number of layers in the grid.
	kGaps	(Optional) Boolean array of length KCellCount-1. TRUE if there is a gap after the corresponding layer. Won't be freed by FESAPI.
[in]	proxy	(Optional) The HDF proxy for writing the `enabledCells` values. If `nullptr` (default), then the default HDF proxy will be used.

◆ AbstractIjkGridRepresentation() [2/3]

resqml2::AbstractIjkGridRepresentation::AbstractIjkGridRepresentation	(	resqml2 ::AbstractFeatureInterpretation *	interp,
		const std::string &	guid,
		const std::string &	title,
		unsigned int	iCount,
		unsigned int	jCount,
		unsigned int	kCount,
		bool *	kGaps = nullptr,
		eml2 ::AbstractHdfProxy *	proxy = nullptr )

Constructor of an IJK grid representation with a link to an interpretation.

Exceptions

std::invalid_argument If interp is nullptr.

Parameters

[in]	interp	The interpretation this IJK grid represents. It cannot be null.
	guid	The guid to set to the ijk grid with no geometry representation. If empty then a new guid will be generated.
	title	The title to set to the ijk grid with no geometry representation. If empty then "unknown" title will be set.
	iCount	Count of cells in the I direction in the grid.
	jCount	Count of cells in the J direction in the grid.
	kCount	Number of layers in the grid.
	kGaps	(Optional) Boolean array of length KCellCount-1. TRUE if there is a gap after the corresponding layer. Won't be freed by FESAPI.
[in]	proxy	(Optional) The HDF proxy for writing the `enabledCells` values. If `nullptr` (default), then the default HDF proxy will be used.

◆ AbstractIjkGridRepresentation() [3/3]

resqml2::AbstractIjkGridRepresentation::AbstractIjkGridRepresentation	(	gsoap_resqml2_0_1::eml20__DataObjectReference *	partialObject,
		bool	withTruncatedPillars = false )

explicit

Constructor of a truncated IJK grid representation without link to an interpretation.

Exceptions

std::invalid_argument If repo is nullptr.

Parameters

[in,out]	repo	A repository which will manage the memory of this instance. It cannot be null.
	guid	The guid to set to the ijk grid with no geometry representation. If empty then a new guid will be generated.
	title	The title to set to the ijk grid with no geometry representation. If empty then "unknown" title will be set.
	iCount	Count of cells in the i-direction in the grid.
	jCount	Count of cells in the j-direction in the grid.
	kCount	Number of layers in the grid.
	truncationNodeCount	Number of additional nodes required for the truncation construction.
	truncationFaceCount	Number of additional faces required for the split and truncation construction. The construction does not modify existing face definitions, but instead uses these new faces to redefine the truncated cell geometry.
	truncationCellCount	Number of additional cells required for the truncation construction. Parent cells are replaced. Constructor of truncated IJK grid representation with a link to an interpretation.

Exceptions

std::invalid_argument If interp is nullptr.

Parameters

[in]	interp	The interpretation this IJK grid represents. It cannot be null.
	guid	The guid to set to the ijk grid with no geometry representation. If empty then a new guid will be generated.
	title	The title to set to the ijk grid with no geometry representation. If empty then "unknown" title will be set.
	iCount	Count of cells in the I direction in the grid.
	jCount	Count of cells in the J direction in the grid.
	kCount	Number of layers in the grid.
	withTruncatedPillars	(Optional) True if this IJK grid has some truncated pillars, else false (default). Only to be used in partial transfer context.
[in]	partialObject	If non-nullptr, the partial object.
	withTruncatedPillars	(Optional) True to with truncated pillars.

◆ ~AbstractIjkGridRepresentation()

virtual resqml2::AbstractIjkGridRepresentation::~AbstractIjkGridRepresentation ( )

inlinevirtual

Destructor.

Member Function Documentation

◆ getBlockSplitCoordinateLineCount()

uint64_t resqml2::AbstractIjkGridRepresentation::getBlockSplitCoordinateLineCount ( ) const

Gets the split coordinate lines count within the block. Block information must be loaded thanks to loadBlockInformation().

Exceptions

std::invalid_argument If the block information is not loaded.

Returns: The split coordinate lines count within the block.

◆ getCellCount()

uint64_t resqml2::AbstractIjkGridRepresentation::getCellCount ( ) const

inlinefinal

Gets the total count of cells in the IJK grid.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count is strictly greater than unsigned int max.

Returns: The total count of cells in the IJK grid.

◆ getCellGeometryIsDefinedFlags()

void resqml2::AbstractIjkGridRepresentation::getCellGeometryIsDefinedFlags	(	bool *	cellGeometryIsDefinedFlags,
		bool	reverseIAxis = false,
		bool	reverseJAxis = false,
		bool	reverseKAxis = false ) const

Get the flags for each cell indicating if its geometry is defined or not (i.e. meaning that at least one of the coordinates of at least one of the cell vertex is NaN). Do not mix this flag with the active one : http://docs.energistics.org/#RESQML/RESQML_TOPICS/RESQML-000-289-0-C-sv2010.html

Exceptions

std::invalid_argument	If this grid has no geometry or no CellGeometryIsDefined flags.
std::invalid_argument	If the CellGeometryIsDefined flags are neither stored in an HDF5 boolean array nor in a boolean constant array.

Parameters

[out]	cellGeometryIsDefinedFlags	An array for receiving the CellGeometryIsDefined flags. It must have a count of getCellCount() and must follow the index ordering I then J then K. It won't be free. A zero value in `cellGeometryIsDefinedFlags` means that the corresponding cell geometry is not defined. A non zero value means that the corresponding cell geometry is defined.
	reverseIAxis	(Optional) True to reverse i axis. Default value is false.
	reverseJAxis	(Optional) True to reverse j axis. Default value is false.
	reverseKAxis	(Optional) True to reverse k axis. Default value is false.

◆ getColumnCount()

unsigned int resqml2::AbstractIjkGridRepresentation::getColumnCount ( ) const

inline

Gets the count of columns in this grid.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.

Returns: The column count.

◆ getColumnCountOfSplitCoordinateLines()

void resqml2::AbstractIjkGridRepresentation::getColumnCountOfSplitCoordinateLines ( unsigned int * columnIndexCountPerSplitCoordinateLine ) const

Gets the cumulative count of columns impacted by all the split coordinate lines. The order of the cumulative count values corresponds to the order of the split coordinates lines.

Exceptions

std::invalid_argument	If the HDF proxy is missing.
std::invalid_argument	If there is no geometry or no split coordinate line in this grid.
std::logic_error	If the cumulative count of the columns impacted by the split coordinate lines are not stored within an HDF5 integer array.

Parameters

[out] columnIndexCountPerSplitCoordinateLine An array for receiving the cumulative count of columns impacted by the split coordinate lines.

◆ getColumnsOfSplitCoordinateLines()

void resqml2::AbstractIjkGridRepresentation::getColumnsOfSplitCoordinateLines	(	unsigned int *	columnIndices,
		bool	reverseIAxis = false,
		bool	reverseJAxis = false ) const

Gets all the columns impacted by all the split coordinate lines. The order of the columns corresponds to the order of the split coordinate lines.

Exceptions

std::invalid_argument	If the HDF proxy is missing.
std::invalid_argument	If there is no geometry or no split coordinate line in this grid.
std::logic_error	If the indices of the columns impacted by the split coordinate lines are not stored within an HDF5 integer array.

Parameters

[out]	columnIndices	An array for receiving the indices of the columns impacted by the split coordinate lines. It must be preallocated with a size equal to the last value of the array outputted from getColumnCountOfSplitCoordinateLines().
	reverseIAxis	(Optional) True to reverse i axis. Default value is false.
	reverseJAxis	(Optional) True to reverse j axis. Default value is false.

◆ getFaceCount()

uint64_t resqml2::AbstractIjkGridRepresentation::getFaceCount ( ) const

Gets the count of faces in this grid. This method requires you have already loaded the split information thanks to loadSplitInformation().

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I, J or K direction is strictly greater than unsigned int max.
std::invalid_argument	If there is no geometry on this grid.

Returns: The face count.

◆ getGeometryKind()

virtual geometryKind resqml2::AbstractIjkGridRepresentation::getGeometryKind ( ) const

inlinevirtual

Gets the geometry kind of this IJK grid.

Returns: The geometry kind of this IJK grid.

Reimplemented in resqml2::IjkGridExplicitRepresentation, resqml2::IjkGridLatticeRepresentation, resqml2::IjkGridNoGeometryRepresentation, and resqml2::IjkGridParametricRepresentation.

◆ getGlobalIndexCellFromIjkIndex()

unsigned int resqml2::AbstractIjkGridRepresentation::getGlobalIndexCellFromIjkIndex	(	unsigned int	iCell,
		unsigned int	jCell,
		unsigned int	kCell ) const

Gets the global index of a cell from its I, J and K indices in the grid.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I, J or K direction is strictly greater than unsigned int max.
std::out_of_range	If `iCell` is greater than or equal to getICellCount().
std::out_of_range	If `jCell` is greater than or equal to getJCellCount().
std::out_of_range	If `kCell` is greater than or equal to getKCellCount().

Parameters

iCell	The I index of the cell.
jCell	The J index of the cell.
kCell	The K index of the cell.

Returns: The global index of the cell.

◆ getGlobalIndexColumnFromIjIndex()

unsigned int resqml2::AbstractIjkGridRepresentation::getGlobalIndexColumnFromIjIndex	(	unsigned int	iColumn,
		unsigned int	jColumn ) const

Gets the global index of a column from its I and J indices in the grid. The global (or linearized) index of a given column is i column + j column * (nI cell) where i column and j column are respectively the I and J indices of the column and nI cell is the count of cells in the I direction.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.
std::out_of_range	If `iColumn` is greater than or equal to getICellCount().
std::out_of_range	If `jColumn` is greater than or equal to getJCellCount().

Parameters

iColumn	The I index of the column.
jColumn	The J index of the column.

Returns: The global index of the column.

◆ getGlobalIndexPillarFromIjIndex()

unsigned int resqml2::AbstractIjkGridRepresentation::getGlobalIndexPillarFromIjIndex	(	unsigned int	iPillar,
		unsigned int	jPillar ) const

Gets the global index of a pillar from its I and J indices in the grid. The global (or linearized) index of a given pillar is i pillar + j pillar * (nI pillar) where i pillar and j pillar are respectively the I and J indices of the pillar and nI pillar is the count of pillars in the I direction.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.
std::out_of_range	If `iPillar` is strictly greater than getICellCount().
std::out_of_range	If `jPillar` is strictly greater than getJCellCount().

Parameters

iPillar	The I index of the pillar.
jPillar	The J index of the pillar.

Returns: The global index of the pillar.

◆ getICellCount()

unsigned int resqml2::AbstractIjkGridRepresentation::getICellCount ( ) const

Gets the count of cells in the I direction.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count is strictly greater than unsigned int max.

Returns: The count of cell in the I direction.

◆ getIColumnFromGlobalIndex()

unsigned int resqml2::AbstractIjkGridRepresentation::getIColumnFromGlobalIndex ( unsigned int globalIndex ) const

Gets the I index of a column from its global index in the grid. The global (or linearized) index of a given column is i column + j column * (nI cell) where i column and j column are respectively the I and J indices of the column and nI cell is the count of cells in the I direction.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.
std::out_of_range	If `globalIndex` is out of range (greater than or equal to getColumnCount()).

Parameters

globalIndex The global index of the column for which we want to get the I index.

Returns: The I index of the column.

◆ getIPillarFromGlobalIndex()

unsigned int resqml2::AbstractIjkGridRepresentation::getIPillarFromGlobalIndex ( unsigned int globalIndex ) const

Gets the I index of a pillar from its global index in this grid. The global (or linearized) index of a given pillar is i pillar + j pillar * (nI pillar) where i pillar and j pillar are respectively the I and J indices of the pillar and nI pillar is the count of pillars in the I direction.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.
std::out_of_range	If `globalIndex` is out of range (greater than or equal to getPillarCount()).

Parameters

globalIndex The global index of the pillar for which we want to get the I index.

Returns: The I index of the pillar.

◆ getJCellCount()

unsigned int resqml2::AbstractIjkGridRepresentation::getJCellCount ( ) const

Gets the count of cells in the J direction.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count is strictly greater than unsigned int max.

Returns: The count of cell in the J direction.

◆ getJColumnFromGlobalIndex()

unsigned int resqml2::AbstractIjkGridRepresentation::getJColumnFromGlobalIndex ( unsigned int globalIndex ) const

Gets the J index of a column from its global index in the grid. The global (or linearized) index of a given column is i column + j column * (nI cell) where i column and j column are respectively the I and J indices of the column and nI cell is the count of cells in the I direction.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.
std::out_of_range	If `globalIndex` is out of range (greater than or equal to getColumnCount()).

Parameters

globalIndex The global index of the column for which we want to get the J index.

Returns: The J index of the column.

◆ getJPillarFromGlobalIndex()

unsigned int resqml2::AbstractIjkGridRepresentation::getJPillarFromGlobalIndex ( unsigned int globalIndex ) const

Gets the J index of a pillar from its global index in this grid. The global (or linearized) index of a given pillar is i pillar + j pillar * (nI pillar) where i pillar and j pillar are respectively the I and J indices of the pillar and nI pillar is the count of pillars in the I direction.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.
std::out_of_range	If `globalIndex` is out of range (greater than or equal to getPillarCount()).

Parameters

globalIndex The global index of the pillar for which we want to get the J index.

Returns: The J index of the pillar.

◆ getKGaps()

void resqml2::AbstractIjkGridRepresentation::getKGaps ( bool * kGaps ) const

For each K Layer except the last one, indicate wether there is a layer or not after it.

Parameters

[out] kGaps An array for receiving the information about kGaps. It must have a count of getKCellCount() - 1. It won't be free. A false value in kGaps means that the corresponding k layer has no gaps just after it. A true value means that the corresponding k layer has a gap just after it.

◆ getKGapsCount()

uint64_t resqml2::AbstractIjkGridRepresentation::getKGapsCount ( ) const

Gets the count of K layer gaps in this grid.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.

Returns: The K Layer gaps count.

◆ getPillarCount()

unsigned int resqml2::AbstractIjkGridRepresentation::getPillarCount ( ) const

inline

Gets the count of pillars in this grid.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.

Returns: The pillar count.

◆ getPillarGeometryIsDefined()

void resqml2::AbstractIjkGridRepresentation::getPillarGeometryIsDefined	(	bool *	pillarGeometryIsDefined,
		bool	reverseIAxis = false,
		bool	reverseJAxis = false ) const

Tells for each pillar if its geometry is defined. This method only looks at the corresponding PillarGeometryIsDefined attribute in the gSOAP proxy.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.
std::invalid_argument	If there is no geometry on this IJK grid.
std::invalid_argument	If the values indicating for each pillar if its geometry is defined are neither stored in an HDF5 boolean array nor in a boolean constant array.

Parameters

[out]	pillarGeometryIsDefined	An array for receiving a boolean value for each pillar indicating if its geometry is defined or not. It must be preallocated with a size of getPillarCount().
	reverseIAxis	(Optional) True to reverse i axis. Default value is false.
	reverseJAxis	(Optional) True to reverse j axis. Default value is false.

◆ getPillarsOfSplitCoordinateLines()

void resqml2::AbstractIjkGridRepresentation::getPillarsOfSplitCoordinateLines	(	unsigned int *	pillarIndices,
		bool	reverseIAxis = false,
		bool	reverseJAxis = false ) const

Gets all the pillars which correspond to all split coordinate lines. The order of the pillars corresponds to the order of the split coordinate lines.

Exceptions

std::invalid_argument	If the HDF proxy is missing.
std::invalid_argument	If there is no geometry or no split coordinate line in this grid.
std::logic_error	If the indices of the pillars corresponding to the split coordinate lines are not stored within an HDF5 integer array.

Parameters

[out]	pillarIndices	An array for receiving the indices of the pillars corresponding to the split coordinate lines. It must be preallocated with a size of getSplitCoordinateLineCount().
	reverseIAxis	(Optional) True to reverse I axis. Default value is false.
	reverseJAxis	(Optional) True to reverse J axis. Default value is false.

◆ getSplitCoordinateLineCount()

uint64_t resqml2::AbstractIjkGridRepresentation::getSplitCoordinateLineCount ( ) const

Gets the split coordinate lines count.

Exceptions

std::invalid_argument	If there is no geometry on this IJK grid.
std::range_error	If the count of split coordinate lines is strictly greater than unsigned int max.

Returns: The split coordinate lines count.

◆ getSplitNodeCount()

uint64_t resqml2::AbstractIjkGridRepresentation::getSplitNodeCount ( ) const

Gets the split nodes count.

Exceptions

std::invalid_argument If there is no geometry on this IJK grid.

Returns: The split nodes count.

◆ getXmlNamespace()

virtual std::string resqml2::AbstractIjkGridRepresentation::getXmlNamespace ( ) const

inlineoverridevirtual

Get the standard XML namespace for serializing this data object.

◆ getXyzPointCountOfBlock()

uint64_t resqml2::AbstractIjkGridRepresentation::getXyzPointCountOfBlock ( ) const

Gets the XYZ points count of the current block. Block information must be loaded.

Exceptions

std::invalid_argument If the block information is not loaded.

Returns: The XYZ point count of the current block.

◆ getXyzPointCountOfKInterface()

uint64_t resqml2::AbstractIjkGridRepresentation::getXyzPointCountOfKInterface ( ) const

Get the XYZ points count in each K layer interface.

Exceptions

std::logic_error	If this grid is partial.
std::range_error	If the count of cells in I or J direction is strictly greater than unsigned int max.
std::invalid_argument	If there is no geometry on this IJK grid.
std::range_error	If the count of split coordinate lines is strictly greater than unsigned int max.

Returns: The XYZ point count of each K layer interface.

◆ getXyzPointCountOfPatch()

virtual uint64_t resqml2::AbstractIjkGridRepresentation::getXyzPointCountOfPatch ( unsigned int patchIndex ) const

overridevirtual

Reimplemented in resqml2::IjkGridNoGeometryRepresentation.

◆ getXyzPointIndexFromCellCorner()

uint64_t resqml2::AbstractIjkGridRepresentation::getXyzPointIndexFromCellCorner	(	unsigned int	iCell,
		unsigned int	jCell,
		unsigned int	kCell,
		unsigned int	corner ) const

Gets the XYZ point index in the HDF dataset from the corner of a cell. This method requires that you have already loaded the split information.

Exceptions

std::logic_error	If this grid is partial.
std::invalid_argument	If the split information is not loaded.
std::out_of_range	If `iCell` > getICellCount(), `jCell` > getJCellCount() or `kCell` > getKCellCount().
std::out_of_range	If `corner` > 7.

Parameters

iCell	The I index of the cell.
jCell	The J index of the cell.
kCell	The K index of the cell.
corner	Index of the corner: 0 for (0,0,0); 1 for (1,0,0); 2 for (1,1,0); 3 for (0,1, 0); 4 for (0,0,1); 5 for (1,0,1); 6 for (1,1,1); 7 for (0,1,1).

Returns: The index of the XYZ point in the HDF dataset corresponding to the corner of the cell. Keep in mind to multiply the result by 3 to get the X index since the points are triplet of values.

◆ getXyzPointOfBlockFromCellCorner()

void resqml2::AbstractIjkGridRepresentation::getXyzPointOfBlockFromCellCorner	(	unsigned int	iCell,
		unsigned int	jCell,
		unsigned int	kCell,
		unsigned int	corner,
		const double *	xyzPoints,
		double &	x,
		double &	y,
		double &	z ) const

Gets the x, y and z values of the corner of a cell of a given block. This method requires that you have already both loaded the block information and get the geometry of the block thanks to getXyzPointsOfBlock().

Exceptions

std::logic_error	If this grid is partial.
std::invalid_argument	If the split or block information is not loaded.
std::out_of_range	If `iCell` > getICellCount(), `jCell` > getJCellCount() or `kCell` > getKCellCount().
std::out_of_range	If `corner` > 7.

Parameters

	iCell	The I index of the cell.
	jCell	The J index of the cell.
	kCell	The K index of the cell.
	corner	Index of the corner: 0 for (0,0,0); 1 for (1,0,0); 2 for (1,1,0); 3 for (0,1,0); 4 for (0,0,1); 5 for (1,0,1); 6 for (1,1,1); 7 for (0,1, 1).
	xyzPoints	The XYZ points of the block (resulting from a call to getXyzPointsOfBlock()).
[out]	x	The x value of the corner we look for.
[out]	y	The y value of the corner we look for.
[out]	z	The z value of the corner we look for.

◆ getXyzPointsOfBlock()

virtual void resqml2::AbstractIjkGridRepresentation::getXyzPointsOfBlock ( double * xyzPoints )

virtual

Gets all the XYZ points of the current block. XYZ points are given in the local CRS. Block information must be loaded.

Exceptions

std::invalid_argument	If the block information is not loaded.
std::invalid_argument	If `xyzPoints` is `nullptr`.

Parameters

[out] xyzPoints A linearized 2d array where the first (quickest) dimension is coordinate dimension (XYZ) and second dimension is vertex dimension. It must be pre allocated with a size of 3 * getXyzPointCountOfBlock().

Reimplemented in resqml2::IjkGridParametricRepresentation, and resqml2::IjkGridExplicitRepresentation.

◆ getXyzPointsOfKInterfaceSequence()

virtual void resqml2::AbstractIjkGridRepresentation::getXyzPointsOfKInterfaceSequence	(	unsigned int	kInterfaceStart,
		unsigned int	kInterfaceEnd,
		double *	xyzPoints )

virtual

Gets all the XYZ points of a particular sequence of K interfaces. XYZ points are given in the local CRS.

Exceptions

std::out_of_range	If `kInterfaceStart` `>` getKCellCount() or `kInterfaceEnd` `>` getKCellCount() + getKGapsCount().
std::range_error	If `kInterfaceStart` `>` `kInterfaceEnd`.
std::invalid_argument	If `xyzPoints` is `nullptr`.

Parameters

	kInterfaceStart	The K index of the starting interface taken from zero to getKCellCount().
	kInterfaceEnd	The K index of the ending interface taken from zero to getKCellCount() + getKGapsCount().
[out]	xyzPoints	A linearized 2d array where the first (quickest) dimension is coordinate dimension (XYZ) and second dimension is vertex dimension. It must be preallocated with a size of `3 ` getXyzPointCountOfKInterface() ` (kInterfaceEnd - kInterfaceStart + 1)`.

Reimplemented in resqml2::IjkGridParametricRepresentation, and resqml2::IjkGridExplicitRepresentation.

◆ getXyzPointsOfPatch()

virtual void resqml2::AbstractIjkGridRepresentation::getXyzPointsOfPatch	(	unsigned int	patchIndex,
		double *	xyzPoints ) const

overridevirtual

Gets all the xyz points of a particular patch of this representation. xyz points are given in the local CRS.

Exceptions

std::out_of_range If patchIndex >= getPatchCount().

Parameters

patchIndex	The index of the patch.
xyzPoints	xyz double triplets ordered by i then j then split then k. It must be preallocated with a count of `((iCellCount+1) * (jCellCount+1) + splitCoordinateLineCount)` `* kCellCount.`

Reimplemented in resqml2::IjkGridLatticeRepresentation, and resqml2::IjkGridNoGeometryRepresentation.

◆ hasCellGeometryIsDefinedFlags()

bool resqml2::AbstractIjkGridRepresentation::hasCellGeometryIsDefinedFlags ( ) const

Indicates if this grid contains a flag on each cell indicating if its geometry is defined or not (i.e. meaning that at least one of the coordinates of at least one of the cell vertex is NaN). Do not mix this flag with the active one : http://docs.energistics.org/#RESQML/RESQML_TOPICS/RESQML-000-289-0-C-sv2010.html

Returns: True if this grid contains a flag on each cell indicating if its geometry is defined or not, false if not.

◆ isColumnEdgeSplitted()

bool resqml2::AbstractIjkGridRepresentation::isColumnEdgeSplitted	(	unsigned int	iColumn,
		unsigned int	jColumn,
		unsigned int	edge ) const

Checks either a given column edge is splitted or not. This method requires that you have already loaded the split information.

Exceptions

std::logic_error	If this grid is partial.
std::invalid_argument	If the split information is not loaded.
std::out_of_range	If `iColumn` is strictly greater than getICellCount().
std::out_of_range	If `iColumn` is strictly greater than getJCellCount().
std::out_of_range	If `edge` is strictly greater than 3.

Parameters

iColumn	The I index of the column.
jColumn	The J index of the column.
edge	0 for edge from i to i+1, lower j connection; 1 for edge from j to j+1, upper i connection; 2 for edge from i+1 to i, upper j connection; 3 for edge from j+1 to j, lower i connection.

Returns: True if the column edge is splitted, false if not.

◆ isNodeGeometryCompressed()

virtual bool resqml2::AbstractIjkGridRepresentation::isNodeGeometryCompressed ( ) const

inlinevirtual

Checks whether the node geometry dataset is compressed or not.

Exceptions

std::invalid_argument If this grid has no geometry.

Returns: True if the node geometry dataset is compressed, false if not.

Reimplemented in resqml2::IjkGridExplicitRepresentation, and resqml2::IjkGridParametricRepresentation.

◆ isRightHanded()

bool resqml2::AbstractIjkGridRepresentation::isRightHanded ( ) const

Queries if this grid is right handed, as determined by the triple product of tangent vectors in the I, J, and K directions.

Exceptions

std::logic_error If this grid has no geometry. Or, if it is in an unrecognized version of RESQML.

Returns: True if this grid is right handed, false if it is not.

◆ loadBlockInformation()

void resqml2::AbstractIjkGridRepresentation::loadBlockInformation	(	unsigned int	iInterfaceStart,
		unsigned int	iInterfaceEnd,
		unsigned int	jInterfaceStart,
		unsigned int	jInterfaceEnd,
		unsigned int	kInterfaceStart,
		unsigned int	kInterfaceEnd )

Loads the block information into memory to speed up the processes and make easier block geometry handling for the user. This method requires that you have already loaded the split information.

Exceptions

std::logic_error	If this grid is partial.
std::invalid_argument	If the split information is not loaded.
std::out_of_range	If `iInterfaceEnd` `>` getICellCount(), `jInterfaceEnd` `>` getJCellCount() or `kInterfaceEnd` `>` getKCellCount() + getKGapsCount().
std::range_error	If `iInterfaceStart` `>` `iInterfaceEnd`, `jInterfaceStart` `>` `jInterfaceEnd` or `kInterfaceStart` `>` `kInterfaceEnd`.

Parameters

iInterfaceStart	The starting I interface index of the block taken from zero to getICellCount().
iInterfaceEnd	The ending I interface index of the block taken from zero to getICellCount().
jInterfaceStart	The starting J interface index of the block taken from zero to getJCellCount().
jInterfaceEnd	The ending J interface index of the block taken from zero to getJCellCount().
kInterfaceStart	The starting K interface index of the block taken from zero to getKCellCount() + getKGapsCount().
kInterfaceEnd	The ending K interface index of the block taken from zero to getKCellCount().

◆ loadSplitInformation()

void resqml2::AbstractIjkGridRepresentation::loadSplitInformation ( )

Loads the split information into memory to speed up processes. Be aware that you must unload by yourself this memory thanks to unloadSplitInformation().

◆ setAllCellGeometryFlagsToDefined()

void resqml2::AbstractIjkGridRepresentation::setAllCellGeometryFlagsToDefined ( )

Set to "defined" the flags for each cell indicating if its geometry is defined or not (i.e. meaning that at least one of the coordinates of at least one of the cell vertex is NaN). Do not mix this flag with the active one : http://docs.energistics.org/#RESQML/RESQML_TOPICS/RESQML-000-289-0-C-sv2010.html

◆ setCellGeometryIsDefinedFlags()

void resqml2::AbstractIjkGridRepresentation::setCellGeometryIsDefinedFlags	(	uint8_t *	cellGeometryIsDefinedFlags,
		eml2 ::AbstractHdfProxy *	proxy = nullptr )

Sets the flags for each cell indicating if its geometry is defined or not (i.e. meaning that at least one of the coordinates of at least one of the cell vertex is NaN). Do not mix this flag with the active one : http://docs.energistics.org/#RESQML/RESQML_TOPICS/RESQML-000-289-0-C-sv2010.html

Exceptions

std::invalid_argument	If `proxy` is `nullptr` and no default HDF proxy is defined in the repository.
std::invalid_argument	If this grid has no geometry.

Parameters

[in]	cellGeometryIsDefinedFlags	An array containing the CellGeometryIsDefined flags. It must have a count of getCellCount() and must follow the index ordering I then J then K. A zero value in `cellGeometryIsDefinedFlags` means that the corresponding cell geometry is not defined. A non zero value means that the corresponding cell geometry is defined.
[in]	proxy	(Optional) The HDF proxy for writing the `cellGeometryIsDefinedFlags` values. If `nullptr` (default), then the default HDF proxy will be used.

◆ setICellCount()

void resqml2::AbstractIjkGridRepresentation::setICellCount ( unsigned int iCount )

Sets the count of cells in the I direction.

Exceptions

std::logic_error If this grid is partial.

Parameters

iCount The count of cells to set in the I direction.

◆ setJCellCount()

void resqml2::AbstractIjkGridRepresentation::setJCellCount ( unsigned int jCount )

Sets the count of cells in the J direction.

Exceptions

std::logic_error If this grid is partial.

Parameters

jCount The count of cells to set in the J direction.

◆ unloadSplitInformation()

void resqml2::AbstractIjkGridRepresentation::unloadSplitInformation ( )

Unloads the split information from memory.

Member Data Documentation

◆ XML_TAG

constexpr char const* resqml2::AbstractIjkGridRepresentation::XML_TAG = "IjkGridRepresentation"

staticconstexpr

The standard XML tag without XML namespace for serializing this data object.

◆ XML_TAG_TRUNCATED

constexpr char const* resqml2::AbstractIjkGridRepresentation::XML_TAG_TRUNCATED = "TruncatedIjkGridRepresentation"

staticconstexpr

The standard XML tag without XML namespace for serializing this data object if truncated.

The documentation for this class was generated from the following file:

C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/AbstractIjkGridRepresentation.h

Public Types

Public Member Functions

Static Public Attributes

Detailed Description

Member Enumeration Documentation

◆ geometryKind

Constructor & Destructor Documentation

◆ AbstractIjkGridRepresentation() [1/3]

◆ AbstractIjkGridRepresentation() [2/3]

◆ AbstractIjkGridRepresentation() [3/3]

◆ ~AbstractIjkGridRepresentation()

Member Function Documentation

◆ getBlockSplitCoordinateLineCount()

◆ getCellCount()

◆ getCellGeometryIsDefinedFlags()

◆ getColumnCount()

◆ getColumnCountOfSplitCoordinateLines()

◆ getColumnsOfSplitCoordinateLines()

◆ getFaceCount()

◆ getGeometryKind()

◆ getGlobalIndexCellFromIjkIndex()

◆ getGlobalIndexColumnFromIjIndex()

◆ getGlobalIndexPillarFromIjIndex()

◆ getICellCount()

◆ getIColumnFromGlobalIndex()

◆ getIPillarFromGlobalIndex()

◆ getJCellCount()

◆ getJColumnFromGlobalIndex()

◆ getJPillarFromGlobalIndex()

◆ getKGaps()

◆ getKGapsCount()

◆ getPillarCount()

◆ getPillarGeometryIsDefined()

◆ getPillarsOfSplitCoordinateLines()

◆ getSplitCoordinateLineCount()

◆ getSplitNodeCount()

◆ getXmlNamespace()

◆ getXyzPointCountOfBlock()

◆ getXyzPointCountOfKInterface()

◆ getXyzPointCountOfPatch()

◆ getXyzPointIndexFromCellCorner()

◆ getXyzPointOfBlockFromCellCorner()

◆ getXyzPointsOfBlock()

◆ getXyzPointsOfKInterfaceSequence()

◆ getXyzPointsOfPatch()

◆ hasCellGeometryIsDefinedFlags()

◆ isColumnEdgeSplitted()

◆ isNodeGeometryCompressed()

◆ isRightHanded()

◆ loadBlockInformation()

◆ loadSplitInformation()

◆ setAllCellGeometryFlagsToDefined()

◆ setCellGeometryIsDefinedFlags()

◆ setICellCount()

◆ setJCellCount()

◆ unloadSplitInformation()

Member Data Documentation

◆ XML_TAG

◆ XML_TAG_TRUNCATED
