resqml2::AbstractColorMap Class Reference

Map of abstract colors. More...

#include <AbstractColorMap.h>

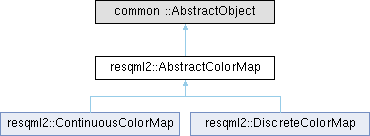

Inheritance diagram for resqml2::AbstractColorMap:

Public Member Functions
virtual void	setHsvColors (unsigned int colorCount, double const *hsvColors, double const *alphas=nullptr, std::vector< std::string > const &colorTitles=std::vector< std::string >(), double const *indices=nullptr)=0
void	setRgbColors (unsigned int colorCount, double const *rgbColors, double const *alphas=nullptr, std::vector< std::string > const &colorTitles=std::vector< std::string >(), double const *indices=nullptr)
void	setRgbColors (unsigned int colorCount, unsigned int const *rgbColors, double const *alphas=nullptr, std::vector< std::string > const &colorTitles=std::vector< std::string >(), double const *indices=nullptr)
virtual uint64_t	getColorCount () const =0
	Gets color count.
double	getHue (double colorIndex) const
double	getSaturation (double colorIndex) const
double	getValue (double colorIndex) const
double	getAlpha (double colorIndex) const
void	getRgbColor (double colorIndex, double &red, double &green, double &blue) const
void	getRgbColor (double colorIndex, unsigned int &red, unsigned int &green, unsigned int &blue) const
bool	hasColorTitle (double colorIndex) const
	Queries if 'colorIndex' has color title.
std::string	getColorTitle (double colorIndex) const
	Gets color title.
void	loadTargetRelationships ()

Detailed Description

Map of abstract colors.

Member Function Documentation

getAlpha()

double resqml2::AbstractColorMap::getAlpha

(

double

colorIndex

)

const

Parameters

colorIndex

index of a color in the color map. It is cast to unsigned int in the case of a discrete color map

Returns

alpha in the range [0, 1] (0 means transparent and 1 means opaque)

getColorCount()

virtual uint64_t resqml2::AbstractColorMap::getColorCount ( ) const

pure virtual

Gets color count.

Returns

The color count.

Implemented in resqml2::ContinuousColorMap, and resqml2::DiscreteColorMap.

getColorTitle()

std::string resqml2::AbstractColorMap::getColorTitle

(

double

colorIndex

)

const

Gets color title.

Parameters

colorIndex

Zero-based index of the color.

Returns

The color title.

getHue()

double resqml2::AbstractColorMap::getHue

(

double

colorIndex

)

const

Parameters

colorIndex

index of a color in the color map. It is cast to unsigned int in the case of a discrete color map

Returns

hue in the range [0, 360]

getRgbColor() [1/2]

void resqml2::AbstractColorMap::getRgbColor	(	double	colorIndex,
		double &	red,
		double &	green,
		double &	blue ) const

Parameters

colorIndex	index of a color in the color map. It is cast to unsigned int in the case of a discrete color map
red	(output parameter) red value in the range [0, 1]
green	(output parameter) green value in the range [0, 1]
blue	(output parameter) blue value in the range [0, 1]

getRgbColor() [2/2]

void resqml2::AbstractColorMap::getRgbColor	(	double	colorIndex,
		unsigned int &	red,
		unsigned int &	green,
		unsigned int &	blue ) const

Parameters

colorIndex	index of a color in the color map. It is cast to unsigned int in the case of a discrete color map
red	(output parameter) red value in the range [0, 1]
green	(output parameter) green value in the range [0, 1]
blue	(output parameter) blue value in the range [0, 1]

getSaturation()

double resqml2::AbstractColorMap::getSaturation

(

double

colorIndex

)

const

Parameters

colorIndex

index of a color in the color map. It is cast to unsigned int in the case of a discrete color map

Returns

saturation in the range [0, 1]

getValue()

double resqml2::AbstractColorMap::getValue

(

double

colorIndex

)

const

Parameters

colorIndex

index of a color in the color map. It is cast to unsigned int in the case of a discrete color map

Returns

value in the range [0, 1]

hasColorTitle()

bool resqml2::AbstractColorMap::hasColorTitle

(

double

colorIndex

)

const

Queries if 'colorIndex' has color title.

Parameters

colorIndex

Zero-based index of the color.

Returns

True if color title, false if not.

setHsvColors()

virtual void resqml2::AbstractColorMap::setHsvColors ( unsigned int colorCount, double const * hsvColors, double const * alphas = nullptr, std::vector< std::string > const & colorTitles = std::vector< std::string >(), double const * indices = nullptr )

pure virtual

https://en.wikipedia.org/wiki/HSV_color_space

Parameters

colorCount	the size (number of colors) of the color map
hsvColors	array (of size colorCount * 3) of HSV colors with hsvColors[3*i] is the hue, hsvColors[3*i + 1] is the saturation and hsvColors[3*i + 2] is the value of the ith color (hue is in range [0, 360] while saturation and value are in range [0, 1])
alphas	array (of size colorCount) of numeric values in the range [0, 1] for alpha transparency channel (0 means transparent and 1 means opaque). If alphas == nullptr (default value), default alpha value is 1.
colorTitles	vector (of size colorCount) of color titles. Titles are not set if colorTitles == nullptr (default value)
indices	array (of size solorCount) of color indices. These indices are cast to unsigned int in the case of a discrete color map. If indices == nullptr (default value), indices are set from 0 to colorCount - 1

Implemented in resqml2::ContinuousColorMap, and resqml2::DiscreteColorMap.

setRgbColors() [1/2]

void resqml2::AbstractColorMap::setRgbColors	(	unsigned int	colorCount,
		double const *	rgbColors,
		double const *	alphas = nullptr,
		std::vector< std::string > const &	colorTitles = std::vector< std::string >(),
		double const *	indices = nullptr )

https://en.wikipedia.org/wiki/HSV_color_space

Parameters

colorCount	the size (number of colors) of the color map
rgbColors	array (of size colorCount * 3) of RGB colors with hsvColors[3*i] is red componant, hsvColors[3*i + 1] is green component and hsvColors[3*i + 2] is blue component of the ith color (red, green and blue are in range [0, 1])
alphas	array (of size colorCount) of numeric values in the range [0, 1] for alpha transparency channel (0 means transparent and 1 means opaque). If alphas == nullptr (default value), default alpha value is 1.
colorTitles	vector (of size colorCount) of color titles. Titles are not set if colorTitles == nullptr (default value)
indices	array (of size solorCount) of color indices. These indices are cast to unsigned int in the case of a discrete color map. If indices == nullptr (default value), indices are set from 0 to colorCount - 1

setRgbColors() [2/2]

void resqml2::AbstractColorMap::setRgbColors	(	unsigned int	colorCount,
		unsigned int const *	rgbColors,
		double const *	alphas = nullptr,
		std::vector< std::string > const &	colorTitles = std::vector< std::string >(),
		double const *	indices = nullptr )

https://en.wikipedia.org/wiki/HSV_color_space

Parameters

colorCount	the size (number of colors) of the color map
rgbColors	array (of size colorCount * 3) of RGB colors with hsvColors[3*i] is red componant, hsvColors[3*i + 1] is green component and hsvColors[3*i + 2] is blue component of the ith color (red, green and blue are in range [0, 255])
alphas	array (of size colorCount) of numeric values in the range [0, 1] for alpha transparency channel (0 means transparent and 1 means opaque). If alphas == nullptr (default value), default alpha value is 1.
colorTitles	vector (of size colorCount) of color titles. Titles are not set if colorTitles == nullptr (default value)
indices	array (of size solorCount) of color indices. These indices are cast to unsigned int in the case of a discrete color map. If indices == nullptr (default value), indices are set from 0 to colorCount - 1

---

The documentation for this class was generated from the following file:

• C:/Users/philippe/dev/fesapiEnv/fesapi-2.9.0.1/src/resqml2/AbstractColorMap.h
