Proxy class for an abstract property. More...

#include <AbstractProperty.h>

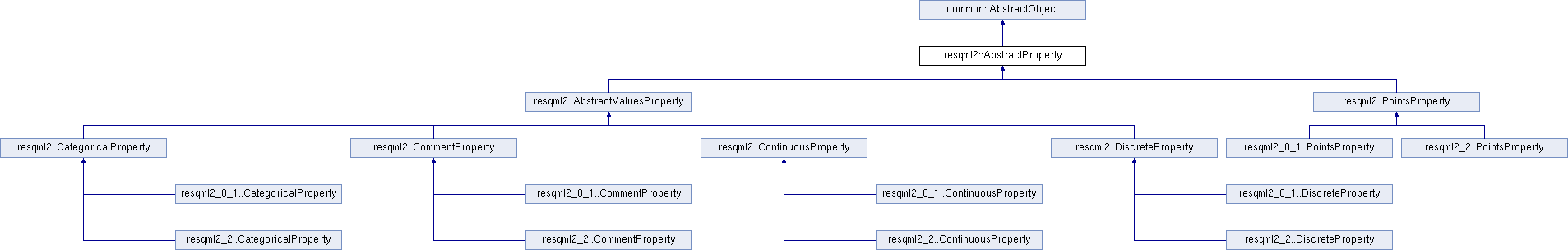

Inheritance diagram for resqml2::AbstractProperty:

Public Member Functions
virtual	~AbstractProperty ()=default

void	setRepresentation (AbstractRepresentation *rep)

common::DataObjectReference	getRepresentationDor () const

AbstractRepresentation *	getRepresentation () const

unsigned int	getElementCountPerValue () const

gsoap_eml2_3::resqml22__IndexableElement	getAttachmentKind () const

virtual unsigned int	getPatchCount () const =0

common::AbstractObject::hdfDatatypeEnum	getValuesHdfDatatype () const

unsigned int	getValuesCountOfPatch (unsigned int patchIndex) const

unsigned int	getValuesCountOfDimensionOfPatch (unsigned int dimIndex, unsigned int patchIndex) const

unsigned int	getDimensionsCountOfPatch (unsigned int patchIndex) const

std::vector< resqml2::PropertySet * >	getPropertySets () const

unsigned int	getPropertySetCount () const

resqml2::PropertySet *	getPropertySet (unsigned int index) const

void	setLocalCrs (class AbstractLocal3dCrs *crs)

class AbstractLocal3dCrs *	getLocalCrs () const

common::DataObjectReference	getLocalCrsDor () const

bool	hasRealizationIndices () const

std::vector< unsigned int >	getRealizationIndices () const

void	setRealizationIndices (int64_t startRealizationIndex, int64_t countRealizationIndices)

void	setRealizationIndices (const std::vector< unsigned int > &realizationIndices, eml2::AbstractHdfProxy *hdfProxy=nullptr)
	Sets the realization indices of this property. More...

void	setTimeSeries (eml2::TimeSeries *ts)

eml2::TimeSeries *	getTimeSeries () const

common::DataObjectReference	getTimeSeriesDor () const

void	setTimeIndices (uint64_t startTimeIndex, uint64_t countTimeIndices, eml2::TimeSeries *ts, bool useInterval=false)
	Sets the timestamps of this property by means of an index in a time series. More...

unsigned int	getTimeIndexStart () const

unsigned int	getTimeIndicesCount () const

bool	useInterval () const

bool	isAssociatedToOneStandardEnergisticsPropertyKind () const

std::string	getPropertyKindDescription () const

std::string	getPropertyKindAsString () const

std::string	getPropertyKindParentAsString () const

void	setPropertyKind (eml2::PropertyKind *propKind)

common::DataObjectReference	getPropertyKindDor () const

eml2::PropertyKind *	getPropertyKind () const

virtual bool	validatePropertyKindAssociation (eml2::PropertyKind *pk)=0

virtual bool	validatePropertyKindAssociation (gsoap_resqml2_0_1::resqml20__ResqmlPropertyKind pk)=0

bool	validate ()

Public Member Functions inherited from common::AbstractObject
bool	isPartial () const

virtual bool	isTopLevelElement () const

std::string	getUuid () const

std::string	getTitle () const

std::string	getEditor () const

time_t	getCreation () const

tm	getCreationAsTimeStructure () const

std::string	getOriginator () const

std::string	getDescription () const

time_t	getLastUpdate () const

tm	getLastUpdateAsTimeStructure () const

std::string	getFormat () const

std::string	getDescriptiveKeywords () const

std::string	getVersion () const

void	setTitle (const std::string &title)

void	setEditor (const std::string &editor)

void	setCreation (time_t creation)

void	setCreation (const tm &creation)

void	setOriginator (const std::string &originator)

void	setDescription (const std::string &description)

void	setLastUpdate (time_t lastUpdate)

void	setLastUpdate (const tm &lastUpdate)

void	setDescriptiveKeywords (const std::string &descriptiveKeywords)

void	setVersion (const std::string &version)

void	setMetadata (const std::string &title, const std::string &editor, time_t creation, const std::string &originator, const std::string &description, time_t lastUpdate, const std::string &descriptiveKeywords)

void	serializeIntoStream (std::ostream *stream)

gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *	getEml20GsoapProxy () const

void	setGsoapProxy (gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *gsoapProxy)

gsoap_eml2_1::eml21__AbstractObject *	getEml21GsoapProxy () const

void	setGsoapProxy (gsoap_eml2_1::eml21__AbstractObject *gsoapProxy)

gsoap_eml2_2::eml22__AbstractObject *	getEml22GsoapProxy () const

void	setGsoapProxy (gsoap_eml2_2::eml22__AbstractObject *gsoapProxy)

gsoap_eml2_3::eml23__AbstractObject *	getEml23GsoapProxy () const

void	setGsoapProxy (gsoap_eml2_3::eml23__AbstractObject *gsoapProxy)

soap *	getGsoapContext () const

int	getGsoapType () const

gsoap_resqml2_0_1::eml20__DataObjectReference *	newResqmlReference () const

gsoap_eml2_1::eml21__DataObjectReference *	newEmlReference () const

gsoap_eml2_2::eml22__DataObjectReference *	newEml22Reference () const

gsoap_eml2_3::eml23__DataObjectReference *	newEml23Reference () const

gsoap_resqml2_0_1::resqml20__ContactElementReference *	newContactElementReference2_0_1 () const

gsoap_eml2_3::resqml22__ContactElement *	newContactElementReference2_2 () const

common::DataObjectRepository *	getRepository () const

virtual std::string	getXmlNamespace () const =0

virtual std::string	getXmlTag () const =0

virtual std::string	getXmlNamespaceVersion () const

virtual std::string	getContentType () const

virtual std::string	getQualifiedType () const

virtual std::string	getPartNameInEpcDocument () const

std::string	serializeIntoString ()

void	addAlias (const std::string &authority, const std::string &title)

unsigned int	getAliasCount () const

std::string	getAliasAuthorityAtIndex (unsigned int index) const

std::string	getAliasTitleAtIndex (unsigned int index) const

std::vector< eml2::Activity * >	getActivitySet () const

unsigned int	getActivityCount () const

eml2::Activity *	getActivity (unsigned int index) const

void	pushBackExtraMetadata (const std::string &key, const std::string &value)

std::unordered_map< std::string, std::string >	getExtraMetadataSet () const

std::vector< std::string >	getExtraMetadata (const std::string &key) const

unsigned int	getExtraMetadataCount () const

std::string	getExtraMetadataKeyAtIndex (unsigned int index) const

std::string	getExtraMetadataStringValueAtIndex (unsigned int index) const

std::string	buildEtp12Uri () const

void	setUriSource (const std::string &uriSource)

const std::string &	getUriSource () const

std::string	getEpcSourceFolder () const

void	changeToPartialObject ()

virtual void	loadTargetRelationships ()=0

Additional Inherited Members
Public Types inherited from common::AbstractObject
enum	hdfDatatypeEnum { UNKNOWN = 0 , DOUBLE = 1 , FLOAT = 2 , LONG_64 = 3 , ULONG_64 = 4 , INT = 5 , UINT = 6 , SHORT = 7 , USHORT = 8 , CHAR = 9 , UCHAR = 10 }

Static Public Member Functions inherited from common::AbstractObject
static void	setFormat (const std::string &vendor, const std::string &applicationName, const std::string &applicationVersionNumber)

Detailed Description

Proxy class for an abstract property.

Constructor & Destructor Documentation

◆ ~AbstractProperty()

virtual resqml2::AbstractProperty::~AbstractProperty ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context

Member Function Documentation

◆ getAttachmentKind()

gsoap_eml2_3::resqml22__IndexableElement resqml2::AbstractProperty::getAttachmentKind ( ) const

Gets the kind of elements on which the property values are attached to

Returns: The kind of elements on which the property values are attached to.

◆ getDimensionsCountOfPatch()

unsigned int resqml2::AbstractProperty::getDimensionsCountOfPatch ( unsigned int patchIndex ) const

Gets the count of dimensions of the underlying HDF5 dataset of a given patch of this property.

Exceptions

std::range_error If patchIndex is strictly greater than patch count.

Parameters

patchIndex The index of the patch we want to count the dimensions from.

Returns: The number of values, 0 otherwise.

◆ getElementCountPerValue()

unsigned int resqml2::AbstractProperty::getElementCountPerValue ( ) const

Gets the count of elements per property value. If the property is a scalar one then it should be one. If it is a vectorial one, then it should be more than one. It is not possible to have some tensor property values (more dimensions than a vector)

Returns: The element count per value.

◆ getLocalCrs()

class AbstractLocal3dCrs * resqml2::AbstractProperty::getLocalCrs ( ) const

Gets the local CRS which is associated to this property.

Returns: The local CRS which is associated to the current property if exists, null if not (usually for a property which is not CRS related).

◆ getLocalCrsDor()

common::DataObjectReference resqml2::AbstractProperty::getLocalCrsDor ( ) const

Gets the data object reference of the local CRS which is associated to this property

Returns: Empty data object reference if no local CRS is associated to this property. Otherwise returns the data object reference of the associated local CRS.

◆ getPatchCount()

virtual unsigned int resqml2::AbstractProperty::getPatchCount ( ) const

pure virtual

Gets the number of patches in this values property. It should be the same count as the patch count of the associated representation.

Exceptions

std::out_of_range If the patch count is strictly greater than unsigned int max value.

Returns: The patch count.

Implemented in resqml2::AbstractValuesProperty, resqml2_0_1::PointsProperty, and resqml2_2::PointsProperty.

◆ getPropertyKind()

eml2::PropertyKind * resqml2::AbstractProperty::getPropertyKind ( ) const

Gets the local property kind which is associated to this instance

Exceptions

std::invalid_argument If the property kind of this property is not a local one.

Returns: A pointer to the property kind.

◆ getPropertyKindAsString()

std::string resqml2::AbstractProperty::getPropertyKindAsString ( ) const

Gets the title of the property kind of this property

Returns: The property kind title.

◆ getPropertyKindDescription()

std::string resqml2::AbstractProperty::getPropertyKindDescription ( ) const

Gets the description of the property kind of this property

Exceptions

std::invalid_argument If the property kind is a standard Energistics one and the property kind mapping file is not loaded.

Returns: The property kind description.

◆ getPropertyKindDor()

common::DataObjectReference resqml2::AbstractProperty::getPropertyKindDor ( ) const

Gets the data object reference of the property kind associated to this property

Exceptions

std::invalid_argument If the property kind of this property is not a local one.

Returns: Empty data object reference if no property kind is associated to this property. Otherwise return the data object reference of the associated local property kind.

◆ getPropertyKindParentAsString()

std::string resqml2::AbstractProperty::getPropertyKindParentAsString ( ) const

Get the title of the parent property kind of this property

Exceptions

std::invalid_argument If the property kind is a standard Energistics one and the property kind mapping file is not loaded.

Returns: The parent property kind title.

◆ getPropertySet()

resqml2::PropertySet * resqml2::AbstractProperty::getPropertySet ( unsigned int index ) const

Gets a given property set taken from all property sets which contain this property

Exceptions

std::out_of_range If index is out of range.

Parameters

index Zero-based index of the property set we look for.

Returns: The property set at index.

◆ getPropertySetCount()

unsigned int resqml2::AbstractProperty::getPropertySetCount ( ) const

Gets the count of property sets which contain this property

Exceptions

std::range_error If the count of property sets is strictly greater than unsigned int max.

Returns: The count of property sets which contain this property.

◆ getPropertySets()

std::vector< resqml2::PropertySet * > resqml2::AbstractProperty::getPropertySets ( ) const

Gets all property sets which contain this property

Returns: A vector of all property sets which contain this property.

◆ getRealizationIndices()

std::vector< unsigned int > resqml2::AbstractProperty::getRealizationIndices ( ) const

Gets the realization index of this property. Realization index is used if the property is the result of a multi-realization process. You should have checked before that this property actually has a realization index.

Exceptions

std::invalid_argument If this property has actually no realization index.

Returns: The realization index.

◆ getRepresentation()

AbstractRepresentation * resqml2::AbstractProperty::getRepresentation ( ) const

Gets the representation which is associated to the current property. That is to say the one which supports this instance values, also called supporting representation

Returns: The representation which is associated to the current property.

◆ getRepresentationDor()

common::DataObjectReference resqml2::AbstractProperty::getRepresentationDor ( ) const

Gets the data object reference of the representation which is associated to the current property

Returns: Empty data object reference if no representation is associated to this property. Otherwise returns the data object reference of the associated representation. Null should not occured since each property must be associated to a representation.

◆ getTimeIndexStart()

unsigned int resqml2::AbstractProperty::getTimeIndexStart ( ) const

Get the time index of this property in its associated time series

Exceptions

std::invalid_argument If this property does not have any time index.

Returns: The time index of this property.

◆ getTimeIndicesCount()

unsigned int resqml2::AbstractProperty::getTimeIndicesCount ( ) const

Get the time indices count of this property in its associated time series

Returns: The time indices count of this property.

◆ getTimeSeries()

eml2::TimeSeries * resqml2::AbstractProperty::getTimeSeries ( ) const

Gets the time series which is associated to this property

Returns: Null pointer if no time series is associated to this property. Otherwise returns the associated time series.

◆ getTimeSeriesDor()

common::DataObjectReference resqml2::AbstractProperty::getTimeSeriesDor ( ) const

Gets the data object reference of the time series associated to this property

Returns: Empty data object reference if no time series is associated to this property. Otherwise returns the data object reference of the associated time series.

◆ getValuesCountOfDimensionOfPatch()

unsigned int resqml2::AbstractProperty::getValuesCountOfDimensionOfPatch	(	unsigned int	dimIndex,
		unsigned int	patchIndex
	)		const

Gets the count of values on a specific dimension of the underlying HDF5 dataset of a given patch of this property.

Exceptions

std::out_of_range	If `dimIndex` is strictly greater than dimension count.
std::range_error	If `patchIndex` is strictly greater than patch count.

Parameters

dimIndex	The index of the dimension we want to count the values from.
patchIndex	The index of the patch we want to count the values from.

Returns: The count of values in the dimIndex dimension of patchIndex patch.

◆ getValuesCountOfPatch()

unsigned int resqml2::AbstractProperty::getValuesCountOfPatch ( unsigned int patchIndex ) const

Gets the count of all values contained into the underlying HDF5 dataset of a given patch of this property.

Exceptions

std::range_error If patchIndex is strictly greater than patch count.

Parameters

patchIndex The index of the patch we want to count the values from.

Returns: The count of values of the patchIndex patch.

◆ getValuesHdfDatatype()

common::AbstractObject::hdfDatatypeEnum resqml2::AbstractProperty::getValuesHdfDatatype ( ) const

Get the values data type in the HDF dataset

Returns: The data type of the values if successful, else UNKNOWN.

◆ hasRealizationIndices()

bool resqml2::AbstractProperty::hasRealizationIndices ( ) const

Checks if this property has at least one realization index. Realization index is used if the property is the result of a multi-realization process. Reamrk : v2.0.1 is constrained to have a maximum of one realisation index

Returns: True if the property has at least one realization index, false if not.

◆ isAssociatedToOneStandardEnergisticsPropertyKind()

bool resqml2::AbstractProperty::isAssociatedToOneStandardEnergisticsPropertyKind ( ) const

Indicates if the property kind attached to this property is either from the standard catalog of Energistics or from a local property kind

Returns: True if associated to one standard Energistics property kind, false if not.

◆ setLocalCrs()

void resqml2::AbstractProperty::setLocalCrs ( class AbstractLocal3dCrs * crs )

Sets the local CRS which is associated to the current property. You should not set any CRS if your property is not CRS related

Exceptions

std::invalid_argument If crs is null.

Parameters

[in] crs The local CRS to associate with the current property.

◆ setPropertyKind()

void resqml2::AbstractProperty::setPropertyKind ( eml2::PropertyKind * propKind )

Sets the property kind of this property to a local one

Exceptions

std::invalid_argument If propKind is null.

Parameters

[in] propKind The local property kind to set to this property.

◆ setRealizationIndices() [1/2]

void resqml2::AbstractProperty::setRealizationIndices	(	const std::vector< unsigned int > &	realizationIndices,
		eml2::AbstractHdfProxy *	hdfProxy = `nullptr`
	)

Sets the realization indices of this property.

Exceptions

std::invalid_argument	If `realizationIndices` is empty.
std::invalid_argument	If the `realizationIndices` size is strictly greater than 1 in a RESQML 2.0.1 context.
std::invalid_argument	If, in a RESQML 2.2 context, `hdfProxy == nullptr` and no default HDF proxy is defined in the repository.
std::logic_error	If no supported gSOAP proxy is available.

Parameters

	realizationIndices	The realization indices to set to this property.
[in,out]	hdfProxy	(Optional) The HDF proxy where to store `realizationIndices` values. If `nullptr` (default), then the repository default HDF proxy will be used.

◆ setRealizationIndices() [2/2]

void resqml2::AbstractProperty::setRealizationIndices	(	int64_t	startRealizationIndex,
		int64_t	countRealizationIndices
	)

Sets the realization indices of this property

Parameters

startRealizationIndex	The first realization index to set to this property.
countRealizationIndices	The count of realization indices to set to this property.

◆ setRepresentation()

void resqml2::AbstractProperty::setRepresentation ( AbstractRepresentation * rep )

Sets the representation which is associated to the current property

Exceptions

std::invalid_argument If rep is null.

Parameters

[in] rep The representation to associate to the current property.

◆ setTimeIndices()

void resqml2::AbstractProperty::setTimeIndices	(	uint64_t	startTimeIndex,
		uint64_t	countTimeIndices,
		eml2::TimeSeries *	ts,
		bool	useInterval = `false`
	)

Sets the timestamps of this property by means of an index in a time series.

Exceptions

invalid_argument If ts is null or if the current property has no time index.

Parameters

[in]	startTimeIndex	The first time index to set to this property.
[in]	countTimeIndices	The count of time indices to set to this property.
[in]	ts	The time series which contains the timestamps of this property.
[in]	useInterval	(Optional) When UseInterval is true, the values are associated with each time intervals between two consecutive time entries instead of each individual time entry. As a consequence the dimension of the value array corresponding to the time series is the number of entry in the series minus one.

◆ setTimeSeries()

void resqml2::AbstractProperty::setTimeSeries ( eml2::TimeSeries * ts )

Sets the time series associated to the current property

Exceptions

invalid_argument If ts is null or if the current property has no time indices.

Parameters

[in] ts The time series to associate to this property

◆ useInterval()

bool resqml2::AbstractProperty::useInterval ( ) const

Check if the values are given at each time index or between each time index.

◆ validate()

bool resqml2::AbstractProperty::validate ( )

Checks if the associated property kind is allowed for this property.

Returns: True if it is allowed, false if it is not.

◆ validatePropertyKindAssociation() [1/2]

virtual bool resqml2::AbstractProperty::validatePropertyKindAssociation ( eml2::PropertyKind * pk )

pure virtual

Checks if it is allowed to associate a given property kind to this property.

Parameters

[in] pk The local property kind to check.

Returns: True if it is allowed, false if it is not.

Implemented in resqml2::PointsProperty, resqml2_2::CategoricalProperty, resqml2_2::CommentProperty, resqml2_2::ContinuousProperty, resqml2_2::DiscreteProperty, resqml2_0_1::CategoricalProperty, resqml2_0_1::CommentProperty, resqml2_0_1::ContinuousProperty, and resqml2_0_1::DiscreteProperty.

◆ validatePropertyKindAssociation() [2/2]

virtual bool resqml2::AbstractProperty::validatePropertyKindAssociation ( gsoap_resqml2_0_1::resqml20__ResqmlPropertyKind pk )

pure virtual

Checks if it is allowed to associate a given standard Energistics property kind to this property.

Parameters

pk	The standard Energistics property kind to check.

Returns: True if it is allowed, false if it is not.

Implemented in resqml2_0_1::CategoricalProperty, resqml2_0_1::CommentProperty, resqml2_0_1::ContinuousProperty, resqml2_0_1::DiscreteProperty, resqml2::PointsProperty, resqml2_2::CategoricalProperty, resqml2_2::CommentProperty, resqml2_2::ContinuousProperty, and resqml2_2::DiscreteProperty.

The documentation for this class was generated from the following file:

C:/Users/philippe/dev/fesapiEnv/fesapi-2.3.0.0/src/resqml2/AbstractProperty.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~AbstractProperty()

Member Function Documentation

◆ getAttachmentKind()

◆ getDimensionsCountOfPatch()

◆ getElementCountPerValue()

◆ getLocalCrs()

◆ getLocalCrsDor()

◆ getPatchCount()

◆ getPropertyKind()

◆ getPropertyKindAsString()

◆ getPropertyKindDescription()

◆ getPropertyKindDor()

◆ getPropertyKindParentAsString()

◆ getPropertySet()

◆ getPropertySetCount()

◆ getPropertySets()

◆ getRealizationIndices()

◆ getRepresentation()

◆ getRepresentationDor()

◆ getTimeIndexStart()

◆ getTimeIndicesCount()

◆ getTimeSeries()

◆ getTimeSeriesDor()

◆ getValuesCountOfDimensionOfPatch()

◆ getValuesCountOfPatch()

◆ getValuesHdfDatatype()

◆ hasRealizationIndices()

◆ isAssociatedToOneStandardEnergisticsPropertyKind()

◆ setLocalCrs()

◆ setPropertyKind()

◆ setRealizationIndices() [1/2]

◆ setRealizationIndices() [2/2]

◆ setRepresentation()

◆ setTimeIndices()

◆ setTimeSeries()

◆ useInterval()

◆ validate()

◆ validatePropertyKindAssociation() [1/2]

◆ validatePropertyKindAssociation() [2/2]
