Defines a plane representation, which can be made up of multiple patches. Commonly represented features are fluid contacts or frontiers. Common geometries of this representation are titled or horizontal planes. More...

#include <PlaneSetRepresentation.h>

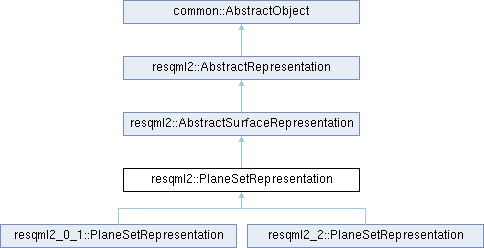

Inheritance diagram for resqml2::PlaneSetRepresentation:

Public Member Functions
virtual	~PlaneSetRepresentation ()=default
common::DataObjectReference	getHdfProxyDor () const
	Gets the data object reference of the HDF proxy which is used for storing the numerical values of this representation (i.e. its geometry).
virtual void	pushBackHorizontalPlaneGeometryPatch (double zCoordinate, eml2::AbstractLocal3dCrs *localCrs=nullptr)=0
virtual void	pushBackTiltedPlaneGeometryPatch (double x1, double y1, double z1, double x2, double y2, double z2, double x3, double y3, double z3, eml2::AbstractLocal3dCrs *localCrs=nullptr)=0
virtual std::string	getXmlTag () const final
Public Member Functions inherited from resqml2::AbstractSurfaceRepresentation
virtual	~AbstractSurfaceRepresentation ()=default
unsigned int	getBoundariesCount () const
common::DataObjectReference	getOuterRingDor (unsigned int index) const
void	pushBackOuterRing (PolylineRepresentation *outerRing)
void	setSurfaceRole (gsoap_resqml2_0_1::resqml20__SurfaceRole surfaceRole)
gsoap_resqml2_0_1::resqml20__SurfaceRole	getSurfaceRole () const
Public Member Functions inherited from resqml2::AbstractRepresentation
virtual	~AbstractRepresentation ()=default
eml2::AbstractLocal3dCrs *	getLocalCrs (uint64_t patchIndex) const
virtual common::DataObjectReference	getLocalCrsDor (uint64_t patchIndex) const
void	setTimeIndex (uint64_t timeIndex, eml2::TimeSeries *timeSeries)
uint64_t	getTimeIndex () const
	Gets the time index of this representation in the associated TimeSeries. Be sure to first check that a TimeSeries is associated this representation by calling getTimeSeriesDor or getTimeSeries;.
eml2::TimeSeries *	getTimeSeries () const
common::DataObjectReference	getTimeSeriesDor () const
	Gets the data object reference of the TimeSeries containing the time of this representation at a particular index. For now, this method only look for a TimeSeries at the first patch containing a point geometry.
std::vector< class AbstractProperty * >	getPropertySet () const
void	setInterpretation (class AbstractFeatureInterpretation *interp)
class AbstractFeatureInterpretation *	getInterpretation () const
common::DataObjectReference	getInterpretationDor () const
virtual uint64_t	getXyzPointCountOfPatch (uint64_t patchIndex) const =0
uint64_t	getXyzPointCountOfAllPatches () const
virtual void	getXyzPointsOfPatch (uint64_t patchIndex, double *xyzPoints) const =0
	Gets all the xyz points of a particular patch of this representation. xyz points are given in the local CRS.
void	getXyzPointsOfPatchInGlobalCrs (uint64_t patchIndex, double *xyzPoints) const
	Gets all the xyz points of a particular patch of this representation. xyz points are given in the global CRS.
void	getXyzPointsOfAllPatches (double *xyzPoints) const
	Gets all the xyz points of all patches of this representation. xyz points are given in the local CRS.
bool	isInSingleLocalCrs () const
bool	isInSingleGlobalCrs () const
void	getXyzPointsOfAllPatchesInGlobalCrs (double *xyzPoints) const
AbstractRepresentation *	getSeismicSupportOfPatch (uint64_t patchIndex) const
std::set< AbstractRepresentation * >	getAllSeismicSupport () const
virtual uint64_t	getPatchCount () const =0
void	pushBackIntoRepresentationSet (class RepresentationSetRepresentation *repSet)
void	addSeismic3dCoordinatesToPatch (uint64_t patchIndex, double inlines, double crosslines, uint64_t pointCount, resqml2::AbstractRepresentation seismicSupport, eml2::AbstractHdfProxy proxy)
void	addSeismic3dCoordinatesToPatch (uint64_t patchIndex, double startInline, double incrInline, unsigned int countInline, double startCrossline, double incrCrossline, unsigned int countCrossline, resqml2::AbstractRepresentation *seismicSupport)
void	addSeismic2dCoordinatesToPatch (uint64_t patchIndex, double lineAbscissa, resqml2::AbstractRepresentation seismicSupport, eml2::AbstractHdfProxy *proxy)
void	getSeismicLineAbscissaOfPointsOfPatch (uint64_t patchIndex, double *values) const
void	getInlinesOfPointsOfPatch (uint64_t patchIndex, double *values) const
void	getCrosslinesOfPointsOfPatch (uint64_t patchIndex, double *values) const
Public Member Functions inherited from common::AbstractObject
bool	isPartial () const
virtual bool	isTopLevelElement () const
std::string	getUuid () const
std::string	getTitle () const
std::string	getEditor () const
time_t	getCreation () const
tm	getCreationAsTimeStructure () const
std::string	getOriginator () const
std::string	getDescription () const
time_t	getLastUpdate () const
tm	getLastUpdateAsTimeStructure () const
std::string	getFormat () const
std::string	getDescriptiveKeywords () const
std::string	getVersion () const
void	setTitle (const std::string &title)
void	setEditor (const std::string &editor)
void	setCreation (time_t creation)
void	setCreation (const tm &creation)
void	setOriginator (const std::string &originator)
void	setDescription (const std::string &description)
void	setLastUpdate (time_t lastUpdate)
void	setLastUpdate (const tm &lastUpdate)
void	setDescriptiveKeywords (const std::string &descriptiveKeywords)
void	setVersion (const std::string &version)
void	setMetadata (const std::string &title, const std::string &editor, time_t creation, const std::string &originator, const std::string &description, time_t lastUpdate, const std::string &descriptiveKeywords)
void	serializeIntoStream (std::ostream *stream)
gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *	getEml20GsoapProxy () const
void	setGsoapProxy (gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *gsoapProxy)
gsoap_eml2_3::eml23__AbstractObject *	getEml23GsoapProxy () const
void	setGsoapProxy (gsoap_eml2_3::eml23__AbstractObject *gsoapProxy)
soap *	getGsoapContext () const
int	getGsoapType () const
gsoap_resqml2_0_1::eml20__DataObjectReference *	newResqmlReference () const
gsoap_eml2_3::eml23__DataObjectReference *	newEml23Reference () const
gsoap_resqml2_0_1::resqml20__ContactElementReference *	newContactElementReference2_0_1 () const
gsoap_eml2_3::resqml22__ContactElement *	newContactElementReference2_2 () const
common::DataObjectRepository *	getRepository () const
virtual std::string	getXmlNamespace () const =0
virtual std::string	getXmlNamespaceVersion () const
virtual std::string	getContentType () const
virtual std::string	getQualifiedType () const
virtual std::string	getPartNameInEpcDocument () const
std::string	serializeIntoString ()
void	addAlias (const std::string &authority, const std::string &title)
uint64_t	getAliasCount () const
std::string	getAliasAuthorityAtIndex (uint64_t index) const
std::string	getAliasTitleAtIndex (uint64_t index) const
std::vector< eml2::Activity * >	getActivitySet () const
uint64_t	getActivityCount () const
eml2::Activity *	getActivity (uint64_t index) const
void	pushBackExtraMetadata (const std::string &key, const std::string &value)
std::unordered_map< std::string, std::string >	getExtraMetadataSet () const
std::vector< std::string >	getExtraMetadata (const std::string &key) const
uint64_t	getExtraMetadataCount () const
std::string	getExtraMetadataKeyAtIndex (uint64_t index) const
std::string	getExtraMetadataStringValueAtIndex (uint64_t index) const
std::string	buildEtp12Uri () const
void	setUriSource (const std::string &uriSource)
const std::string &	getUriSource () const
std::string	getEpcSourceFolder () const
void	changeToPartialObject ()
template<>
int8_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, int8_t arrayOutput) const
template<>
uint8_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, uint8_t arrayOutput) const
template<>
int16_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, int16_t arrayOutput) const
template<>
uint16_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, uint16_t arrayOutput) const
template<>
int32_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, int32_t arrayOutput) const
template<>
uint32_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, uint32_t arrayOutput) const
template<>
int64_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, int64_t arrayOutput) const
template<>
uint64_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, uint64_t arrayOutput) const
template<>
int8_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, int8_t arrayOutput) const
template<>
uint8_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, uint8_t arrayOutput) const
template<>
int16_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, int16_t arrayOutput) const
template<>
uint16_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, uint16_t arrayOutput) const
template<>
int32_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, int32_t arrayOutput) const
template<>
uint32_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, uint32_t arrayOutput) const
template<>
int64_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, int64_t arrayOutput) const
template<>
uint64_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, uint64_t arrayOutput) const

Static Public Attributes
static constexpr char const *	XML_TAG = "PlaneSetRepresentation"
Static Public Attributes inherited from resqml2::AbstractRepresentation
static constexpr char const *	XML_TAG = "AbstractRepresentation"

Additional Inherited Members
Public Types inherited from common::AbstractObject
enum class	numericalDatatypeEnum { UNKNOWN = 0 , DOUBLE = 1 , FLOAT = 2 , INT64 = 3 , UINT64 = 4 , INT32 = 5 , UINT32 = 6 , INT16 = 7 , UINT16 = 8 , INT8 = 9 , UINT8 = 10 }
Static Public Member Functions inherited from common::AbstractObject
static void	setFormat (const std::string &vendor, const std::string &applicationName, const std::string &applicationVersionNumber)

Detailed Description

Defines a plane representation, which can be made up of multiple patches. Commonly represented features are fluid contacts or frontiers. Common geometries of this representation are titled or horizontal planes.

BUSINESS RULE: If the plane representation is made up of multiple patches, then you must specify the outer rings for each plane patch.

Constructor & Destructor Documentation

◆ ~PlaneSetRepresentation()

virtual resqml2::PlaneSetRepresentation::~PlaneSetRepresentation ( )

virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Reimplemented in resqml2_0_1::PlaneSetRepresentation, and resqml2_2::PlaneSetRepresentation.

Member Function Documentation

◆ getHdfProxyDor()

common::DataObjectReference resqml2::PlaneSetRepresentation::getHdfProxyDor ( ) const

inlinevirtual

Gets the data object reference of the HDF proxy which is used for storing the numerical values of this representation (i.e. its geometry).

Returns: Empty DOR since plane set representation values do not rely a HDF proxy (it is XML only).

Implements resqml2::AbstractRepresentation.

◆ getXmlTag()

virtual std::string resqml2::PlaneSetRepresentation::getXmlTag ( ) const

inlinefinalvirtual

Gets the standard XML tag without XML namespace for serializing this data object.

Returns: The XML tag.

Implements common::AbstractObject.

◆ pushBackHorizontalPlaneGeometryPatch()

virtual void resqml2::PlaneSetRepresentation::pushBackHorizontalPlaneGeometryPatch	(	double	zCoordinate,
		eml2::AbstractLocal3dCrs *	localCrs = nullptr )

pure virtual

Pushes back a new patch which is an horizontal plane.

Exceptions

std::invalid_argument If localCrs == nullptr and no default CRS is defined in the repository.

Parameters

	zCoordinate	The z coordinate of the horizontal plane.
[in]	localCrs	(Optional) If non-null, the local CRS. If `nullptr` (default), the repository default local CRS will be used.

Implemented in resqml2_0_1::PlaneSetRepresentation, and resqml2_2::PlaneSetRepresentation.

◆ pushBackTiltedPlaneGeometryPatch()

virtual void resqml2::PlaneSetRepresentation::pushBackTiltedPlaneGeometryPatch	(	double	x1,
		double	y1,
		double	z1,
		double	x2,
		double	y2,
		double	z2,
		double	x3,
		double	y3,
		double	z3,
		eml2::AbstractLocal3dCrs *	localCrs = nullptr )

pure virtual

Pushs back a new patch which is not a horizontal plane. Its geometry is given by means of 3 xyz points.

Exceptions

std::invalid_argument If localCrs == nullptr and no default CRS is defined in the repository.

Parameters

	x1	The x value of the first point.
	y1	The y value of the first point.
	z1	The z value of the first point.
	x2	The x value of the second point.
	y2	The y value of the second point.
	z2	The z value of the second point.
	x3	The x value of the third point.
	y3	The y value of the third point.
	z3	The z value of the third point.
[in]	localCrs	(Optional) If non-null, the local CRS. If `nullptr` (default), the repository default local CRS will be used.

Implemented in resqml2_0_1::PlaneSetRepresentation, and resqml2_2::PlaneSetRepresentation.

Member Data Documentation

◆ XML_TAG

char const* resqml2::PlaneSetRepresentation::XML_TAG = "PlaneSetRepresentation"

staticconstexpr

The standard XML tag without XML namespace for serializing this data object.

The documentation for this class was generated from the following file:

C:/Users/phili/dev/fesapi/fesapi-2.14.0.0/src/resqml2/PlaneSetRepresentation.h
