A proxy for reading and writing values into an HDF5 file. More...

#include <HdfProxy.h>

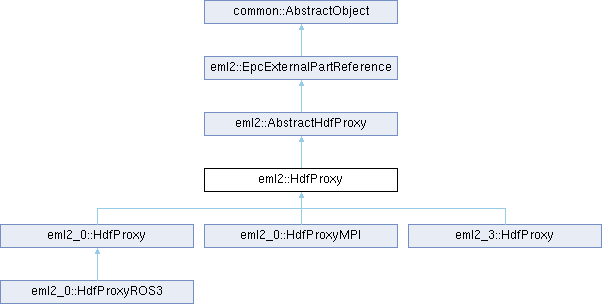

Inheritance diagram for eml2::HdfProxy:

Public Member Functions
	HdfProxy (gsoap_resqml2_0_1::eml20__DataObjectReference *partialObject)
	HdfProxy (const common::DataObjectReference &dor)
	Constructor.
virtual	~HdfProxy ()
void	open () override
bool	isOpened () const final
void	close () final
common::AbstractObject::numericalDatatypeEnum	getNumericalDatatype (const std::string &groupName) final
int	getHdfDatatypeClassInDataset (const std::string &datasetName) final
void	writeItemizedListOfList (const std::string &groupName, const std::string &name, common::AbstractObject::numericalDatatypeEnum cumulativeLengthDatatype, const void cumulativeLength, uint64_t cumulativeLengthSize, common::AbstractObject::numericalDatatypeEnum elementsDatatype, const void elements, uint64_t elementsSize) final
std::vector< uint32_t >	getElementCountPerDimension (const std::string &datasetName) final
void	setCompressionLevel (unsigned int newCompressionLevel) final
void	writeArrayNd (const std::string &groupName, const std::string &name, common::AbstractObject::numericalDatatypeEnum datatype, const void values, const uint64_t numValuesInEachDimension, unsigned int numDimensions) final
void	createArrayNd (const std::string &groupName, const std::string &name, common::AbstractObject::numericalDatatypeEnum datatype, const uint64_t *numValuesInEachDimension, unsigned int numDimensions) final
void	writeArrayNdSlab (const std::string &groupName, const std::string &name, common::AbstractObject::numericalDatatypeEnum datatype, const void values, const uint64_t numValuesInEachDimension, const uint64_t *offsetValuesInEachDimension, unsigned int numDimensions) final
void	writeGroupAttributes (const std::string &groupName, const std::vector< std::string > &attributeNames, const std::vector< std::string > &values) final
void	writeGroupAttribute (const std::string &groupName, const std::string &attributeName, const std::vector< std::string > &values) final
void	writeGroupAttributes (const std::string &groupName, const std::vector< std::string > &attributeNames, const std::vector< double > &values) final
void	writeGroupAttributes (const std::string &groupName, const std::vector< std::string > &attributeNames, const std::vector< int > &values) final
void	writeDatasetAttributes (const std::string &datasetName, const std::vector< std::string > &attributeNames, const std::vector< std::string > &values) final
void	writeDatasetAttribute (const std::string &datasetName, const std::string &attributeName, const std::vector< std::string > &values) final
void	writeDatasetAttributes (const std::string &datasetName, const std::vector< std::string > &attributeNames, const std::vector< double > &values) final
void	writeDatasetAttributes (const std::string &datasetName, const std::vector< std::string > &attributeNames, const std::vector< int > &values) final
std::string	readStringAttribute (const std::string &obj_name, const std::string &attr_name) const final
std::vector< std::string >	readStringArrayAttribute (const std::string &obj_name, const std::string &attr_name) const final
double	readDoubleAttribute (const std::string &obj_name, const std::string &attr_name) const final
int64_t	readInt64Attribute (const std::string &obj_name, const std::string &attr_name) const final
void	readArrayNdOfDoubleValues (const std::string &datasetName, double *values) final
void	readArrayNdOfDoubleValues (const std::string &datasetName, double values, uint64_t const numValuesInEachDimension, uint64_t const *offsetInEachDimension, unsigned int numDimensions) final
void	readArrayNdOfDoubleValues (const std::string &datasetName, double values, uint64_t const blockCountPerDimension, uint64_t const offsetInEachDimension, uint64_t const strideInEachDimension, uint64_t const *blockSizeInEachDimension, unsigned int numDimensions) final
void	selectArrayNdOfValues (const std::string &datasetName, uint64_t const blockCountPerDimension, uint64_t const offsetInEachDimension, uint64_t const strideInEachDimension, uint64_t const blockSizeInEachDimension, unsigned int numDimensions, bool newSelection, hdf5_hid_t &dataset, hdf5_hid_t &filespace) final
void	readArrayNdOfDoubleValues (hdf5_hid_t dataset, hdf5_hid_t filespace, void *values, uint64_t slabSize) final
void	readArrayNdOfFloatValues (const std::string &datasetName, float *values) final
void	readArrayNdOfFloatValues (const std::string &datasetName, float values, uint64_t const numValuesInEachDimension, uint64_t const *offsetInEachDimension, unsigned int numDimensions) final
void	readArrayNdOfInt64Values (const std::string &datasetName, int64_t *values) final
void	readArrayNdOfInt64Values (const std::string &datasetName, int64_t values, uint64_t const numValuesInEachDimension, uint64_t const *offsetInEachDimension, unsigned int numDimensions) final
void	readArrayNdOfUInt64Values (const std::string &datasetName, uint64_t *values) final
void	readArrayNdOfIntValues (const std::string &datasetName, int *values) final
void	readArrayNdOfIntValues (const std::string &datasetName, int values, uint64_t const numValuesInEachDimension, uint64_t const *offsetInEachDimension, unsigned int numDimensions) final
void	readArrayNdOfUIntValues (const std::string &datasetName, unsigned int *values) final
void	readArrayNdOfShortValues (const std::string &datasetName, short *values) final
void	readArrayNdOfUShortValues (const std::string &datasetName, unsigned short *values) final
void	readArrayNdOfInt8Values (const std::string &datasetName, int8_t *values) final
void	readArrayNdOfUInt8Values (const std::string &datasetName, uint8_t *values) final
bool	exist (const std::string &absolutePathInHdfFile) const final
bool	isCompressed (const std::string &datasetName) final
std::vector< uint32_t >	getElementCountPerChunkDimension (const std::string &datasetName) final
Public Member Functions inherited from eml2::AbstractHdfProxy
virtual	~AbstractHdfProxy ()=default
void	setRootPath (const std::string &rootPath)
void	setRelativePath (const std::string &relPath)
void	setOpeningMode (common::DataObjectRepository::openingMode openingMode_)
const std::string &	getRelativePath () const
uint64_t	getDimensionCount (const std::string &datasetName)
uint64_t	getElementCount (const std::string &datasetName)
void	writeArrayNdOfFloatValues (const std::string &groupName, const std::string &name, const float values, const uint64_t numValuesInEachDimension, unsigned int numDimensions)
void	writeArrayNdOfDoubleValues (const std::string &groupName, const std::string &name, const double values, const uint64_t numValuesInEachDimension, unsigned int numDimensions)
void	writeArrayNdOfInt8Values (const std::string &groupName, const std::string &name, const int8_t values, const uint64_t numValuesInEachDimension, unsigned int numDimensions)
void	writeArrayNdOfIntValues (const std::string &groupName, const std::string &name, const int values, const uint64_t numValuesInEachDimension, unsigned int numDimensions)
void	writeArrayNdOfInt64Values (const std::string &groupName, const std::string &name, const int64_t values, const uint64_t numValuesInEachDimension, unsigned int numDimensions)
void	writeArrayNdOfUInt64Values (const std::string &groupName, const std::string &name, const uint64_t values, const uint64_t numValuesInEachDimension, unsigned int numDimensions)
void	setMaxChunkSize (unsigned int newMaxChunkSize)
void	initGsoapProxy (common::DataObjectRepository *repo, const std::string &guid, const std::string &title, unsigned int emlVersion)
Public Member Functions inherited from eml2::EpcExternalPartReference
virtual	~EpcExternalPartReference ()=default
virtual std::string	getXmlTag () const final
Public Member Functions inherited from common::AbstractObject
bool	isPartial () const
virtual bool	isTopLevelElement () const
std::string	getUuid () const
std::string	getTitle () const
std::string	getEditor () const
time_t	getCreation () const
tm	getCreationAsTimeStructure () const
std::string	getOriginator () const
std::string	getDescription () const
time_t	getLastUpdate () const
tm	getLastUpdateAsTimeStructure () const
std::string	getFormat () const
std::string	getDescriptiveKeywords () const
std::string	getVersion () const
void	setTitle (const std::string &title)
void	setEditor (const std::string &editor)
void	setCreation (time_t creation)
void	setCreation (const tm &creation)
void	setOriginator (const std::string &originator)
void	setDescription (const std::string &description)
void	setLastUpdate (time_t lastUpdate)
void	setLastUpdate (const tm &lastUpdate)
void	setDescriptiveKeywords (const std::string &descriptiveKeywords)
void	setVersion (const std::string &version)
void	setMetadata (const std::string &title, const std::string &editor, time_t creation, const std::string &originator, const std::string &description, time_t lastUpdate, const std::string &descriptiveKeywords)
void	serializeIntoStream (std::ostream *stream)
gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *	getEml20GsoapProxy () const
void	setGsoapProxy (gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *gsoapProxy)
gsoap_eml2_3::eml23__AbstractObject *	getEml23GsoapProxy () const
void	setGsoapProxy (gsoap_eml2_3::eml23__AbstractObject *gsoapProxy)
soap *	getGsoapContext () const
int	getGsoapType () const
gsoap_resqml2_0_1::eml20__DataObjectReference *	newResqmlReference () const
gsoap_eml2_3::eml23__DataObjectReference *	newEml23Reference () const
gsoap_resqml2_0_1::resqml20__ContactElementReference *	newContactElementReference2_0_1 () const
gsoap_eml2_3::resqml22__ContactElement *	newContactElementReference2_2 () const
common::DataObjectRepository *	getRepository () const
virtual std::string	getXmlNamespace () const =0
virtual std::string	getXmlNamespaceVersion () const
virtual std::string	getContentType () const
virtual std::string	getQualifiedType () const
virtual std::string	getPartNameInEpcDocument () const
std::string	serializeIntoString ()
void	addAlias (const std::string &authority, const std::string &title)
uint64_t	getAliasCount () const
std::string	getAliasAuthorityAtIndex (uint64_t index) const
std::string	getAliasTitleAtIndex (uint64_t index) const
std::vector< eml2::Activity * >	getActivitySet () const
uint64_t	getActivityCount () const
eml2::Activity *	getActivity (uint64_t index) const
void	pushBackExtraMetadata (const std::string &key, const std::string &value)
std::unordered_map< std::string, std::string >	getExtraMetadataSet () const
std::vector< std::string >	getExtraMetadata (const std::string &key) const
uint64_t	getExtraMetadataCount () const
std::string	getExtraMetadataKeyAtIndex (uint64_t index) const
std::string	getExtraMetadataStringValueAtIndex (uint64_t index) const
std::string	buildEtp12Uri () const
void	setUriSource (const std::string &uriSource)
const std::string &	getUriSource () const
std::string	getEpcSourceFolder () const
void	changeToPartialObject ()
template<>
int8_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, int8_t arrayOutput) const
template<>
uint8_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, uint8_t arrayOutput) const
template<>
int16_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, int16_t arrayOutput) const
template<>
uint16_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, uint16_t arrayOutput) const
template<>
int32_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, int32_t arrayOutput) const
template<>
uint32_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, uint32_t arrayOutput) const
template<>
int64_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, int64_t arrayOutput) const
template<>
uint64_t	readArrayNdOfIntegerValues (gsoap_resqml2_0_1::resqml20__AbstractValueArray const arrayInput, uint64_t arrayOutput) const
template<>
int8_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, int8_t arrayOutput) const
template<>
uint8_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, uint8_t arrayOutput) const
template<>
int16_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, int16_t arrayOutput) const
template<>
uint16_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, uint16_t arrayOutput) const
template<>
int32_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, int32_t arrayOutput) const
template<>
uint32_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, uint32_t arrayOutput) const
template<>
int64_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, int64_t arrayOutput) const
template<>
uint64_t	readArrayNdOfIntegerValues (gsoap_eml2_3::eml23__AbstractValueArray const arrayInput, uint64_t arrayOutput) const

Additional Inherited Members
Public Types inherited from common::AbstractObject
enum class	numericalDatatypeEnum { UNKNOWN = 0 , DOUBLE = 1 , FLOAT = 2 , INT64 = 3 , UINT64 = 4 , INT32 = 5 , UINT32 = 6 , INT16 = 7 , UINT16 = 8 , INT8 = 9 , UINT8 = 10 }
Static Public Member Functions inherited from common::AbstractObject
static void	setFormat (const std::string &vendor, const std::string &applicationName, const std::string &applicationVersionNumber)
Static Public Attributes inherited from eml2::AbstractHdfProxy
static constexpr char const *	CUMULATIVE_LENGTH_DS_NAME = "cumulativeLength"
static constexpr char const *	ELEMENTS_DS_NAME = "elements"
static constexpr char const *	MIME_TYPE = "application/x-hdf5"
Static Public Attributes inherited from eml2::EpcExternalPartReference
static constexpr char const *	XML_TAG = "EpcExternalPartReference"

Detailed Description

A proxy for reading and writing values into an HDF5 file.

Constructor & Destructor Documentation

◆ HdfProxy() [1/2]

eml2::HdfProxy::HdfProxy ( gsoap_resqml2_0_1::eml20__DataObjectReference * partialObject )

inline

Constructor. Only to be used in partial transfer context

Parameters

[in] partialObject If non-null, the partial object.

◆ HdfProxy() [2/2]

eml2::HdfProxy::HdfProxy ( const common::DataObjectReference & dor )

inline

Constructor.

Parameters

dor The dor.

◆ ~HdfProxy()

virtual eml2::HdfProxy::~HdfProxy ( )

inlinevirtual

Destructor. Closes the hdf file.

Reimplemented in eml2_0::HdfProxy, and eml2_3::HdfProxy.

Member Function Documentation

◆ close()

void eml2::HdfProxy::close ( )

finalvirtual

Closes the HDF5 file

Implements eml2::AbstractHdfProxy.

◆ createArrayNd()

void eml2::HdfProxy::createArrayNd	(	const std::string &	groupName,
		const std::string &	name,
		common::AbstractObject::numericalDatatypeEnum	datatype,
		const uint64_t *	numValuesInEachDimension,
		unsigned int	numDimensions )

finalvirtual

Creates an nd array of a specific datatype into the HDF5 file by means of a single dataset. Values are not yet written to this array

Parameters

groupName	The name of the group where to create the nd array of specific datatype values. This name must not contain '/' character and must be directly contained in RESQML group.
name	The name of the nd array HDF5 dataset. It must not exist.
datatype	The specific datatype of the nd array values.
numValuesInEachDimension	Number of values in each dimension of the nd array. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions (n) of the nd array to create.

Implements eml2::AbstractHdfProxy.

◆ exist()

bool eml2::HdfProxy::exist ( const std::string & absolutePathInHdfFile ) const

finalvirtual

Checks whether an absolute path exists in the HDF5 file

Parameters

absolutePathInHdfFile An absolute path in the HDF5 file.

Returns: True if the absolute path exists, else false.

Implements eml2::AbstractHdfProxy.

◆ getElementCountPerChunkDimension()

std::vector< uint32_t > eml2::HdfProxy::getElementCountPerChunkDimension ( const std::string & datasetName )

finalvirtual

Get the number of elements in each chunk dimension of an HDF5 dataset. If the dataset is not compressed, then it returns an empty vector. uint32_t is returned instead of uint64_t cause of some SWIG usage. I cannot SWIG port std::vector<uint64_t>

Parameters

datasetName The absolute name of the dataset which we want to get the number of elements from.

Implements eml2::AbstractHdfProxy.

◆ getElementCountPerDimension()

std::vector< uint32_t > eml2::HdfProxy::getElementCountPerDimension ( const std::string & datasetName )

finalvirtual

Get the number of elements in each dimension in an HDF dataset of the proxy. uint32_t is returned instead of uint64_t cause of some SWIG usage. I cannot SWIG port std::vector<uint64_t>

Parameters

datasetName The absolute name of the dataset we want to get the number of elements.

Implements eml2::AbstractHdfProxy.

◆ getHdfDatatypeClassInDataset()

int eml2::HdfProxy::getHdfDatatypeClassInDataset ( const std::string & datasetName )

finalvirtual

Gets the datatype class (H5T_INTEGER, H5T_FLOAT, H5T_STRING, etc.) of a dataset

Parameters

datasetName Name of the dataset.

Returns: The HDF5 datatype class identifier if successful, otherwise H5T_NO_CLASS (-1).

Implements eml2::AbstractHdfProxy.

◆ getNumericalDatatype()

common::AbstractObject::numericalDatatypeEnum eml2::HdfProxy::getNumericalDatatype ( const std::string & datasetName )

finalvirtual

Gets the native datatype of a dataset

Parameters

datasetName Name of the dataset.

Returns: The native datatype identifier of the dataset if successful, otherwise returns unknown;

Implements eml2::AbstractHdfProxy.

◆ isCompressed()

bool eml2::HdfProxy::isCompressed ( const std::string & datasetName )

finalvirtual

Checks whether a dataset is compressed or not

Exceptions

invalid_argument Thrown when an invalid argument error condition occurs.

Parameters

datasetName Name of the dataset.

Returns: True if compressed, false if not.

Implements eml2::AbstractHdfProxy.

◆ isOpened()

bool eml2::HdfProxy::isOpened ( ) const

inlinefinalvirtual

Checks if the HDF5 file is open or not

Returns: True if opened, false if not.

Implements eml2::AbstractHdfProxy.

◆ open()

void eml2::HdfProxy::open ( )

overridevirtual

Opens the HDF5 file for reading and writing. The read and write rights are determined by the EPC document configuration

Implements eml2::AbstractHdfProxy.

Reimplemented in eml2_0::HdfProxyMPI, and eml2_0::HdfProxyROS3.

◆ readArrayNdOfDoubleValues() [1/4]

void eml2::HdfProxy::readArrayNdOfDoubleValues	(	const std::string &	datasetName,
		double *	values )

finalvirtual

Reads an nd array of double values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of double values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfDoubleValues() [2/4]

void eml2::HdfProxy::readArrayNdOfDoubleValues	(	const std::string &	datasetName,
		double *	values,
		uint64_t const *	blockCountPerDimension,
		uint64_t const *	offsetInEachDimension,
		uint64_t const *	strideInEachDimension,
		uint64_t const *	blockSizeInEachDimension,
		unsigned int	numDimensions )

finalvirtual

Finds the nd array of double values associated with datasetName and reads from it

Exceptions

invalid_argument Thrown when an invalid argument error condition occurs.

Parameters

	datasetName	The name of the nd array dataset.
[out]	values	1d array of double values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.
	blockCountPerDimension	Number of blocks to select from the dataspace, in each dimension. They are ordered from fastest index to slowest index.
	offsetInEachDimension	Offset values in each dimension of the nd array to read. They are ordered from fastest index to slowest index.
	strideInEachDimension	Number of elements to move from one block to another in each dimension. They are ordered from fastest index to slowest index.
	blockSizeInEachDimension	Size of selected blocks in each dimension. They are ordered from fastest index to slowest index.
	numDimensions	The number of the dimensions (n) of the nd array to read.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfDoubleValues() [3/4]

void eml2::HdfProxy::readArrayNdOfDoubleValues	(	const std::string &	datasetName,
		double *	values,
		uint64_t const *	numValuesInEachDimension,
		uint64_t const *	offsetInEachDimension,
		unsigned int	numDimensions )

finalvirtual

Finds the nd array of double values associated with datasetName and reads from it

Exceptions

std::invalid_argument Thrown when an invalid argument error condition occurs.

Parameters

	datasetName	The name of the nd array dataset.
[out]	values	1d array of double values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.
	numValuesInEachDimension	Number of values in each dimension of the nd array to read. They are ordered from fastest index to slowest index.
	offsetInEachDimension	Offset values in each dimension of the nd array to read. They are ordered from fastest index to slowest index.
	numDimensions	The number of the dimensions (n) of the nd array to read.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfDoubleValues() [4/4]

void eml2::HdfProxy::readArrayNdOfDoubleValues	(	hdf5_hid_t	dataset,
		hdf5_hid_t	filespace,
		void *	values,
		uint64_t	slabSize )

finalvirtual

Considering a given nd array dataset, reads the double values corresponding to an existing selected region.

Exceptions

invalid_argument Thrown when an invalid argument error condition occurs.

Parameters

	dataset	ID of the dataset to read from.
	filespace	ID of the selected region.
[out]	values	1d array of double values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.
	slabSize	Number of values to read.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfFloatValues() [1/2]

void eml2::HdfProxy::readArrayNdOfFloatValues	(	const std::string &	datasetName,
		float *	values )

finalvirtual

Reads an nd array of float values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of float values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfFloatValues() [2/2]

void eml2::HdfProxy::readArrayNdOfFloatValues	(	const std::string &	datasetName,
		float *	values,
		uint64_t const *	numValuesInEachDimension,
		uint64_t const *	offsetInEachDimension,
		unsigned int	numDimensions )

finalvirtual

Finds the nd array of float values associated with datasetName and reads from it

Exceptions

invalid_argument Thrown when an invalid argument error condition occurs.

Parameters

	datasetName	The name of the nd array dataset.
[out]	values	1d array of float values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.
	numValuesInEachDimension	Number of values in each dimension of the nd array to read. They are ordered from fastest index to slowest index.
	offsetInEachDimension	Offset values in each dimension of the nd array to read. They are ordered from fastest index to slowest index.
	numDimensions	The number of the dimensions (n) of the nd array to read.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfInt64Values() [1/2]

void eml2::HdfProxy::readArrayNdOfInt64Values	(	const std::string &	datasetName,
		int64_t *	values )

finalvirtual

Reads an nd array of long values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of long values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfInt64Values() [2/2]

void eml2::HdfProxy::readArrayNdOfInt64Values	(	const std::string &	datasetName,
		int64_t *	values,
		uint64_t const *	numValuesInEachDimension,
		uint64_t const *	offsetInEachDimension,
		unsigned int	numDimensions )

finalvirtual

Finds the nd array of long values associated with datasetName and reads from it

Exceptions

invalid_argument Thrown when an invalid argument error condition occurs.

Parameters

	datasetName	The name of the nd array dataset.
[out]	values	1d array of long values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.
	numValuesInEachDimension	Number of values in each dimension of the nd array to read. They are ordered from fastest index to slowest index.
	offsetInEachDimension	Offset values in each dimension of the nd array to read. They are ordered from fastest index to slowest index.
	numDimensions	The number of the dimensions (n) of the nd array to read.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfInt8Values()

void eml2::HdfProxy::readArrayNdOfInt8Values	(	const std::string &	datasetName,
		int8_t *	values )

finalvirtual

Reads an nd array of int 8 bits values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of int 8 bits values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfIntValues() [1/2]

void eml2::HdfProxy::readArrayNdOfIntValues	(	const std::string &	datasetName,
		int *	values )

finalvirtual

Reads an nd array of int values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of int values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfIntValues() [2/2]

void eml2::HdfProxy::readArrayNdOfIntValues	(	const std::string &	datasetName,
		int *	values,
		uint64_t const *	numValuesInEachDimension,
		uint64_t const *	offsetInEachDimension,
		unsigned int	numDimensions )

finalvirtual

Finds the nd array of int values associated with datasetName and reads from it

Exceptions

std::invalid_argument Thrown when an invalid argument error condition occurs.

Parameters

	datasetName	The name of the nd array dataset.
[out]	values	1d array of int values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.
	numValuesInEachDimension	Number of values in each dimension of the nd array to read. They are ordered from fastest index to slowest index.
	offsetInEachDimension	Offset values in each dimension of the nd array to read. They are ordered from fastest index to slowest index.
	numDimensions	The number of the dimensions (n) of the nd array to read.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfShortValues()

void eml2::HdfProxy::readArrayNdOfShortValues	(	const std::string &	datasetName,
		short *	values )

finalvirtual

Reads an nd array of short values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of short values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfUInt64Values()

void eml2::HdfProxy::readArrayNdOfUInt64Values	(	const std::string &	datasetName,
		uint64_t *	values )

finalvirtual

Reads an nd array of unsigned long values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of unsigned long values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfUInt8Values()

void eml2::HdfProxy::readArrayNdOfUInt8Values	(	const std::string &	datasetName,
		uint8_t *	values )

finalvirtual

Reads an nd array of unsigned int 8 bits values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of unsigned int 8 bits values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfUIntValues()

void eml2::HdfProxy::readArrayNdOfUIntValues	(	const std::string &	datasetName,
		unsigned int *	values )

finalvirtual

Reads an nd array of unsigned int values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of unsigned int values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readArrayNdOfUShortValues()

void eml2::HdfProxy::readArrayNdOfUShortValues	(	const std::string &	datasetName,
		unsigned short *	values )

finalvirtual

Reads an nd array of unsigned short values stored in a specific dataset

Exceptions

std::invalid_argument If the nd array dataset cannot be opened or read.

Parameters

	datasetName	The absolute name of the nd array dataset.
[out]	values	1d array of unsigned short values ordered firstly by fastest direction. The values must be pre-allocated and won't be freed by this method.

Implements eml2::AbstractHdfProxy.

◆ readDoubleAttribute()

double eml2::HdfProxy::readDoubleAttribute	(	const std::string &	obj_name,
		const std::string &	attr_name ) const

finalvirtual

Reads a double which is stored as an HDF5 attribute in a file, group or dataset

Exceptions

std::invalid_argument If the HDF5 file is not opened or if the attribute cannot be read.

Parameters

obj_name	use "." if the attribute to read is on the file otherwise the full path of the group or dataset.
attr_name	Name of the attribute.

Returns: The attribute value.

Implements eml2::AbstractHdfProxy.

◆ readInt64Attribute()

int64_t eml2::HdfProxy::readInt64Attribute	(	const std::string &	obj_name,
		const std::string &	attr_name ) const

finalvirtual

Reads a long which is stored as an HDF5 attribute in a file, group or dataset

Exceptions

std::invalid_argument If the HDF5 file is not opened or if the attribute cannot be read.

Parameters

obj_name	use '.' if the attribute to read is on the file otherwise the full path of the group or dataset.
attr_name	Name of the attribute.

Returns: The attribute value.

Implements eml2::AbstractHdfProxy.

◆ readStringArrayAttribute()

std::vector< std::string > eml2::HdfProxy::readStringArrayAttribute	(	const std::string &	obj_name,
		const std::string &	attr_name ) const

finalvirtual

Reads string values which are stored as an HDF5 attribute in a file, group or dataset

Exceptions

std::invalid_argument If the HDF5 file is not opened or if the attribute cannot be read.

Parameters

obj_name	Use "." if the attribute to read is on the HDF5 file otherwise the full path of the group or dataset.
attr_name	Name of the attribute.

Returns: The vector of attribute values.

Implements eml2::AbstractHdfProxy.

◆ readStringAttribute()

std::string eml2::HdfProxy::readStringAttribute	(	const std::string &	obj_name,
		const std::string &	attr_name ) const

finalvirtual

Reads a string which is stored as an HDF5 attribute in a file, group or dataset

Exceptions

std::invalid_argument If the HDF5 file is not opened or if the attribute cannot be read.

Parameters

obj_name	Use "." if the attribute to read is on the HDF5 file otherwise the full path of the group or dataset.
attr_name	Name of the attribute.

Returns: The attribute value.

Implements eml2::AbstractHdfProxy.

◆ selectArrayNdOfValues()

void eml2::HdfProxy::selectArrayNdOfValues	(	const std::string &	datasetName,
		uint64_t const *	blockCountPerDimension,
		uint64_t const *	offsetInEachDimension,
		uint64_t const *	strideInEachDimension,
		uint64_t const *	blockSizeInEachDimension,
		unsigned int	numDimensions,
		bool	newSelection,
		hdf5_hid_t &	dataset,
		hdf5_hid_t &	filespace )

finalvirtual

Considering a given nd array dataset, this method selects an hyperslab region to add to an existing selected region or to add to a new selected region. The dataset is not closed within this method.

Exceptions

invalid_argument Thrown when an invalid argument error condition occurs.

Parameters

	datasetName	The name of the nd array dataset.
	blockCountPerDimension	Number of blocks to select from the dataspace, in each dimension. They are ordered from fastest index to slowest index.
	offsetInEachDimension	Offset values in each dimension of the array to read. They are ordered from fastest index to slowest index.
	strideInEachDimension	Number of elements to move from one block to another in each dimension. They are ordered from fastest index to slowest index.
	blockSizeInEachDimension	Size of selected blocks in each dimension. They are ordered from fastest index to slowest index.
	numDimensions	The number of the dimensions (n) of the nd array to read.
	newSelection	true if creating a new selected region else false.
[in,out]	dataset	Input dataset ID if adding a new hyperslab region to an existing selected region, output dataset ID if creating a new selected region.
[in,out]	filespace	Input selected region ID if adding a new hyperslab region to an existing selected region, output selected region ID if creating a new selected region.

Implements eml2::AbstractHdfProxy.

◆ setCompressionLevel()

void eml2::HdfProxy::setCompressionLevel ( unsigned int newCompressionLevel )

inlinefinalvirtual

Sets the new compression level which will be used for all data to be written

Parameters

newCompressionLevel The new compression level in range [0..9]. Lower compression levels are faster but result in less compression.

Implements eml2::AbstractHdfProxy.

◆ writeArrayNd()

void eml2::HdfProxy::writeArrayNd	(	const std::string &	groupName,
		const std::string &	name,
		common::AbstractObject::numericalDatatypeEnum	datatype,
		const void *	values,
		const uint64_t *	numValuesInEachDimension,
		unsigned int	numDimensions )

finalvirtual

Writes an nd array of a specific datatype into the HDF5 file by means of a single dataset

Parameters

groupName	The name of the group where to create the nd array of specific datatype values. This name must not contain '/' character and must be directly contained in RESQML group.
name	The name of the nd array HDF5 dataset. It must not already exist.
datatype	The specific datatype of the values to write.
values	1d array of specific datatype values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the nd array to write. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions (n) of the nd array to write.

Implements eml2::AbstractHdfProxy.

◆ writeArrayNdSlab()

void eml2::HdfProxy::writeArrayNdSlab	(	const std::string &	groupName,
		const std::string &	name,
		common::AbstractObject::numericalDatatypeEnum	datatype,
		const void *	values,
		const uint64_t *	numValuesInEachDimension,
		const uint64_t *	offsetValuesInEachDimension,
		unsigned int	numDimensions )

finalvirtual

Finds the nd array associated with groupName and name and writes into it

Parameters

groupName	The name of the group associated with the nd array.
name	The name of the nd array dataset.
datatype	The datatype of the nd array values.
values	1d array of datatype values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the nd array to write. They are ordered from fastest index to slowest index.
offsetValuesInEachDimension	Offset values in each dimension of the nd array to write. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions (n) of the nd array to write.

Implements eml2::AbstractHdfProxy.

◆ writeDatasetAttribute()

void eml2::HdfProxy::writeDatasetAttribute	(	const std::string &	datasetName,
		const std::string &	attributeName,
		const std::vector< std::string > &	values )

finalvirtual

Writes a single attribute into a dataset which contain an array of strings values

Parameters

datasetName	Name of the dataset.
attributeName	Name of the attribute.
values	Vector of string values.

Implements eml2::AbstractHdfProxy.

◆ writeDatasetAttributes() [1/3]

void eml2::HdfProxy::writeDatasetAttributes	(	const std::string &	datasetName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< double > &	values )

finalvirtual

Writes some double attributes into a dataset

Exceptions

std::invalid_argument Attributes names and double values vector do not have the same size.

Parameters

datasetName	Name of the dataset.
attributeNames	Vector of attributes names.
values	Vector of double values.

Implements eml2::AbstractHdfProxy.

◆ writeDatasetAttributes() [2/3]

void eml2::HdfProxy::writeDatasetAttributes	(	const std::string &	datasetName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< int > &	values )

finalvirtual

Writes some int attributes into a dataset

Exceptions

std::invalid_argument Attributes names and int values vector do not have the same size.

Parameters

datasetName	Name of the dataset.
attributeNames	Vector of attributes names.
values	Vector of int values.

Implements eml2::AbstractHdfProxy.

◆ writeDatasetAttributes() [3/3]

void eml2::HdfProxy::writeDatasetAttributes	(	const std::string &	datasetName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< std::string > &	values )

finalvirtual

Writes some string attributes into a dataset

Exceptions

std::invalid_argument Attributes names and string values vector do not have the same size.

Parameters

datasetName	Name of the dataset.
attributeNames	Vector of attributes names.
values	Vector of string values.

Implements eml2::AbstractHdfProxy.

◆ writeGroupAttribute()

void eml2::HdfProxy::writeGroupAttribute	(	const std::string &	groupName,
		const std::string &	attributeName,
		const std::vector< std::string > &	values )

finalvirtual

Writes a single attribute into a group which contains an array of string values

Parameters

groupName	Name of the group.
attributeName	Name of the attribute.
values	Vector of string values.

Implements eml2::AbstractHdfProxy.

◆ writeGroupAttributes() [1/3]

void eml2::HdfProxy::writeGroupAttributes	(	const std::string &	groupName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< double > &	values )

finalvirtual

Writes some double attributes into a group

Exceptions

std::invalid_argument Attributes names and double values vector do not have the same size.

Parameters

groupName	Name of the group.
attributeNames	Vector of attributes names.
values	Vector of double values.

Implements eml2::AbstractHdfProxy.

◆ writeGroupAttributes() [2/3]

void eml2::HdfProxy::writeGroupAttributes	(	const std::string &	groupName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< int > &	values )

finalvirtual

Writes some int attributes into a group

Exceptions

std::invalid_argument Attributes names and int values vector do not have the same size.

Parameters

groupName	Name of the group.
attributeNames	Vector of attributes names.
values	Vector of int values.

Implements eml2::AbstractHdfProxy.

◆ writeGroupAttributes() [3/3]

void eml2::HdfProxy::writeGroupAttributes	(	const std::string &	groupName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< std::string > &	values )

finalvirtual

Writes some string attributes into a group

Exceptions

std::invalid_argument Attributes names and string values vector do not have the same size.

Parameters

groupName	Name of the group.
attributeNames	Vector of attributes names.
values	Vector of string values.

Implements eml2::AbstractHdfProxy.

◆ writeItemizedListOfList()

void eml2::HdfProxy::writeItemizedListOfList	(	const std::string &	groupName,
		const std::string &	name,
		common::AbstractObject::numericalDatatypeEnum	cumulativeLengthDatatype,
		const void *	cumulativeLength,
		uint64_t	cumulativeLengthSize,
		common::AbstractObject::numericalDatatypeEnum	elementsDatatype,
		const void *	elements,
		uint64_t	elementsSize )

finalvirtual

Writes an itemized list of lists into the HDF5 file by means of a single group containing two datasets: one for the elements and one for the cumulative lengths of the lists of elements.

Parameters

groupName	The name of the group where to create the itemized list of lists. This name must not contain '/' character and must be directly contained in the RESQML group.
name	The name of the itemized list of lists HDF5 group.
cumulativeLengthDatatype	The datatype of the cumulative lengths dataset to write.
cumulativeLength	1d array of positive integers containing for each list the sum of all the previous lists lengths including the current one.
cumulativeLengthSize	Size of the cumulative lengths array.
elementsDatatype	The datatype of the elements to write.
elements	1d array of elements containing the aggregation of individual lists contents.
elementsSize	Size of the elements array. It must be equal to cumulativeLength[cumulativeLengthSize-1].

Implements eml2::AbstractHdfProxy.

The documentation for this class was generated from the following file:

C:/Users/phili/dev/fesapi/fesapi-2.14.0.0/src/eml2/HdfProxy.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ HdfProxy() [1/2]

◆ HdfProxy() [2/2]

◆ ~HdfProxy()

Member Function Documentation

◆ close()

◆ createArrayNd()

◆ exist()

◆ getElementCountPerChunkDimension()

◆ getElementCountPerDimension()

◆ getHdfDatatypeClassInDataset()

◆ getNumericalDatatype()

◆ isCompressed()

◆ isOpened()

◆ open()

◆ readArrayNdOfDoubleValues() [1/4]

◆ readArrayNdOfDoubleValues() [2/4]

◆ readArrayNdOfDoubleValues() [3/4]

◆ readArrayNdOfDoubleValues() [4/4]

◆ readArrayNdOfFloatValues() [1/2]

◆ readArrayNdOfFloatValues() [2/2]

◆ readArrayNdOfInt64Values() [1/2]

◆ readArrayNdOfInt64Values() [2/2]

◆ readArrayNdOfInt8Values()

◆ readArrayNdOfIntValues() [1/2]

◆ readArrayNdOfIntValues() [2/2]

◆ readArrayNdOfShortValues()

◆ readArrayNdOfUInt64Values()

◆ readArrayNdOfUInt8Values()

◆ readArrayNdOfUIntValues()

◆ readArrayNdOfUShortValues()

◆ readDoubleAttribute()

◆ readInt64Attribute()

◆ readStringArrayAttribute()

◆ readStringAttribute()

◆ selectArrayNdOfValues()

◆ setCompressionLevel()

◆ writeArrayNd()

◆ writeArrayNdSlab()

◆ writeDatasetAttribute()

◆ writeDatasetAttributes() [1/3]

◆ writeDatasetAttributes() [2/3]

◆ writeDatasetAttributes() [3/3]

◆ writeGroupAttribute()

◆ writeGroupAttributes() [1/3]

◆ writeGroupAttributes() [2/3]

◆ writeGroupAttributes() [3/3]

◆ writeItemizedListOfList()
