Fesapi 2.13.0.0
This project provides C++ classes which allow an easy access in import and export to the Energistics standards.
Loading...
Searching...
No Matches
Public Member Functions | Static Public Attributes | List of all members
resqml2::StratigraphicOccurrenceInterpretation Class Referenceabstract

This class is a container for stratigraphic organizations described along a wellbore. More...

#include <StratigraphicOccurrenceInterpretation.h>

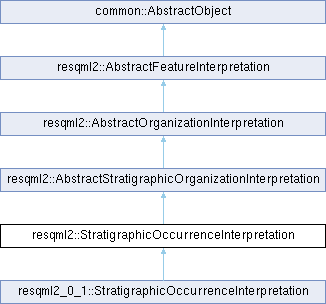

Inheritance diagram for resqml2::StratigraphicOccurrenceInterpretation:
resqml2::AbstractStratigraphicOrganizationInterpretation resqml2::AbstractOrganizationInterpretation resqml2::AbstractFeatureInterpretation common::AbstractObject resqml2_0_1::StratigraphicOccurrenceInterpretation

Public Member Functions

virtual ~StratigraphicOccurrenceInterpretation ()=default
virtual void setStratigraphicColumnRankInterpretation (StratigraphicColumnRankInterpretation *stratiColumnRankInterp)=0
StratigraphicColumnRankInterpretation * getStratigraphicColumnRankInterpretation () const
virtual common::DataObjectReference getStratigraphicColumnRankInterpretationDor () const =0
virtual std::string getXmlTag () const final
Public Member Functions inherited from resqml2::AbstractStratigraphicOrganizationInterpretation
virtual ~AbstractStratigraphicOrganizationInterpretation ()=default
bool isStratigraphic () const final
std::vector< AbstractGridRepresentation * > getGridRepresentations () const
unsigned int getGridRepresentationCount () const
AbstractGridRepresentation * getGridRepresentation (unsigned int index) const
bool isAssociatedToGridRepresentation (AbstractGridRepresentation *gridRep) const
Public Member Functions inherited from resqml2::AbstractOrganizationInterpretation
virtual ~AbstractOrganizationInterpretation ()=default
virtual bool isStructural () const
virtual bool isRockFluid () const
void pushBackBinaryContact (AbstractFeatureInterpretation *subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation *directObject)
void pushBackBinaryContact (AbstractFeatureInterpretation *subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation *directObject, AbstractFeatureInterpretation *partOf)
void pushBackBinaryContact (AbstractFeatureInterpretation *subject, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation *directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)
void pushBackBinaryContact (AbstractFeatureInterpretation *subject, gsoap_resqml2_0_1::resqml20__ContactSide subjectQualifier, gsoap_eml2_3::resqml22__ContactVerb verb, AbstractFeatureInterpretation *directObject, gsoap_resqml2_0_1::resqml20__ContactSide directObjectQualifier)
Public Member Functions inherited from resqml2::AbstractFeatureInterpretation
virtual ~AbstractFeatureInterpretation ()=default
common::DataObjectReference getInterpretedFeatureDor () const
void setInterpretedFeature (AbstractFeature *feature)
AbstractFeature * getInterpretedFeature () const
gsoap_resqml2_0_1::resqml20__Domain initDomain (gsoap_resqml2_0_1::resqml20__Domain defaultDomain) const
gsoap_resqml2_0_1::resqml20__Domain getDomain () const
std::vector< AbstractRepresentation * > getRepresentationSet () const
uint64_t getRepresentationCount () const noexcept
AbstractRepresentation * getRepresentation (uint64_t index) const
std::vector< GridConnectionSetRepresentation * > getGridConnectionSetRepresentationSet () const
Public Member Functions inherited from common::AbstractObject
bool isPartial () const
virtual bool isTopLevelElement () const
std::string getUuid () const
std::string getTitle () const
std::string getEditor () const
time_t getCreation () const
tm getCreationAsTimeStructure () const
std::string getOriginator () const
std::string getDescription () const
time_t getLastUpdate () const
tm getLastUpdateAsTimeStructure () const
std::string getFormat () const
std::string getDescriptiveKeywords () const
std::string getVersion () const
void setTitle (const std::string &title)
void setEditor (const std::string &editor)
void setCreation (time_t creation)
void setCreation (const tm &creation)
void setOriginator (const std::string &originator)
void setDescription (const std::string &description)
void setLastUpdate (time_t lastUpdate)
void setLastUpdate (const tm &lastUpdate)
void setDescriptiveKeywords (const std::string &descriptiveKeywords)
void setVersion (const std::string &version)
void setMetadata (const std::string &title, const std::string &editor, time_t creation, const std::string &originator, const std::string &description, time_t lastUpdate, const std::string &descriptiveKeywords)
void serializeIntoStream (std::ostream *stream)
gsoap_resqml2_0_1::eml20__AbstractCitedDataObject * getEml20GsoapProxy () const
void setGsoapProxy (gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *gsoapProxy)
gsoap_eml2_3::eml23__AbstractObject * getEml23GsoapProxy () const
void setGsoapProxy (gsoap_eml2_3::eml23__AbstractObject *gsoapProxy)
soap * getGsoapContext () const
int getGsoapType () const
gsoap_resqml2_0_1::eml20__DataObjectReference * newResqmlReference () const
gsoap_eml2_3::eml23__DataObjectReference * newEml23Reference () const
gsoap_resqml2_0_1::resqml20__ContactElementReference * newContactElementReference2_0_1 () const
gsoap_eml2_3::resqml22__ContactElement * newContactElementReference2_2 () const
common::DataObjectRepository * getRepository () const
virtual std::string getXmlNamespace () const =0
virtual std::string getXmlNamespaceVersion () const
virtual std::string getContentType () const
virtual std::string getQualifiedType () const
virtual std::string getPartNameInEpcDocument () const
std::string serializeIntoString ()
void addAlias (const std::string &authority, const std::string &title)
uint64_t getAliasCount () const
std::string getAliasAuthorityAtIndex (uint64_t index) const
std::string getAliasTitleAtIndex (uint64_t index) const
std::vector< eml2::Activity * > getActivitySet () const
uint64_t getActivityCount () const
eml2::Activity * getActivity (uint64_t index) const
void pushBackExtraMetadata (const std::string &key, const std::string &value)
std::unordered_map< std::string, std::string > getExtraMetadataSet () const
std::vector< std::string > getExtraMetadata (const std::string &key) const
uint64_t getExtraMetadataCount () const
std::string getExtraMetadataKeyAtIndex (uint64_t index) const
std::string getExtraMetadataStringValueAtIndex (uint64_t index) const
std::string buildEtp12Uri () const
void setUriSource (const std::string &uriSource)
const std::string & getUriSource () const
std::string getEpcSourceFolder () const
void changeToPartialObject ()

Static Public Attributes

static const char * XML_TAG

Additional Inherited Members

Public Types inherited from common::AbstractObject
enum class  numericalDatatypeEnum {
  UNKNOWN = 0 , DOUBLE = 1 , FLOAT = 2 , INT64 = 3 ,
  UINT64 = 4 , INT32 = 5 , UINT32 = 6 , INT16 = 7 ,
  UINT16 = 8 , INT8 = 9 , UINT8 = 10
}
Static Public Member Functions inherited from common::AbstractObject
static void setFormat (const std::string &vendor, const std::string &applicationName, const std::string &applicationVersionNumber)

Detailed Description

This class is a container for stratigraphic organizations described along a wellbore.

Constructor & Destructor Documentation

◆ ~StratigraphicOccurrenceInterpretation()

virtual resqml2::StratigraphicOccurrenceInterpretation::~StratigraphicOccurrenceInterpretation ( )
virtualdefault

Destructor does nothing since the memory is managed by the gSOAP context.

Reimplemented in resqml2_0_1::StratigraphicOccurrenceInterpretation.

Member Function Documentation

◆ getStratigraphicColumnRankInterpretation()

StratigraphicColumnRankInterpretation * resqml2::StratigraphicOccurrenceInterpretation::getStratigraphicColumnRankInterpretation ( ) const

Gets the stratigraphic column rank interpretation this stratigraphic occurrence interpretation is an occurrence of.

Returns
nullptr if no stratigraphic column rank interpretation is associated to this stratigraphic occurrence interpretation, else the associated stratigraphic column rank interpretation.

◆ getStratigraphicColumnRankInterpretationDor()

virtual common::DataObjectReference resqml2::StratigraphicOccurrenceInterpretation::getStratigraphicColumnRankInterpretationDor ( ) const
pure virtual

Gets the data object reference of the stratigraphic column rank interpretation this stratigraphic occurrence interpretation is an occurrence of.

Returns
Empty data object reference if no stratigraphic column rank interpretation is associated to this stratigraphic occurrence interpretation, else the data object reference of the associated stratigraphic column rank interpretation.

Implemented in resqml2_0_1::StratigraphicOccurrenceInterpretation.

◆ getXmlTag()

virtual std::string resqml2::StratigraphicOccurrenceInterpretation::getXmlTag ( ) const
inlinefinalvirtual

Gets the standard XML tag without XML namespace for serializing this data object.

Returns
The XML tag.

Implements common::AbstractObject.

◆ setStratigraphicColumnRankInterpretation()

virtual void resqml2::StratigraphicOccurrenceInterpretation::setStratigraphicColumnRankInterpretation ( StratigraphicColumnRankInterpretation * stratiColumnRankInterp)
pure virtual

Sets the stratigraphic column rank interpretation this stratigraphic occurrence interpretation is an occurrence of.

Exceptions
std::invalid_argumentIf stratiColumnRankInterp is nullptr.
Parameters
[in]stratiColumnRankInterpThe stratigraphic column rank interpretation this stratigraphic occurrence interpretation is an occurrence of.

Implemented in resqml2_0_1::StratigraphicOccurrenceInterpretation.

Member Data Documentation

◆ XML_TAG

const char* resqml2::StratigraphicOccurrenceInterpretation::XML_TAG
static

The standard XML tag without XML namespace for serializing this data object.

The documentation for this class was generated from the following file:
