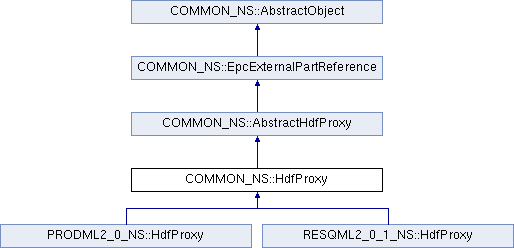

Inheritance diagram for COMMON_NS::HdfProxy:

Public Member Functions
	~HdfProxy ()

void	open ()

bool	isOpened () const

void	close ()

int	getHdfDatatypeInDataset (const std::string &groupName) const

int	getHdfDatatypeClassInDataset (const std::string &datasetName) const

void	writeItemizedListOfList (const std::string &groupName, const std::string &name, const int &cumulativeLengthDatatype, void cumulativeLength, const unsigned long long &cumulativeLengthSize, const int &elementsDatatype, void elements, const unsigned long long &elementsSize)

unsigned int	getDimensionCount (const std::string &datasetName)

signed long long	getElementCount (const std::string &datasetName)

void	setCompressionLevel (const unsigned int &newCompressionLevel)

void	writeArrayNdOfFloatValues (const std::string &groupName, const std::string &name, float floatValues, unsigned long long numValuesInEachDimension, const unsigned int &numDimensions)

void	writeArrayNdOfDoubleValues (const std::string &groupName, const std::string &name, double dblValues, unsigned long long numValuesInEachDimension, const unsigned int &numDimensions)

void	writeArrayNdOfCharValues (const std::string &groupName, const std::string &name, char intValues, unsigned long long numValuesInEachDimension, const unsigned int &numDimensions)

void	writeArrayNdOfIntValues (const std::string &groupName, const std::string &name, int intValues, unsigned long long numValuesInEachDimension, const unsigned int &numDimensions)

void	writeArrayNdOfGSoapULong64Values (const std::string &groupName, const std::string &name, ULONG64 ulong64Values, unsigned long long numValuesInEachDimension, const unsigned int &numDimensions)

void	writeArrayNd (const std::string &groupName, const std::string &name, const int &datatype, void values, unsigned long long numValuesInEachDimension, const unsigned int &numDimensions)

void	createArrayNd (const std::string &groupName, const std::string &name, const int &datatype, unsigned long long *numValuesInEachDimension, const unsigned int &numDimensions)

void	writeArrayNdSlab (const std::string &groupName, const std::string &name, const int &datatype, void values, unsigned long long numValuesInEachDimension, unsigned long long *offsetValuesInEachDimension, const unsigned int &numDimensions)

void	writeGroupAttributes (const std::string &groupName, const std::vector< std::string > &attributeNames, const std::vector< std::string > &values)

void	writeGroupAttribute (const std::string &groupName, const std::string &attributeName, const std::vector< std::string > &values)

void	writeGroupAttributes (const std::string &groupName, const std::vector< std::string > &attributeNames, const std::vector< double > &values)

void	writeGroupAttributes (const std::string &groupName, const std::vector< std::string > &attributeNames, const std::vector< int > &values)

void	writeDatasetAttributes (const std::string &datasetName, const std::vector< std::string > &attributeNames, const std::vector< std::string > &values)

void	writeDatasetAttribute (const std::string &datasetName, const std::string &attributeName, const std::vector< std::string > &values)

void	writeDatasetAttributes (const std::string &datasetName, const std::vector< std::string > &attributeNames, const std::vector< double > &values)

void	writeDatasetAttributes (const std::string &datasetName, const std::vector< std::string > &attributeNames, const std::vector< int > &values)

std::string	readStringAttribute (const std::string &obj_name, const std::string &attr_name) const

std::vector< std::string >	readStringArrayAttribute (const std::string &obj_name, const std::string &attr_name) const

double	readDoubleAttribute (const std::string &obj_name, const std::string &attr_name) const

LONG64	readLongAttribute (const std::string &obj_name, const std::string &attr_name) const

void	readArrayNdOfDoubleValues (const std::string &datasetName, double *values)

void	readArrayNdOfDoubleValues (const std::string &datasetName, double values, unsigned long long numValuesInEachDimension, unsigned long long *offsetInEachDimension, const unsigned int &numDimensions)

void	readArrayNdOfDoubleValues (const std::string &datasetName, double values, unsigned long long blockCountPerDimension, unsigned long long offsetInEachDimension, unsigned long long strideInEachDimension, unsigned long long *blockSizeInEachDimension, const unsigned int &numDimensions)

void	readArrayNdOfDoubleValues (int dataset, int filespace, void *values, unsigned long long slabSize)

void	readArrayNdOfFloatValues (const std::string &datasetName, float *values)

void	readArrayNdOfFloatValues (const std::string &datasetName, float values, unsigned long long numValuesInEachDimension, unsigned long long *offsetInEachDimension, const unsigned int &numDimensions)

void	readArrayNdOfGSoapLong64Values (const std::string &datasetName, LONG64 *values)

void	readArrayNdOfGSoapULong64Values (const std::string &datasetName, ULONG64 *values)

void	readArrayNdOfLongValues (const std::string &datasetName, long *values)

void	readArrayNdOfLongValues (const std::string &datasetName, long values, unsigned long long numValuesInEachDimension, unsigned long long *offsetInEachDimension, const unsigned int &numDimensions)

void	readArrayNdOfULongValues (const std::string &datasetName, unsigned long *values)

void	readArrayNdOfIntValues (const std::string &datasetName, int *values)

void	readArrayNdOfIntValues (const std::string &datasetName, int values, unsigned long long numValuesInEachDimension, unsigned long long *offsetInEachDimension, const unsigned int &numDimensions)

void	readArrayNdOfUIntValues (const std::string &datasetName, unsigned int *values)

void	readArrayNdOfShortValues (const std::string &datasetName, short *values)

void	readArrayNdOfUShortValues (const std::string &datasetName, unsigned short *values)

void	readArrayNdOfCharValues (const std::string &datasetName, char *values)

void	readArrayNdOfUCharValues (const std::string &datasetName, unsigned char *values)

std::vector< unsigned long long >	readArrayDimensions (const std::string &datasetName)

bool	exist (const std::string &absolutePathInHdfFile) const

Public Member Functions inherited from COMMON_NS::EpcExternalPartReference
	EpcExternalPartReference (const std::string &packageDirAbsolutePath, const std::string &externalFilePath)

	EpcExternalPartReference (gsoap_resqml2_0_1::_eml20__EpcExternalPartReference *fromGsoap, const std::string &packageDirAbsolutePath, const std::string &externalFilePath)

	EpcExternalPartReference (gsoap_eml2_1::_eml21__EpcExternalPartReference *fromGsoap, const std::string &packageDirAbsolutePath, const std::string &externalFilePath)

	~EpcExternalPartReference ()

std::string	getRelativePath () const

virtual std::string	getXmlTag () const

Public Member Functions inherited from COMMON_NS::AbstractObject
bool	isPartial () const

std::string	getUuid () const

std::string	getTitle () const

std::string	getEditor () const

time_t	getCreation () const

tm	getCreationAsTimeStructure () const

std::string	getOriginator () const

std::string	getDescription () const

time_t	getLastUpdate () const

tm	getLastUpdateAsTimeStructure () const

std::string	getFormat () const

std::string	getDescriptiveKeywords () const

std::string	getVersionString () const

void	setTitle (const std::string &title)

void	setEditor (const std::string &editor)

void	setCreation (const time_t &creation)

void	setCreation (const tm &creation)

void	setOriginator (const std::string &originator)

void	setDescription (const std::string &description)

void	setLastUpdate (const time_t &lastUpdate)

void	setLastUpdate (const tm &lastUpdate)

void	setFormat (const std::string &format)

void	setDescriptiveKeywords (const std::string &descriptiveKeywords)

void	setVersionString (const std::string &versionString)

void	setMetadata (const std::string &title, const std::string &editor, const time_t &creation, const std::string &originator, const std::string &description, const time_t &lastUpdate, const std::string &format, const std::string &descriptiveKeywords)

void	serializeIntoStream (std::ostream *stream)

gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *	getGsoapProxy () const

soap *	getGsoapContext () const

int	getGsoapType () const

gsoap_resqml2_0_1::eml20__DataObjectReference *	newResqmlReference () const

gsoap_eml2_1::eml21__DataObjectReference *	newEmlReference () const

gsoap_resqml2_0_1::resqml2__ContactElementReference *	newResqmlContactElementReference () const

COMMON_NS::EpcDocument *	getEpcDocument () const

virtual std::string	getXmlNamespace () const

virtual std::string	getResqmlVersion () const

virtual std::string	getContentType () const

virtual std::string	getPartNameInEpcDocument () const

std::string	serializeIntoString ()

void	addAlias (const std::string &authority, const std::string &title)

unsigned int	getAliasCount () const

std::string	getAliasAuthorityAtIndex (const unsigned int &index) const

std::string	getAliasTitleAtIndex (const unsigned int &index) const

const std::vector< RESQML2_NS::Activity * > &	getActivitySet () const

unsigned int	getActivityCount () const

RESQML2_NS::Activity *	getActivity (const unsigned int &index) const

void	pushBackExtraMetadata (const std::string &key, const std::string &value)

std::tr1::unordered_map< std::string, std::string >	getExtraMetadataSet () const

std::vector< std::string >	getExtraMetadata (const std::string &key) const

unsigned int	getExtraMetadataCount () const

std::string	getExtraMetadataKeyAtIndex (const unsigned int &index) const

std::string	getExtraMetadataStringValueAtIndex (const unsigned int &index) const

Protected Member Functions
	HdfProxy (gsoap_resqml2_0_1::_eml20__EpcExternalPartReference *fromGsoap, const std::string &packageDirAbsolutePath, const std::string &externalFilePath)

	HdfProxy (gsoap_eml2_1::_eml21__EpcExternalPartReference *fromGsoap, const std::string &packageDirAbsolutePath, const std::string &externalFilePath)

	HdfProxy (const std::string &packageDirAbsolutePath, const std::string &externalFilePath)

void	readArrayNdOfValues (const std::string &datasetName, void *values, const int &datatype)

void	readArrayNdOfValues (const std::string &datasetName, void values, unsigned long long numValuesInEachDimension, unsigned long long *offsetInEachDimension, const unsigned int &numDimensions, const int &datatype)

void	readArrayNdOfValues (const std::string &datasetName, void values, unsigned long long blockCountPerDimension, unsigned long long offsetInEachDimension, unsigned long long strideInEachDimension, unsigned long long *blockSizeInEachDimension, const unsigned int &numDimensions, const int &datatype)

void	selectArrayNdOfValues (const std::string &datasetName, unsigned long long blockCountPerDimension, unsigned long long offsetInEachDimension, unsigned long long strideInEachDimension, unsigned long long blockSizeInEachDimension, const unsigned int &numDimensions, bool newSelection, int &dataset, int &filespace)

void	readArrayNdOfValues (int dataset, int filespace, void *values, unsigned long long slabSize, const int &datatype)

virtual int	openOrCreateRootGroup ()

int	openOrCreateGroupInRootGroup (const std::string &groupName)

Protected Member Functions inherited from COMMON_NS::AbstractHdfProxy
	AbstractHdfProxy (const std::string &packageDirAbsolutePath, const std::string &externalFilePath)

	AbstractHdfProxy (gsoap_resqml2_0_1::_eml20__EpcExternalPartReference *fromGsoap, const std::string &packageDirAbsolutePath, const std::string &externalFilePath)

	AbstractHdfProxy (gsoap_eml2_1::_eml21__EpcExternalPartReference *fromGsoap, const std::string &packageDirAbsolutePath, const std::string &externalFilePath)

void	initGsoapProxy (soap *soapContext, const std::string &guid, const std::string &title, const EmlVersion &emlVersion)

Protected Member Functions inherited from COMMON_NS::EpcExternalPartReference
std::vector< epc::Relationship >	getAllEpcRelationships () const

void	importRelationshipSetFromEpc (COMMON_NS::EpcDocument *epcDoc)

Protected Member Functions inherited from COMMON_NS::AbstractObject
	AbstractObject ()
	Indicate whether methods update the XML (gSoap) or only the C++ classes of the API.

	AbstractObject (gsoap_resqml2_0_1::eml20__DataObjectReference *partialObject)

	AbstractObject (gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *proxy)

	AbstractObject (gsoap_eml2_1::eml21__AbstractObject *proxy)

void	initMandatoryMetadata ()

void	setMetadata (const std::string &guid, const std::string &title, const std::string &editor, const time_t &creation, const std::string &originator, const std::string &description, const time_t &lastUpdate, const std::string &format, const std::string &descriptiveKeywords)

void	cannotBePartial () const

void	changeToPartialObject ()

Protected Attributes
int	hdfFile

unsigned int	compressionLevel

Protected Attributes inherited from COMMON_NS::EpcExternalPartReference
std::vector< RESQML2_NS::AbstractRepresentation * >	representationSourceObject

std::vector< RESQML2_NS::AbstractProperty * >	propertySourceObject
	All the representations that use this external reference.

std::vector< PRODML2_0_NS::DasAcquisition * >	dasAcquisitionSourceObject
	All the properties that use this external reference.

std::string	packageDirectoryAbsolutePath
	All the DAS acquisition that use this external reference.

std::string	relativeFilePath
	The directory where the EPC document is stored.

Protected Attributes inherited from COMMON_NS::AbstractObject
gsoap_resqml2_0_1::eml20__AbstractCitedDataObject *	gsoapProxy2_0_1

gsoap_eml2_1::eml21__AbstractObject *	gsoapProxy2_1

COMMON_NS::EpcDocument *	epcDocument

std::vector< RESQML2_NS::Activity * >	activitySet

bool	updateXml

Additional Inherited Members
Static Public Attributes inherited from COMMON_NS::EpcExternalPartReference
static const char *	XML_TAG = "EpcExternalPartReference"

Protected Types inherited from COMMON_NS::AbstractObject
enum	EmlVersion { TWO_DOT_ZERO = 0, TWO_DOT_ONE = 1 }

Static Protected Member Functions inherited from COMMON_NS::AbstractObject
static void	addActivityToResqmlObject (RESQML2_NS::Activity activity, AbstractObject resqmlObject)

Constructor & Destructor Documentation

HdfProxy::HdfProxy	(	const std::string &	packageDirAbsolutePath,
		const std::string &	externalFilePath
	)

protected

Creates an instance of this class in a gsoap context. The directory where the EPC document is stored. Must end with a slash or back-slash The relative file path of the associated HDF file. It is relative to the location of the package

COMMON_NS::HdfProxy::~HdfProxy ( )

inline

Destructor. Close the hdf file.

Member Function Documentation

void HdfProxy::close ( )

virtual

Close the file

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::createArrayNd	(	const std::string &	groupName,
		const std::string &	name,
		const int &	datatype,
		unsigned long long *	numValuesInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Create an array (potentially with multi dimensions) of a specific datatype into the HDF file. Values are not yet written to this array.

Parameters

groupName	The name of the group where to create the array of double values. This name must not contain '/' character and must be directly contained in RESQML group.
name	The name of the array (potentially with multi dimensions) of a specific datatype hdf dataset. It must not exist.
datatype	The specific datatype of the values to write.
numValuesInEachDimension	Number of values in each dimension of the array to write. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to write.

Implements COMMON_NS::AbstractHdfProxy.

bool HdfProxy::exist ( const std::string & absolutePathInHdfFile ) const

virtual

Check wether an absolute path exists in the hdf file or not.

Implements COMMON_NS::AbstractHdfProxy.

unsigned int HdfProxy::getDimensionCount ( const std::string & datasetName )

virtual

Get the number of dimensions in an HDF dataset of the proxy.

Parameters

datasetName The absolute name of the dataset we want to get the number of dimensions.

Implements COMMON_NS::AbstractHdfProxy.

hssize_t HdfProxy::getElementCount ( const std::string & datasetName )

virtual

Get the number of elements in an HDF dataset of the proxy. The number of elements is get from all dimensions.

Parameters

datasetName The absolute name of the dataset we want to get the number of elements.

Implements COMMON_NS::AbstractHdfProxy.

int HdfProxy::getHdfDatatypeClassInDataset ( const std::string & datasetName ) const

virtual

Get the used datatype class in a dataset To compare with H5T_INTEGER, H5T_FLOAT , H5T_STRING , etc...

Implements COMMON_NS::AbstractHdfProxy.

int HdfProxy::getHdfDatatypeInDataset ( const std::string & datasetName ) const

virtual

Get the used (native) datatype in a dataset To compare with H5T_NATIVE_INT, H5T_NATIVE_UINT, H5T_NATIVE_FLOAT, etc...

Implements COMMON_NS::AbstractHdfProxy.

bool COMMON_NS::HdfProxy::isOpened ( ) const

inlinevirtual

Check if the Hdf file is open or not

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::open ( )

virtual

Open the file for reading and writing. Does never overwrite an existing file but append to it if it already exists.

Implements COMMON_NS::AbstractHdfProxy.

int HdfProxy::openOrCreateGroupInRootGroup ( const std::string & groupName )

protected

Check if an hdf group named as groupName exists in the root group. If it exists, it returns the latter. If not, it creates this group and then returns it. Please close the group after having called and used this group.

int HdfProxy::openOrCreateRootGroup ( )

protectedvirtual

Allow to force a root group for all newly created groups in inherited hdf proxies.

std::vector< hsize_t > HdfProxy::readArrayDimensions ( const std::string & datasetName )

virtual

Read the dimensions of an array stored in a specific dataset

Parameters

datasetName The absolute dataset name where to read the array dimensions

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfCharValues	(	const std::string &	datasetName,
		char *	values
	)

virtual

Read an array Nd of char values stored in a specific dataset.

Parameters

datasetName	The absolute dataset name where to read the values
values	The values must be pre-allocated.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfDoubleValues	(	const std::string &	datasetName,
		double *	values
	)

virtual

Read an array Nd of double values stored in a specific dataset

Parameters

datasetName	The absolute dataset name where to read the values
values	The values must be pre-allocated.

Implements COMMON_NS::AbstractHdfProxy.

void COMMON_NS::HdfProxy::readArrayNdOfDoubleValues	(	const std::string &	datasetName,
		double *	values,
		unsigned long long *	numValuesInEachDimension,
		unsigned long long *	offsetInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Find the array associated with datasetName and read from it.

Parameters

datasetName	The name of the array (potentially with multi dimensions).
values	1d array output of double values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to read. They are ordered from fastest index to slowest index.
offsetValuesInEachDimension	Offset values in each dimension of the array to read. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to read.

Implements COMMON_NS::AbstractHdfProxy.

void COMMON_NS::HdfProxy::readArrayNdOfDoubleValues	(	const std::string &	datasetName,
		double *	values,
		unsigned long long *	blockCountPerDimension,
		unsigned long long *	offsetInEachDimension,
		unsigned long long *	strideInEachDimension,
		unsigned long long *	blockSizeInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Find the array associated with datasetName and read from it.

Parameters

datasetName	The name of the array (potentially with multi dimensions).
values	1d array output of double values ordered firstly by fastest direction.
blockCountPerDimension	Number of blocks to select from the dataspace, in each dimension. They are ordered from fastest index to slowest index.
offsetInEachDimension	Offset values in each dimension of the array to read. They are ordered from fastest index to slowest index.
strideInEachDimension	Number of elements to move from one block to another in each dimension. They are ordered from fastest index to slowest index.
blockSizeInEachDimension	Size of selected blocks in each dimension. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to read.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfDoubleValues	(	int	dataset,
		int	filespace,
		void *	values,
		unsigned long long	slabSize
	)

virtual

Considering a given dataset, read the double values corresponding to an existing selected region.

Parameters

dataset	ID of the dataset to read from.
filespace	ID of the selected region.
values	1d array output of double values ordered firstly by fastest direction.
slabSize	Number of values to read.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfFloatValues	(	const std::string &	datasetName,
		float *	values
	)

virtual

Read an array Nd of float values stored in a specific dataset.

Parameters

datasetName	The absolute dataset name where to read the values
values	The values must be pre-allocated.

Implements COMMON_NS::AbstractHdfProxy.

void COMMON_NS::HdfProxy::readArrayNdOfFloatValues	(	const std::string &	datasetName,
		float *	values,
		unsigned long long *	numValuesInEachDimension,
		unsigned long long *	offsetInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Find the array associated with datasetName and read from it.

Parameters

datasetName	The name of the array (potentially with multi dimensions).
values	1d array output of float values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to read. They are ordered from fastest index to slowest index.
offsetValuesInEachDimension	Offset values in each dimension of the array to read. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to read.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfGSoapLong64Values	(	const std::string &	datasetName,
		LONG64 *	values
	)

virtual

TODO : check all possible size of LONG64 on all different platforms

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfGSoapULong64Values	(	const std::string &	datasetName,
		ULONG64 *	values
	)

virtual

TODO : check all possible size of ULONG64 on all different platforms

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfIntValues	(	const std::string &	datasetName,
		int *	values
	)

virtual

Read an array Nd of int values stored in a specific dataset.

Parameters

datasetName	The absolute dataset name where to read the values
values	The values must be pre-allocated.

Implements COMMON_NS::AbstractHdfProxy.

void COMMON_NS::HdfProxy::readArrayNdOfIntValues	(	const std::string &	datasetName,
		int *	values,
		unsigned long long *	numValuesInEachDimension,
		unsigned long long *	offsetInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Find the array associated with datasetName and read from it.

Parameters

datasetName	The name of the array (potentially with multi dimensions).
values	1d array output of int values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to read. They are ordered from fastest index to slowest index.
offsetValuesInEachDimension	Offset values in each dimension of the array to read. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to read.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfLongValues	(	const std::string &	datasetName,
		long *	values
	)

virtual

Read an array Nd of long values stored in a specific dataset.

Parameters

datasetName	The absolute dataset name where to read the values
values	The values must be pre-allocated.

Implements COMMON_NS::AbstractHdfProxy.

void COMMON_NS::HdfProxy::readArrayNdOfLongValues	(	const std::string &	datasetName,
		long *	values,
		unsigned long long *	numValuesInEachDimension,
		unsigned long long *	offsetInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Find the array associated with datasetName and read from it.

Parameters

datasetName	The name of the array (potentially with multi dimensions).
values	1d array output of long values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to read. They are ordered from fastest index to slowest index.
offsetValuesInEachDimension	Offset values in each dimension of the array to read. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to read.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfShortValues	(	const std::string &	datasetName,
		short *	values
	)

virtual

Read an array Nd of short values stored in a specific dataset Don"t forget to delete the allocated pointer when no more necessary.

Parameters

datasetName	The absolute dataset name where to read the values
values	The values must be pre-allocated.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfUCharValues	(	const std::string &	datasetName,
		unsigned char *	values
	)

virtual

Read an array Nd of unsigned char values stored in a specific dataset.

Parameters

datasetName The absolute dataset name where to read the values

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfUIntValues	(	const std::string &	datasetName,
		unsigned int *	values
	)

virtual

Read an array Nd of unsigned int values stored in a specific dataset Don"t forget to delete the allocated pointer when no more necessary.

Parameters

datasetName The absolute dataset name where to read the values

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfULongValues	(	const std::string &	datasetName,
		unsigned long *	values
	)

virtual

Read an array Nd of unsigned long values stored in a specific dataset.

Parameters

datasetName	The absolute dataset name where to read the values
values	The values must be pre-allocated.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::readArrayNdOfUShortValues	(	const std::string &	datasetName,
		unsigned short *	values
	)

virtual

Read an array Nd of unsigned short values stored in a specific dataset.

Parameters

datasetName	The absolute dataset name where to read the values
values	The values must be pre-allocated.

Implements COMMON_NS::AbstractHdfProxy.

void COMMON_NS::HdfProxy::readArrayNdOfValues	(	const std::string &	datasetName,
		void *	values,
		const int &	datatype
	)

protected

Read an array Nd of float values stored in a specific dataset.

Parameters

datasetName	The absolute dataset name where to read the values
values	The values must be pre-allocated.
datatype	The hdf datatype of the values to read. If the values are not stored in this particular datatype, then hdf library will try to do a conversion.

void COMMON_NS::HdfProxy::readArrayNdOfValues	(	const std::string &	datasetName,
		void *	values,
		unsigned long long *	numValuesInEachDimension,
		unsigned long long *	offsetInEachDimension,
		const unsigned int &	numDimensions,
		const int &	datatype
	)

protected

Find the array associated with datasetName and read a portion of it.

Parameters

datasetName	The name of the array (potentially with multi dimensions).
values	1d array output of double values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to read. They are ordered from fastest index to slowest index.
offsetValuesInEachDimension	Offset values in each dimension of the array to read. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to read.
datatype	The hdf datatype of the values to read. If the values are not stored in this particular datatype, then hdf library will try to do a conversion.

void COMMON_NS::HdfProxy::readArrayNdOfValues	(	const std::string &	datasetName,
		void *	values,
		unsigned long long *	blockCountPerDimension,
		unsigned long long *	offsetInEachDimension,
		unsigned long long *	strideInEachDimension,
		unsigned long long *	blockSizeInEachDimension,
		const unsigned int &	numDimensions,
		const int &	datatype
	)

protected

Find the array associated with datasetName and read from it.

Parameters

datasetName	The name of the array (potentially with multi dimensions).
values	1d array output of values ordered firstly by fastest direction.
blockCountPerDimension	Number of blocks to select from the dataspace, in each dimension. They are ordered from fastest index to slowest index.
offsetInEachDimension	Offset values in each dimension of the array to read. They are ordered from fastest index to slowest index.
strideInEachDimension	Number of elements to move from one block to another in each dimension. They are ordered from fastest index to slowest index.
blockSizeInEachDimension	Size of selected blocks in each dimension. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to read.
datatype	The hdf datatype of the values to read. If the values are not stored in this particular datatype, then hdf library will try to do a conversion.

void HdfProxy::readArrayNdOfValues	(	int	dataset,
		int	filespace,
		void *	values,
		unsigned long long	slabSize,
		const int &	datatype
	)

protected

Considering a given dataset, read the double values corresponding to an existing selected region.

Parameters

dataset	ID of the dataset to read from.
filespace	ID of the selected region.
values	1d array output of double values ordered firstly by fastest direction.
slabSize	Number of values to read.
datatype	The hdf datatype of the values to read. If the values are not stored in this particular datatype, then hdf library will try to do a conversion.

double HdfProxy::readDoubleAttribute	(	const std::string &	obj_name,
		const std::string &	attr_name
	)		const

virtual

Read a double which is stored as an HDF attribute in a file, group or dataset

Parameters

obj_name use '.' if the attribute to read is on the file otherwise the full path

Implements COMMON_NS::AbstractHdfProxy.

LONG64 HdfProxy::readLongAttribute	(	const std::string &	obj_name,
		const std::string &	attr_name
	)		const

virtual

Read a long which is stored as an HDF attribute in a file, group or dataset

Parameters

obj_name use '.' if the attribute to read is on the file otherwise the full path

Implements COMMON_NS::AbstractHdfProxy.

std::string HdfProxy::readStringAttribute	(	const std::string &	obj_name,
		const std::string &	attr_name
	)		const

virtual

Read a string which is stored as an HDF attribute in a file, group or dataset

Parameters

obj_name use '.' if the attribute to read is on the file otherwise the full path

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::selectArrayNdOfValues	(	const std::string &	datasetName,
		unsigned long long *	blockCountPerDimension,
		unsigned long long *	offsetInEachDimension,
		unsigned long long *	strideInEachDimension,
		unsigned long long *	blockSizeInEachDimension,
		const unsigned int &	numDimensions,
		bool	newSelection,
		int &	dataset,
		int &	filespace
	)

protectedvirtual

Considering a given dataset, this method selects an hyperslab region to add to an existing selected region or to add to a new selected region. The dataset is not closed within this method.

Parameters

datasetName	The name of the array (potentially with multi dimensions).
blockCountPerDimension	Number of blocks to select from the dataspace, in each dimension. They are ordered from fastest index to slowest index.
offsetInEachDimension	Offset values in each dimension of the array to read. They are ordered from fastest index to slowest index.
strideInEachDimension	Number of elements to move from one block to another in each dimension. They are ordered from fastest index to slowest index.
blockSizeInEachDimension	Size of selected blocks in each dimension. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to select.
newSelection	true if creating a new selected region else false.
dataset	Input dataset ID if adding a new hyperslab region to an existing selected region, output dataset ID if creating a new selected region.
filespace	Input selected region ID if adding a new hyperslab region to an existing selected region, output selected region ID if creating a new selected region.

Implements COMMON_NS::AbstractHdfProxy.

void COMMON_NS::HdfProxy::setCompressionLevel ( const unsigned int & newCompressionLevel )

inlinevirtual

Set the new compression level which will be used for all data to be written

Parameters

compressionLevel Lower compression levels are faster but result in less compression. Range [0..9] is allowed.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeArrayNd	(	const std::string &	groupName,
		const std::string &	name,
		const int &	datatype,
		void *	values,
		unsigned long long *	numValuesInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Write an array (potentially with multi dimensions) of a specific datatype into the HDF file by means of a single dataset.

Parameters

groupName	The name of the group where to create the array of values. This name must not contain '/' character and must be directly contained in RESQML group.
name	The name of the array (potentially with multi dimensions) of a specific datatype hdf dataset. It must not already exist.
datatype	The specific datatype of the values to write.
values	1d array of specific datatype ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to write. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to write

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeArrayNdOfCharValues	(	const std::string &	groupName,
		const std::string &	name,
		char *	intValues,
		unsigned long long *	numValuesInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Write an array (potentially with multi dimensions) of char values into the HDF file by means of a single dataset.

Parameters

groupName	The name of the group where to create the array of int values. This name must not contain '/' character and must be directly contained in RESQML group.
name	The name of the array of int values hdf dataset. It must not already exist.
intValues	1d array of char values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to write. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to write

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeArrayNdOfDoubleValues	(	const std::string &	groupName,
		const std::string &	name,
		double *	dblValues,
		unsigned long long *	numValuesInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Write an array (potentially with multi dimensions) of double values into the HDF file by means of a single dataset.

Parameters

groupName	The name of the group where to create the array of double values. This name must not contain '/' character and must be directly contained in RESQML group.
name	The name of the array of double values hdf dataset. It must not already exist.
dblValues	1d array of double values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to write. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to write

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeArrayNdOfGSoapULong64Values	(	const std::string &	groupName,
		const std::string &	name,
		ULONG64 *	ulong64Values,
		unsigned long long *	numValuesInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Write an array (potentially with multi dimensions) of gSoap unsigned long 64 values into the HDF file by means of a single dataset.

Parameters

groupName	The name of the group where to create the array of int values. This name must not contain '/' character and must be directly contained in RESQML group.
name	The name of the array of gSoap unsigned long 64 values hdf dataset. It must not already exist.
ulong64Values	1d array of gSoap unsigned long 64 values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to write. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to write

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeArrayNdOfIntValues	(	const std::string &	groupName,
		const std::string &	name,
		int *	intValues,
		unsigned long long *	numValuesInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Write an array (potentially with multi dimensions) of int values into the HDF file by means of a single dataset.

Parameters

groupName	The name of the group where to create the array of int values. This name must not contain '/' character and must be directly contained in RESQML group.
name	The name of the array of int values hdf dataset. It must not already exist.
intValues	1d array of int values ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to write. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to write

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeArrayNdSlab	(	const std::string &	groupName,
		const std::string &	name,
		const int &	datatype,
		void *	values,
		unsigned long long *	numValuesInEachDimension,
		unsigned long long *	offsetValuesInEachDimension,
		const unsigned int &	numDimensions
	)

virtual

Find the array associated with groupName and name and write to it.

Parameters

groupName	The name of the group associated with the array.
name	The name of the array (potentially with multi dimensions).
datatype	The specific datatype of the values to write.
values	1d array of specific datatype ordered firstly by fastest direction.
numValuesInEachDimension	Number of values in each dimension of the array to write. They are ordered from fastest index to slowest index.
offsetValuesInEachDimension	Offset values in each dimension of the array to write. They are ordered from fastest index to slowest index.
numDimensions	The number of the dimensions of the array to write.

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeDatasetAttribute	(	const std::string &	datasetName,
		const std::string &	attributeName,
		const std::vector< std::string > &	values
	)

virtual

Write a single attribute which contain an array of strings

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeDatasetAttributes	(	const std::string &	datasetName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< std::string > &	values
	)

virtual

Write some string attributes into a dataset

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeDatasetAttributes	(	const std::string &	datasetName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< double > &	values
	)

virtual

Write some double attributes into a dataset

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeDatasetAttributes	(	const std::string &	datasetName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< int > &	values
	)

virtual

Write some int attributes into a dataset

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeGroupAttribute	(	const std::string &	groupName,
		const std::string &	attributeName,
		const std::vector< std::string > &	values
	)

virtual

Write a single attribute which contain an array of strings

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeGroupAttributes	(	const std::string &	groupName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< std::string > &	values
	)

virtual

Write some string attributes into a group

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeGroupAttributes	(	const std::string &	groupName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< double > &	values
	)

virtual

Write some double attributes into a group

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeGroupAttributes	(	const std::string &	groupName,
		const std::vector< std::string > &	attributeNames,
		const std::vector< int > &	values
	)

virtual

Write some int attributes into a group

Implements COMMON_NS::AbstractHdfProxy.

void HdfProxy::writeItemizedListOfList	(	const std::string &	groupName,
		const std::string &	name,
		const int &	cumulativeLengthDatatype,
		void *	cumulativeLength,
		const unsigned long long &	cumulativeLengthSize,
		const int &	elementsDatatype,
		void *	elements,
		const unsigned long long &	elementsSize
	)

virtual

Write an itemized list of list into the HDF file by means of a single group containing 2 datasets.

Parameters

groupName	The name of the group where to create the itemized list of list. This name must not contain '/' character and must be directly contained in RESQML group.
name	The name of the itemized list of list hdf group.
cumulativeLengthDatatype	The datatype of the cumulative length to write.
cumulativeLength	1d array of positive integers containing for each list the sum of all the previous list lengths including the current one
cumulativeLengthSize	Size of the cumulativeLength array.
elementsDatatype	The datatype of the elements to write.
elements	1d array of elements containing the aggregation of individual list content.
elementsSize	Size of the elements array.

Implements COMMON_NS::AbstractHdfProxy.

The documentation for this class was generated from the following files:

C:/Users/Philippe/dev/fesapiEnv/fesapi/src/common/HdfProxy.h
C:/Users/Philippe/dev/fesapiEnv/fesapi/src/common/HdfProxy.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation
